Product Model

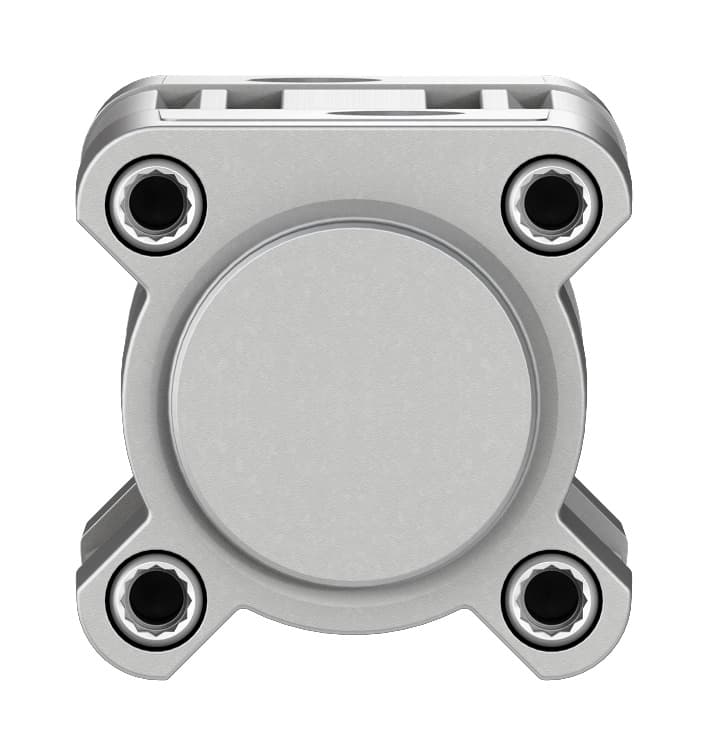

dsbc-40-25-ppsa-n3
Key Features
- 1The DSBC-40-25-PPSA-N3 features a corrosion resistance class of CRC 2, ensuring moderate corrosion stress and suitability for indoor applications with potential condensation.
- 2Equipped with a proximity switch for position detection, this cylinder allows for accurate monitoring of its position, enhancing control and precision in various applications.
- 3Operating between -20°C and 80°C, the DSBC-40-25-PPSA-N3 is versatile for use in a variety of industrial environments, from cold storage to moderate temperature settings.
- 4The cylinder includes self-adjusting pneumatic end-position cushioning, ensuring smooth operation and reducing wear on the piston rod.
- 5Designed for use with compressed air to ISO 8573-1:2010 [7:4:4], this cylinder is ideal for applications requiring reliable pneumatic operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 25mm | Piston diameter | 40 mm |
| Piston rod thread | M12x1.25 | Cushioning | Self-adjusting pneumatic end-position cushioning |
| Mounting position | Any | Conforms to standard | ISO 15552 |
| Piston rod end | External thread | Structural design | Piston Piston rod Profile barrel |
| Position sensing | For proximity sensor | Symbol | 00992970 |
| Variants | Piston rod at one end | Operating pressure | 0.6bar 12bar |
| Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 6 according to ISO 14644-1 |
| Ambient temperature | -20°C 80°C | Impact energy in the end positions | 0.7J |
| Cushioning length | 19mm | Theoretical force at 6 bar, retracting | 633N |
| Theoretical force at 6 bar, advancing | 754N | Moving mass at 0?mm stroke | 205g |
| Additional moving mass per 10?mm stroke | 16g | Basic weight with 0?mm stroke | 740g |
| Additional weight per 10?mm stroke | 37g | Type of mounting | Optionally: With internal thread With accessories |
| Pneumatic connection | G1/4 | Note on materials | RoHS-compliant |
| Cover material | Die-cast aluminum, coated | Piston seal material | TPE-U(PU) |
| Material of piston | Wrought aluminum alloy | Piston rod material | High-alloy steel |
| Piston rod wiper material | TPE-U(PU) | Buffer seal material | TPE-U(PU) |
| Cushion piston material | POM | Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized |
| Nut material | Steel, galvanized | Material of bearing | POM |
| Flange screws material | Steel, galvanized | Manufacturer ID | 1376903 |
Specifications may be subject to change without notice
