Product Model
dsbc-32-70-d3-ppva-n3
Key Features

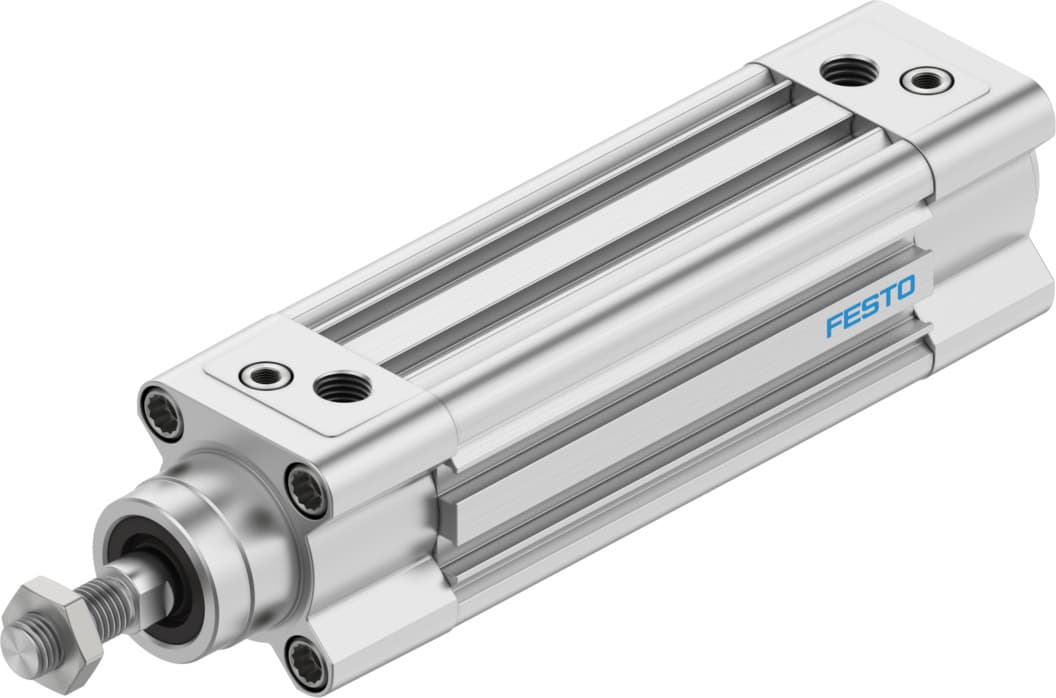

- 1The Festo DSBC-32-70-D3-PPVA-N3 features self-adjusting pneumatic end-position cushioning, ensuring optimal performance under varying load and speed conditions, saving time during commissioning.
- 2This cylinder conforms to the ISO 15552 standard, providing a standardized profile with two sensor slots, ensuring compatibility with various industrial systems.
- 3The D3 feature allows for proximity switches to be mounted on three sides of the drive, enabling precise piston position detection, which is particularly beneficial in applications like manufacturing lithium-ion batteries.
- 4The cylinder offers a wide range of mounting options, making it adaptable to various installation scenarios, including those requiring specific accessories like bellows kits.
- 5With a corrosion resistance class of CRC 2, this cylinder is designed to withstand moderate corrosion stress, ensuring reliability in harsh industrial environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 70mm | Piston diameter | 32 mm |
| Piston rod thread | M10x1.25 | Cushioning | Pneumatic cushioning, adjustable at both ends |
| Mounting position | Any | Conforms to standard | ISO 15552 |
| Piston rod end | External thread | Structural design | Piston Piston rod Profile barrel |
| Position sensing | For proximity sensor | Symbol | 00991235 |
| Variants | Piston rod at one end | Operating pressure | 0.8bar 12bar |
| Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 80°C |
| Impact energy in the end positions | 0.4J | Cushioning length | 17mm |
| Theoretical force at 6 bar, retracting | 415N | Theoretical force at 6 bar, advancing | 483N |
| Moving mass at 0?mm stroke | 110g | Additional moving mass per 10?mm stroke | 9g |
| Basic weight with 0?mm stroke | 480g | Additional weight per 10?mm stroke | 31g |
| Type of mounting | Optionally: With internal thread With accessories | Pneumatic connection | G1/8 |
| Note on materials | RoHS-compliant | Cover material | Die-cast aluminum, coated |
| Piston seal material | TPE-U(PU) | Material of piston | Wrought aluminum alloy |
| Piston rod material | High-alloy steel | Piston rod wiper material | TPE-U(PU) |
| Buffer seal material | TPE-U(PU) | Cushion piston material | POM |
| Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized | Nut material | Steel, galvanized |
| Rod wiper material | TPE-E | Material of bearing | Metal polymer compound |
| Flange screws material | Steel, galvanized | Manufacturer ID | 3656517 |
Specifications may be subject to change without notice
