Product Model

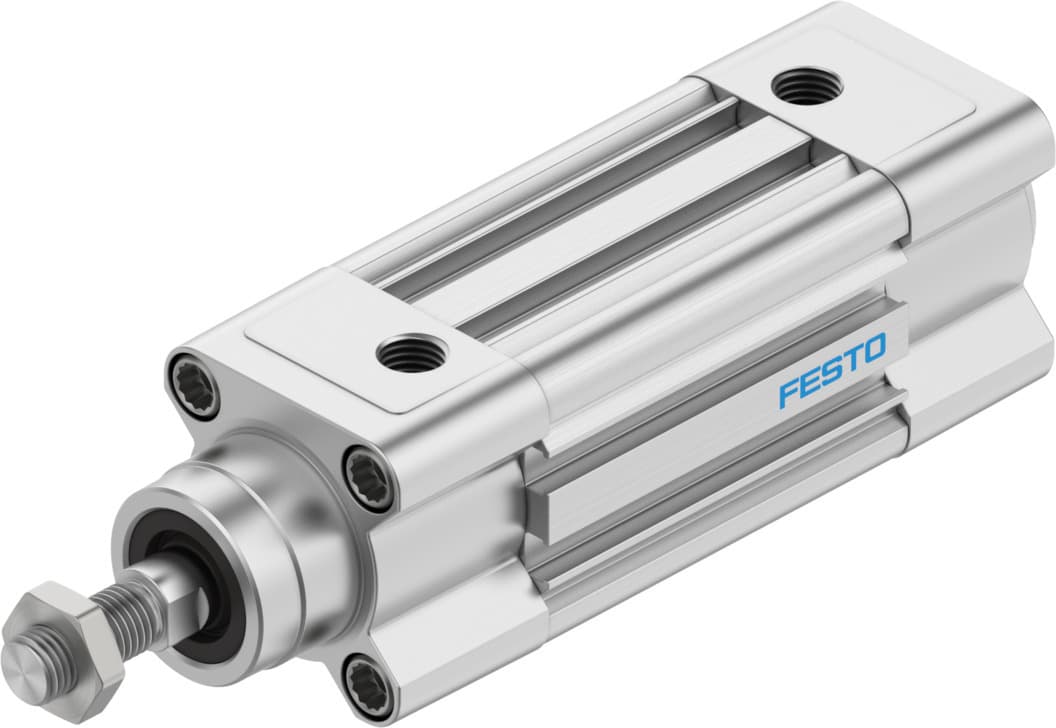

dsbc-32-30-d3-ppsa-n3
Key Features
- 1The Festo DSBC-32-30-D3-PPSA-N3 features self-adjusting pneumatic end-position cushioning, which saves time during commissioning and adapts optimally to load and speed changes.
- 2This cylinder is designed to ISO 15552 standards, ensuring compatibility with a wide range of mounting options and applications.
- 3With sensor slots on three sides (feature D3), the piston position can be sensed on three sides of the drive, enhancing position sensing and force control capabilities.
- 4The DSBC series offers a comprehensive range of mounting accessories, making it suitable for various installation types and customized applications.
- 5Made from durable materials, this cylinder ensures reliable performance in industrial environments, with options for corrosion protection and temperature range customization.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 30mm | Piston diameter | 32 mm |
| Piston rod thread | M10x1.25 | Cushioning | Self-adjusting pneumatic end-position cushioning |
| Mounting position | Any | Conforms to standard | ISO 15552 |
| Piston rod end | External thread | Structural design | Piston Piston rod Profile barrel |
| Position sensing | For proximity sensor | Symbol | 00992970 |
| Variants | Piston rod at one end | Operating pressure | 0.8bar 12bar |
| Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 80°C |
| Impact energy in the end positions | 0.4J | Cushioning length | 17mm |
| Theoretical force at 6 bar, retracting | 415N | Theoretical force at 6 bar, advancing | 483N |
| Moving mass at 0?mm stroke | 110g | Additional moving mass per 10?mm stroke | 9g |
| Basic weight with 0?mm stroke | 480g | Additional weight per 10?mm stroke | 31g |
| Type of mounting | Optionally: With internal thread With accessories | Pneumatic connection | G1/8 |
| Note on materials | RoHS-compliant | Cover material | Die-cast aluminum, coated |
| Piston seal material | TPE-U(PU) | Material of piston | Wrought aluminum alloy |
| Piston rod material | High-alloy steel | Piston rod wiper material | TPE-U(PU) |
| Buffer seal material | TPE-U(PU) | Cushion piston material | POM |
| Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized | Nut material | Steel, galvanized |
| Rod wiper material | TPE-E | Material of bearing | Metal polymer compound |
| Flange screws material | Steel, galvanized | Manufacturer ID | 3659376 |
Specifications may be subject to change without notice
