Product Model

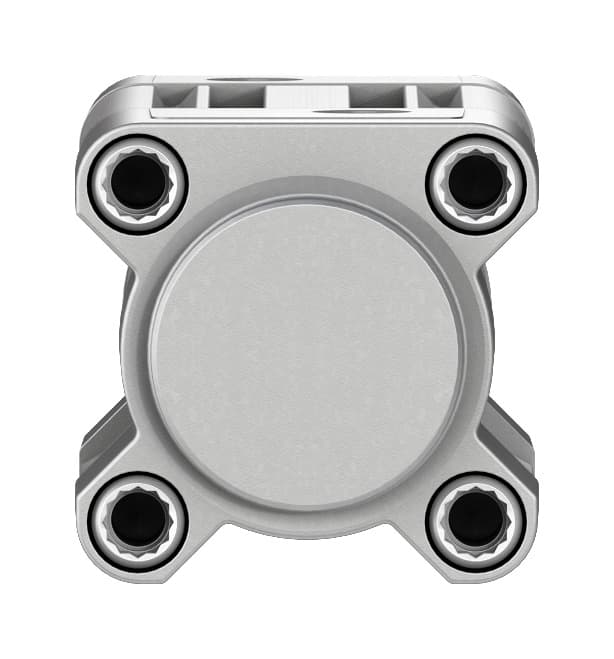

dsbc-32-25-ppsa-n3
Key Features
- 1The Festo DSBC-32-25-PPSA-N3 pneumatic cylinder offers precise control and reliable operation, making it ideal for demanding industrial applications.
- 2With a stroke range of 1 mm to 2800 mm, this cylinder provides flexibility for various automation tasks, from small-scale to large-scale operations.
- 3The cylinder conforms to the ISO 15552 standard, ensuring compatibility and interoperability with other Festo components and systems.
- 4Equipped with self-adjusting pneumatic end-position cushioning, the DSBC-32-25-PPSA-N3 ensures smooth operation and reduces wear on the cylinder.
- 5Made from high-quality materials such as wrought aluminum alloy for the piston and high-alloy steel for the piston rod, this cylinder is built to withstand harsh industrial environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 25mm | Piston diameter | 32 mm |
| Piston rod thread | M10x1.25 | Cushioning | Self-adjusting pneumatic end-position cushioning |
| Mounting position | Any | Conforms to standard | ISO 15552 |
| Piston rod end | External thread | Structural design | Piston Piston rod Profile barrel |
| Position sensing | For proximity sensor | Symbol | 00992970 |
| Variants | Piston rod at one end | Operating pressure | 0.6bar 12bar |
| Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 6 according to ISO 14644-1 |
| Ambient temperature | -20°C 80°C | Impact energy in the end positions | 0.4J |
| Cushioning length | 17mm | Theoretical force at 6 bar, retracting | 415N |
| Theoretical force at 6 bar, advancing | 483N | Moving mass at 0?mm stroke | 110g |
| Additional moving mass per 10?mm stroke | 9g | Basic weight with 0?mm stroke | 465g |
| Additional weight per 10?mm stroke | 27g | Type of mounting | Optionally: With internal thread With accessories |
| Pneumatic connection | G1/8 | Note on materials | RoHS-compliant |
| Cover material | Die-cast aluminum, coated | Piston seal material | TPE-U(PU) |
| Material of piston | Wrought aluminum alloy | Piston rod material | High-alloy steel |
| Piston rod wiper material | TPE-U(PU) | Buffer seal material | TPE-U(PU) |
| Cushion piston material | POM | Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized |
| Nut material | Steel, galvanized | Material of bearing | POM |
| Flange screws material | Steel, galvanized | Manufacturer ID | 1376467 |
Specifications may be subject to change without notice
