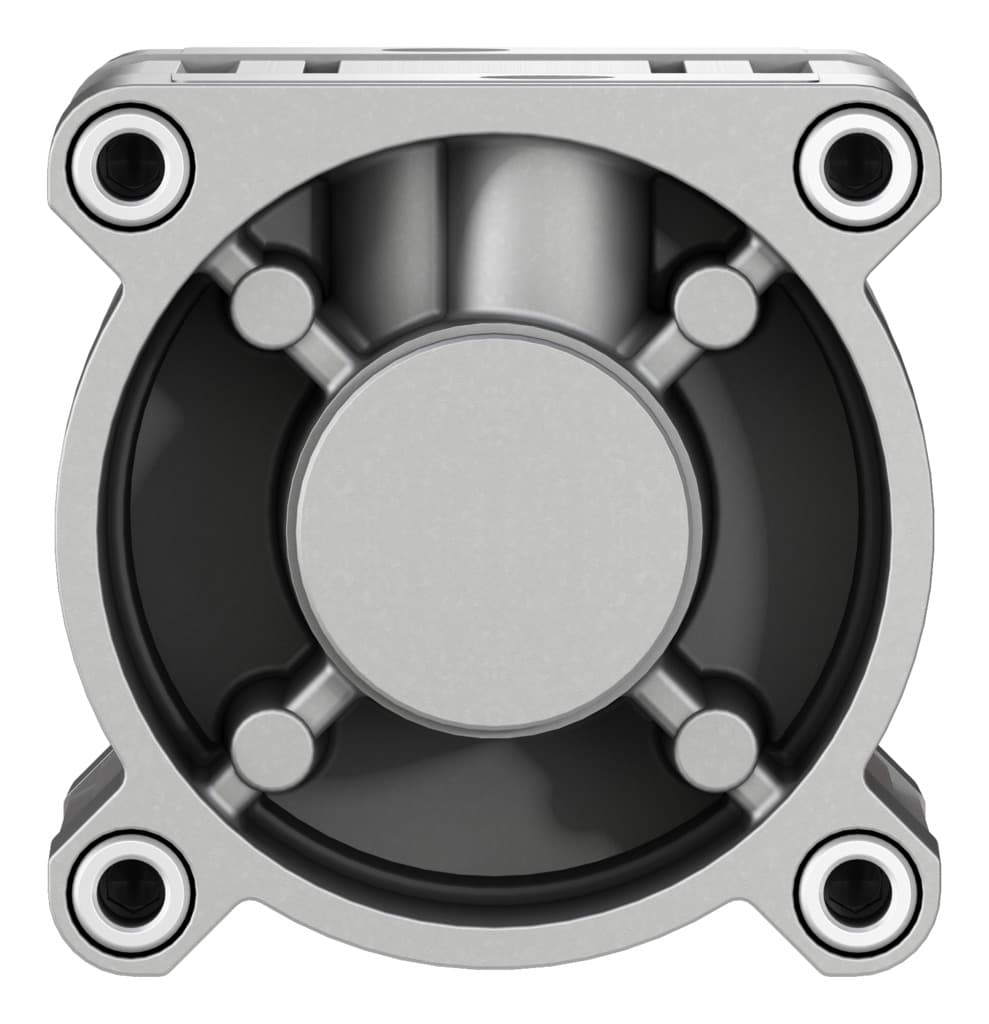

Product Model
dsbc-125- -ppsa-n3
Key Features
- 1The Festo DSBC-125-PPSA-N3 ISO cylinder is designed for high-precision applications, ensuring reliable performance and durability in various industrial settings.
- 2Equipped with self-adjusting pneumatic end-position cushioning, this cylinder provides smooth and controlled movements, reducing wear and tear on the components.
- 3Conforming to the ISO 15552 standard, this cylinder ensures compatibility and reliability in a wide range of industrial environments.
- 4Designed for double-acting operation, the DSBC-125-PPSA-N3 can handle both forward and reverse movements efficiently, making it versatile for various applications.
- 5Built with high-quality materials such as die-cast aluminum, wrought aluminum alloy, and high-alloy steel, this cylinder offers robust construction and resistance to corrosion, ensuring long-lasting performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 1mm 2800mm | Piston diameter | 125 mm |
| Piston rod thread | M27x2 | Cushioning | Self-adjusting pneumatic end-position cushioning |
| Mounting position | Any | Conforms to standard | ISO 15552 |
| Piston rod end | External thread | Structural design | Piston Piston rod Profile barrel |
| Position sensing | For proximity sensor | Symbol | 00992970 |
| Variants | Piston rod at one end | Operating pressure | 0.2bar 10bar |
| Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 80°C |
| Impact energy in the end positions | 3.3J | Cushioning length | 45mm |
| Theoretical force at 6 bar, retracting | 6881N | Theoretical force at 6 bar, advancing | 7363N |
| Moving mass at 0?mm stroke | 2245g | Additional moving mass per 10?mm stroke | 63g |
| Basic weight with 0?mm stroke | 6611g | Additional weight per 10?mm stroke | 151g |
| Type of mounting | Optionally: With internal thread With accessories | Pneumatic connection | G1/2 |
| Note on materials | RoHS-compliant | Cover material | Die-cast aluminum, coated |
| Piston seal material | TPE-U(PU) | Material of piston | Wrought aluminum alloy |
| Piston rod material | High-alloy steel | Piston rod wiper material | TPE-U(PU) |
| Buffer seal material | TPE-U(PU) | Cushion piston material | POM |
| Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized | Nut material | Steel, galvanized |
| Material of bearing | POM | Flange screws material | Steel, galvanized |
| Manufacturer ID | 1755619 |
