Product Model
dpzj-10-10-p-a-s2
Key Features

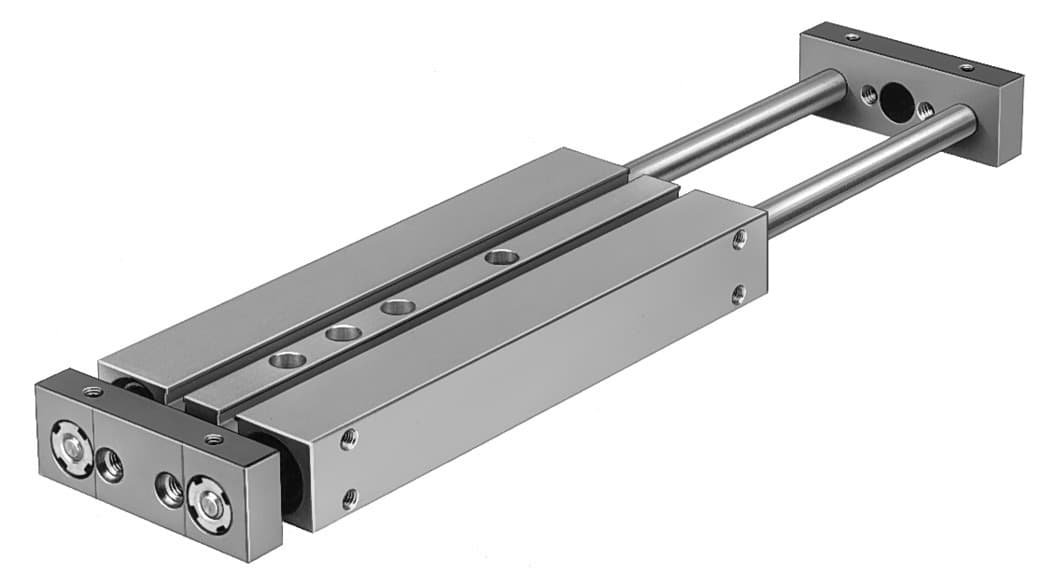

- 1The Festo DPZJ-10-10-P-A-S2 twin cylinder offers a stroke length of 10 mm, providing precise control and movement in pneumatic systems.
- 2Equipped with elastic cushioning rings/plates at both ends, this cylinder ensures smooth operation and reduces wear and tear.
- 3The DPZJ-10-10-P-A-S2 features a recirculating ball bearing guide for enhanced precision and durability, making it suitable for high-performance applications.
- 4This twin cylinder operates at pressures between 1 to 10 bar, allowing for flexible integration into various pneumatic systems.
- 5With a corrosion resistance class of CRC 2, the DPZJ-10-10-P-A-S2 is designed for moderate corrosion stress, ensuring reliability in industrial environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 10mm | Adjustable end position range/length | 10mm |
| Piston diameter | 10 mm | Drive unit operating mode | Yoke |
| Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
| Guide | Sliding guide | Structural design | Guide |
| Position sensing | For proximity sensor | Symbol | 00991243 |
| Variants | Through piston rod | Operating pressure | 2.5bar 10bar |
| Max. speed | 1m/s | Mode of operation | Double-acting |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20°C 80°C | Impact energy in the end positions | 0.08J |
| Theoretical force at 6 bar, retracting | 60N | Theoretical force at 6 bar, advancing | 60N |
| Alternative connections | See product drawing | Pneumatic connection | M5 |
| Cover material | Wrought aluminum alloy | Seals material | NBR |
| Housing material | Wrought aluminum alloy | Piston rod material | High-alloy stainless steel |
| Manufacturer ID | 159940 |
Specifications may be subject to change without notice
