Product Model

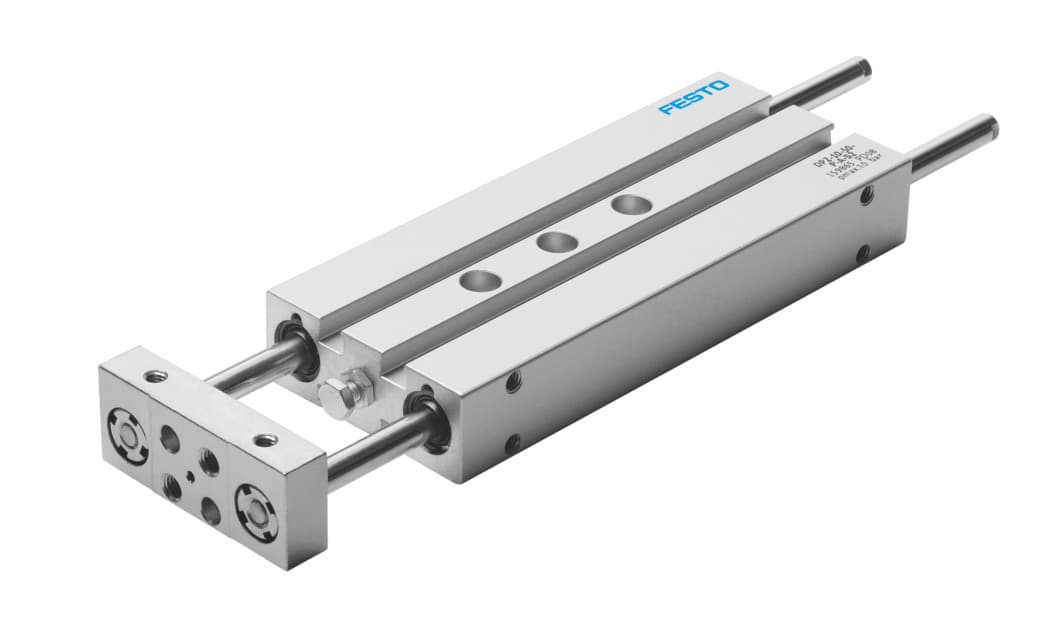

dpz-10-10-p-a-kf-s2

Manufacturer

Festo

Key Features

1The DPZ-10-10-P-A-KF-S2 is built with high-quality materials, including wrought aluminum alloy for the cover and housing, and case-hardened steel for the piston rod.
2This twin cylinder operates in double-acting mode, allowing for both forward and backward motion with equal force, making it versatile for various applications.
3Equipped with proximity switches for precise position detection, ensuring accurate control and reliability in your pneumatic system.
4The cylinder features an adjustable end-position range of 10mm, allowing for flexible setup and customization to meet specific requirements.
5With a corrosion resistance class of CRC 0 - No corrosion stress, this cylinder is designed to withstand harsh environments and maintain performance over time.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	10mm	Adjustable end position range/length	10mm
Piston diameter	10 mm	Drive unit operating mode	Yoke
Cushioning	Elastic cushioning rings/pads at both ends	Mounting position	Any
Guide	Recirculating ball bearing guide	Structural design	Guide
Position sensing	For proximity sensor	Symbol	00991915
Variants	Through piston rod	Operating pressure	2.5bar 10bar
Mode of operation	Double-acting	Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media	Operation with oil lubrication possible (required for further use)	Corrosion resistance class (CRC)	0 - No corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L	Ambient temperature	-20°C 80°C
Impact energy in the end positions	0.08J	Theoretical force at 6 bar, retracting	60N
Theoretical force at 6 bar, advancing	60N	Alternative connections	See product drawing
Pneumatic connection	M5	Cover material	Wrought aluminum alloy
Seals material	NBR	Housing material	Wrought aluminum alloy
Piston rod material	Case-hardened steel	Manufacturer ID	162006

Specifications may be subject to change without notice
