Product Model
dpdm-q-25-10-p-pa
Key Features

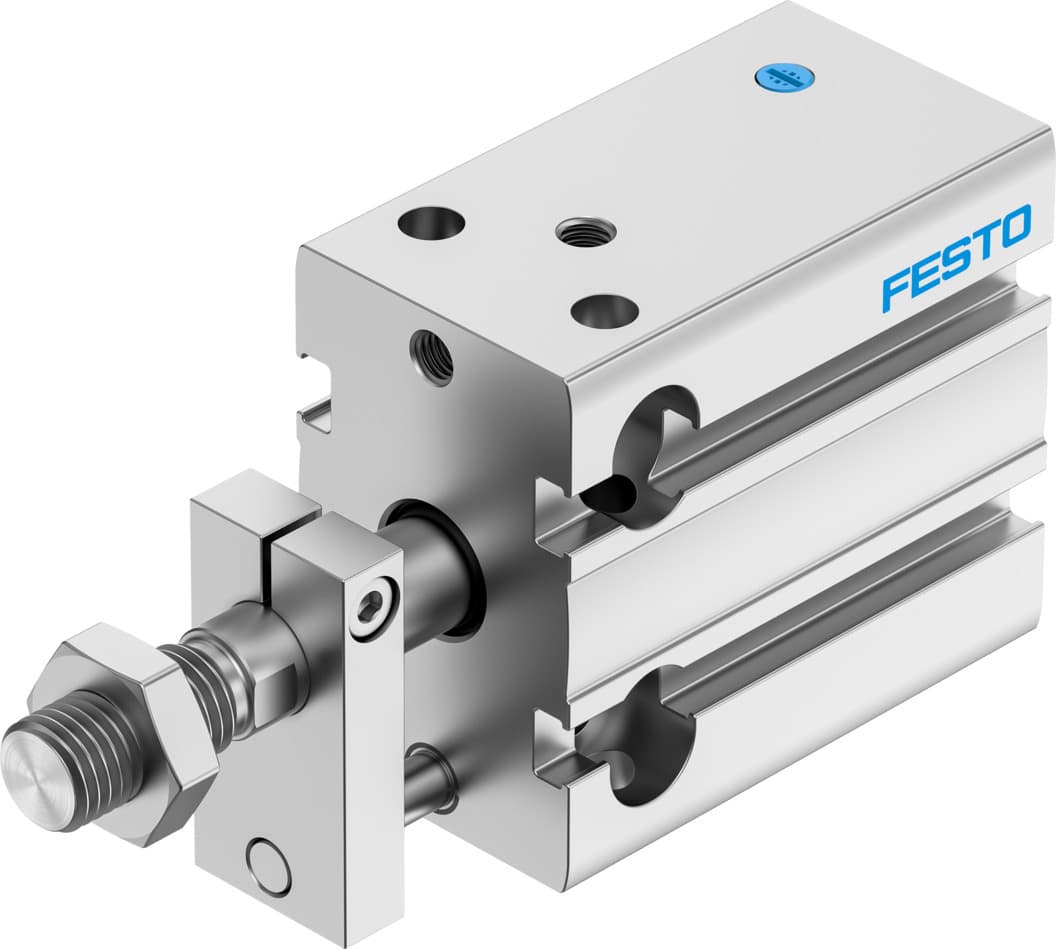

- 1The Festo DPDM-Q-25-10-P-PA features a compact design with a stroke of 10 mm and a piston diameter of 25 mm, making it ideal for space-constrained applications.
- 2Equipped with elastic cushioning rings/plates at both ends, this cylinder ensures smooth operation and reduces wear and tear.
- 3The cylinder offers optional mounting positions, allowing for flexible installation options to suit various application requirements.
- 4Designed to operate under pressures ranging from 1.5 to 8 bar, this cylinder is suitable for demanding pneumatic tasks.
- 5Constructed from high-alloy stainless steel for the piston rod and anodized wrought aluminum alloy for the housing, ensuring durability and resistance to corrosion.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 10mm | Piston diameter | 25 mm |
| Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
| Mode of operation | Single-acting Pulling | Structural design | Piston Piston rod Profile barrel |
| Position sensing | For proximity sensor | Symbol | 00991733 |
| Variants | Piston rod at one end | Protection against torsion/guide | Guide rod with yoke |
| Operating pressure | 1.5bar 8bar | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L | Cleanroom class | Class 6 according to ISO 14644-1 |
| Ambient temperature | -10°C 80°C | Theoretical force at 6 bar, retracting | 221N |
| Theoretical force at 6 bar, advancing | 221N | Moving mass at 0?mm stroke | 76g |
| Additional moving mass per 10?mm stroke | 8g | Basic weight with 0?mm stroke | 226g |
| Additional weight per 10?mm stroke | 35g | Type of mounting | Optionally: With through-hole With internal thread |
| Pneumatic connection | M5 | Note on materials | RoHS-compliant |
| Cover material | Wrought aluminum alloy | Seals material | TPE-U(PU) |
| Housing material | Wrought aluminum alloy, anodized | Piston rod material | High-alloy stainless steel |
| Manufacturer ID | 4840839 |
Specifications may be subject to change without notice
