Product Model
dpdm-32-5-pa
Key Features

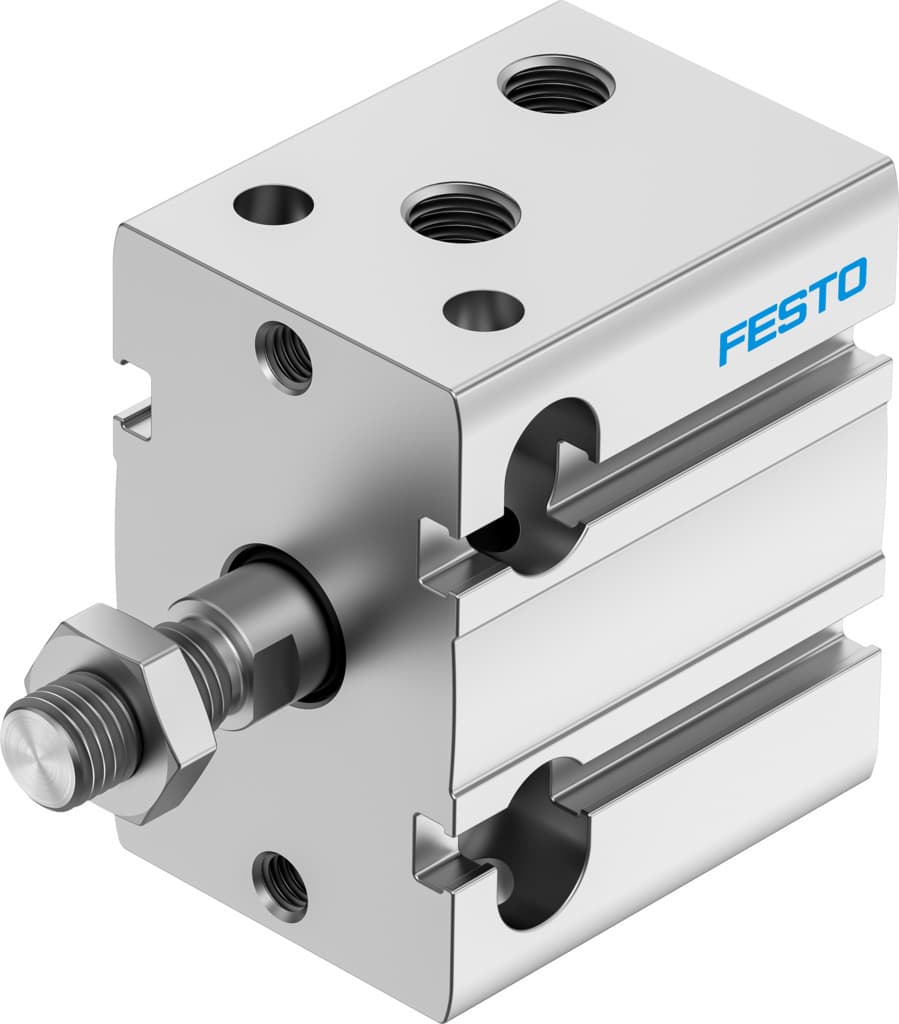

- 1The Festo DPDM-32-5-PA compact pneumatic cylinder boasts a 32mm bore and a 5mm stroke, making it perfect for applications requiring high precision and minimal space.
- 2Equipped with elastic cushioning rings/plates at both ends, this cylinder ensures smooth operation and reduces wear and tear.
- 3Designed for double-acting mode, the DPDM-32-5-PA can operate in both directions, enhancing its versatility in various industrial settings.
- 4The cylinder is compatible with compressed air to ISO 8573-1:2010 and can operate within a temperature range of -10°C to 80°C, making it suitable for a wide range of environments.
- 5Constructed from high-quality materials, including anodized wrought aluminum alloy for the housing and high-alloy stainless steel for the piston rod, ensuring durability and corrosion resistance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 5mm | Piston diameter | 32 mm |
| Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
| Mode of operation | Double-acting | Structural design | Piston Piston rod Profile barrel |
| Position sensing | For proximity sensor | Symbol | 00991217 |
| Variants | Piston rod at one end | Operating pressure | 1bar 8bar |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
| Cleanroom class | Class 6 according to ISO 14644-1 | Ambient temperature | -10°C 80°C |
| Theoretical force at 6 bar | 483N | Theoretical force at 6 bar, retracting | 415N |
| Theoretical force at 6 bar, advancing | 483N | Moving mass at 0?mm stroke | 85g |
| Additional moving mass per 10?mm stroke | 9g | Basic weight with 0?mm stroke | 307g |
| Additional weight per 10?mm stroke | 51g | Type of mounting | Optionally: With through-hole With internal thread |
| Pneumatic connection | G1/8 | Note on materials | RoHS-compliant |
| Cover material | Wrought aluminum alloy | Seals material | TPE-U(PU) |
| Housing material | Wrought aluminum alloy, anodized | Piston rod material | High-alloy stainless steel |
| Manufacturer ID | 4828435 |
Specifications may be subject to change without notice
