Product Model
dpdm-16-40-pa

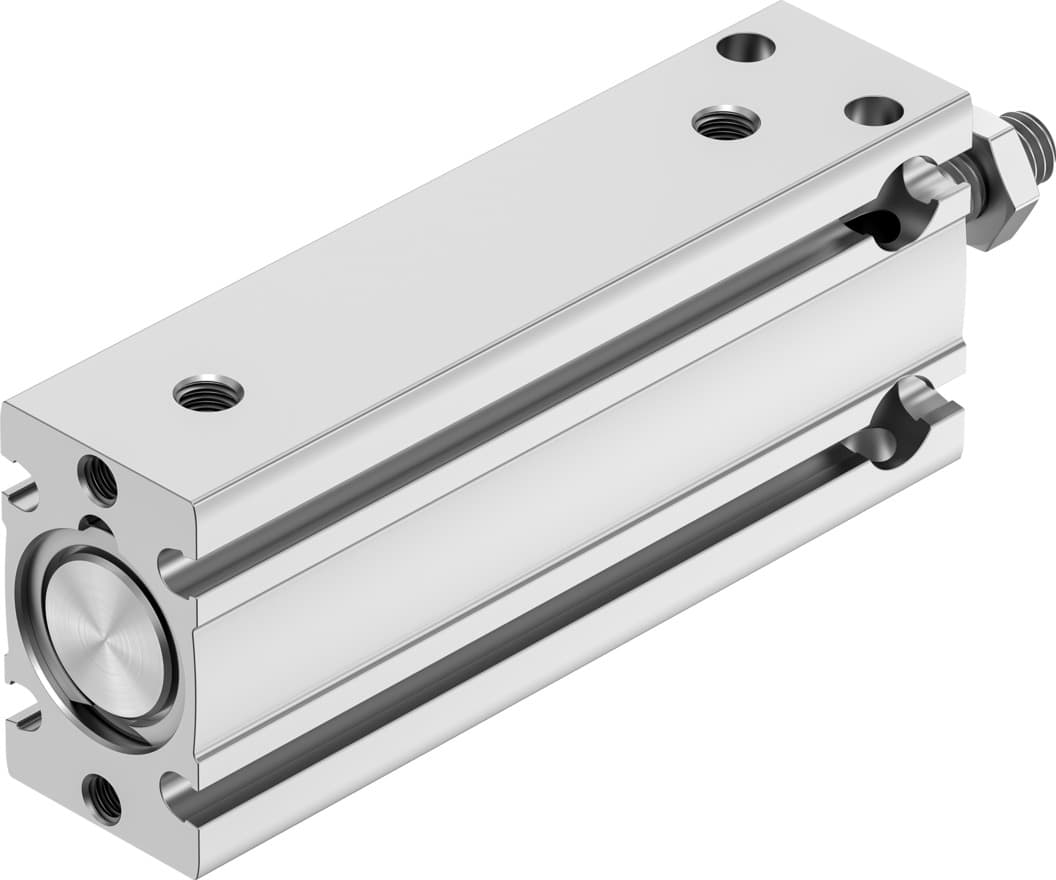

Key Features
- 1The Festo DPDM-16-40-PA is built with high-alloy stainless steel piston rods and anodized aluminum alloy housing, ensuring durability and resistance to corrosion.
- 2Equipped with elastic silencer rings at both ends, this compact cylinder provides smooth operation and reduced noise levels, making it suitable for various industrial applications.
- 3The DPDM-16-40-PA offers flexible mounting options, allowing for arbitrary installation positions, which enhances its adaptability in different setup configurations.
- 4Designed for double-acting operation with compressed air to ISO 8573-1:2010 standards, this cylinder ensures reliable performance under a wide range of operating pressures (1.5 to 8 bar).
- 5The DPDM-16-40-PA supports position detection via proximity switches, enabling precise control and monitoring of the cylinder's movement, which is crucial for automated systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 40mm | Piston diameter | 16 mm |
| Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
| Mode of operation | Double-acting | Structural design | Piston Piston rod Profile barrel |
| Position sensing | For proximity sensor | Symbol | 00991217 |
| Variants | Piston rod at one end | Operating pressure | 1.5bar 8bar |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
| Cleanroom class | Class 6 according to ISO 14644-1 | Ambient temperature | -10°C 80°C |
| Theoretical force at 6 bar | 121N | Theoretical force at 6 bar, retracting | 104N |
| Theoretical force at 6 bar, advancing | 121N | Moving mass at 0?mm stroke | 18g |
| Additional moving mass per 10?mm stroke | 2.3g | Basic weight with 0?mm stroke | 66g |
| Additional weight per 10?mm stroke | 13g | Type of mounting | Optionally: With through-hole With internal thread |
| Pneumatic connection | M5 | Note on materials | RoHS-compliant |
| Cover material | Wrought aluminum alloy | Seals material | TPE-U(PU) |
| Housing material | Wrought aluminum alloy, anodized | Piston rod material | High-alloy stainless steel |
| Manufacturer ID | 4833191 |
Specifications may be subject to change without notice
