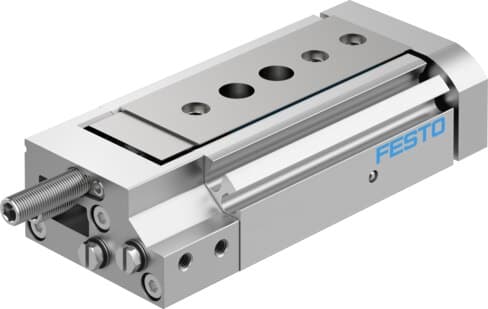

Product Model
DGSL-6-10-P1A
Key Features
- 1Piston diameter: 8 mm
- 2Theoretical force at 6 bar, advance stroke: 30 N
- 3Stroke: 10 mm
- 4Cushioning: Elastic cushioning pads at both ends, with fixed stop
- 5Position detection: Via proximity switch
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Note on operating and pilot medium | Can be operated with lubricated medium (subsequent lubrication required) | Operating medium | Compressed air, ISO 8573-1:2010 [7:4:4] |
| Operating mode | Double-acting | Repeatability | ±0.01 mm |
| Max. speed | 0.5 m/s | Operating pressure | 1.5 / 8 bar |
| Symbol | 00991263 | Position detection | Via proximity switch |
| Design feature | Fork / bore / piston rod / slider | Guide | Caged ball bearing guide |
| Mounting position | Optional | Cushioning | Elastic cushioning pads at both ends, with fixed stop |
| Operating mode, drive unit | Connecting plate | Piston diameter | 8 mm |
| Adjustable end position range/length, rear | 15 mm | Adjustable end position range/length, front | 16.5 mm |
| Stroke | 10 mm |
Specifications may be subject to change without notice
