Product Model

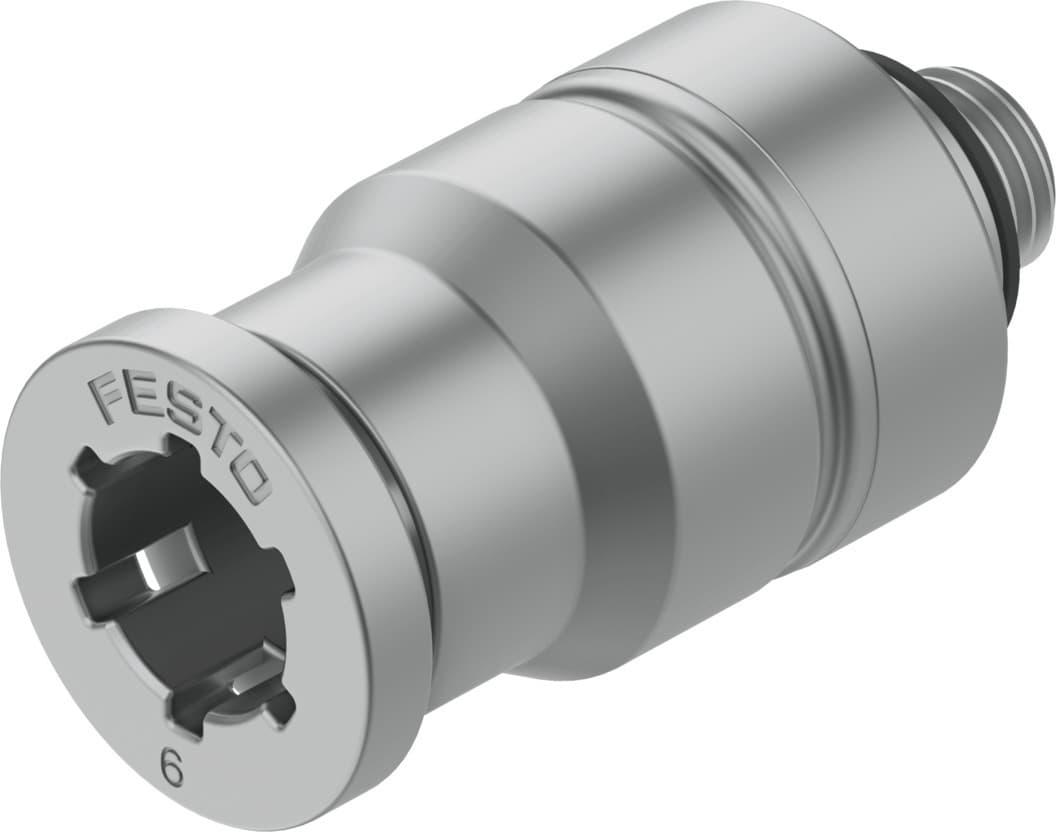

crqs-m5-6-i
Key Features
- 1The CRQS-M5-6-I push-in fitting is made from high-alloy stainless steel, ensuring it withstands high corrosion stress and maintains its integrity in harsh environments.
- 2This fitting operates within a wide ambient temperature range of -15°C to 120°C, making it suitable for various industrial applications where temperature fluctuations are common.
- 3With a nominal tightening torque of 1.33 Nm and a tolerance of ±20%, the CRQS-M5-6-I provides secure and consistent pneumatic connections.
- 4The fitting can be mounted in any position, offering flexibility in system design and installation.
- 5The CRQS-M5-6-I meets ISO 8573-1:2010 standards for compressed air and is suitable for use with water as per manufacturer's declaration, ensuring compliance with industry norms.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Standard | Nominal width | 2mm |
| Type of seal on screwed plug | Sealing ring | Mounting position | Any |
| Design | Straight design | Pack size | 1 |
| Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 145psi |
| Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
| Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 4 - Particularly high corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | For use in the food industry | See supplementary material information |
| Ambient temperature | -15°C 120°C | Nominal tightening torque | 1.33Nm |
| Tolerance for nominal tightening torque | ± 20% | Product weight | 7.7g |
| Usable connector cables | PFAN | Type of mounting | Internal hexagon, AF 2 |
| Pneumatic connection 1 | External thread M5 | Pneumatic connection 2 | for pneumatic tubing outside diameter 6 mm |
| Material of screwed plug | High-alloy stainless steel | Note on materials | RoHS-compliant |
| Housing material | High-alloy stainless steel | Material of threaded seal | FPM High-alloy stainless steel |
| Releasing ring material | High-alloy stainless steel | Material of tubing seal | FPM |
| Material of tube retaining claw | High-alloy stainless steel | Thrust ring material | High-alloy stainless steel |
| Manufacturer ID | 132329 |
Specifications may be subject to change without notice
