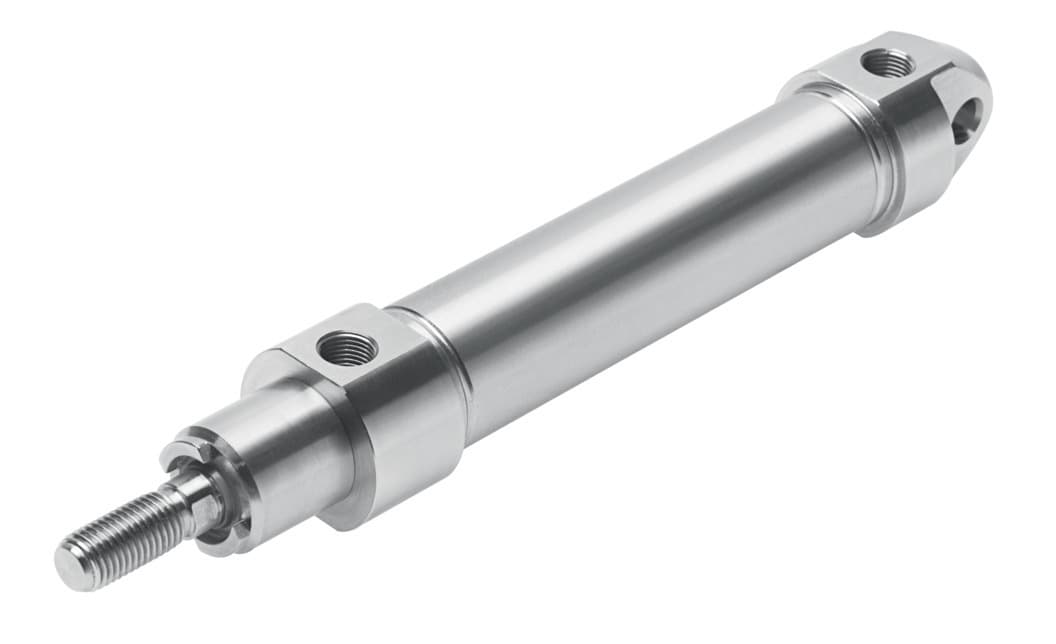

Product Model
crdsnu-12-
Key Features
- 1Made from high-alloy stainless steel, ensuring durability and resistance to corrosion.
- 2Available in various stroke lengths from 1 mm to 200 mm, accommodating diverse application needs.
- 3Equipped with elastic cushioning rings/pads at both ends for smooth operation and reduced wear.
- 4Designed for double-acting operation, allowing for both extension and retraction with equal force.
- 5Conforms to the ISO 6432 standard, ensuring compatibility with a wide range of pneumatic systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 1mm 200mm | Piston diameter | 12 mm |
| Piston rod thread | M6 | Based on norm | ISO 6432 |
| Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
| Piston rod end | External thread | Structural design | Piston Piston rod Cylinder barrel |
| Position sensing | For proximity sensor | Variants | Hard scraper For unlubricated operation Increased chemical resistance Extended external thread piston rod Extended piston rod Bearing cover without mounting thread Lateral supply port Through piston rod Heat-resistant seals max. 120°C Temperature range -40 to 80°C Piston rod at one end |
| Operating pressure | 1bar 10bar | Mode of operation | Double-acting |
| CE marking (see declaration of conformity) | as per EU explosion protection directive (ATEX) | UKCA marking (see declaration of conformity) | acc. to UK EX instructions |
| Explosion protection certification outside the EU | EPL Db (GB) EPL Gb (GB) | Explosion prevention and protection | Zone 1 (ATEX) Zone 1 (UKEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 21 (UKEX) Zone 22 (ATEX) |
| ATEX category gas | II 2G | ATEX category for dust | II 2D |
| Type of ignition protection for gas | Ex h IIC T4 Gb | Type of (ignition) protection for dust | Ex h IIIC T120°C Db |
| Explosive ambient temperature | -20°C <= Ta <= +60°C | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 3 - High corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L VDMA24364 zone III | Cleanroom class | Class 6 according to ISO 14644-1 |
| For use in the food industry | See declaration of conformity | Ambient temperature | -40°C 120°C |
| Theoretical force at 6 bar, retracting | 51N | Theoretical force at 6 bar, advancing | 68N |
| Moving mass at 0?mm stroke | 19g | Additional moving mass per 10?mm stroke | 2g |
| Basic weight with 0?mm stroke | 101g | Additional weight per 10?mm stroke | 4g |
| Type of mounting | With accessories | Pneumatic connection | M5 |
| Note on materials | RoHS-compliant | Cover material | High-alloy stainless steel |
| Piston rod material | High-alloy stainless steel | Material of cylinder barrel | High-alloy stainless steel |
| Manufacturer ID | 552787 |
Specifications may be subject to change without notice
