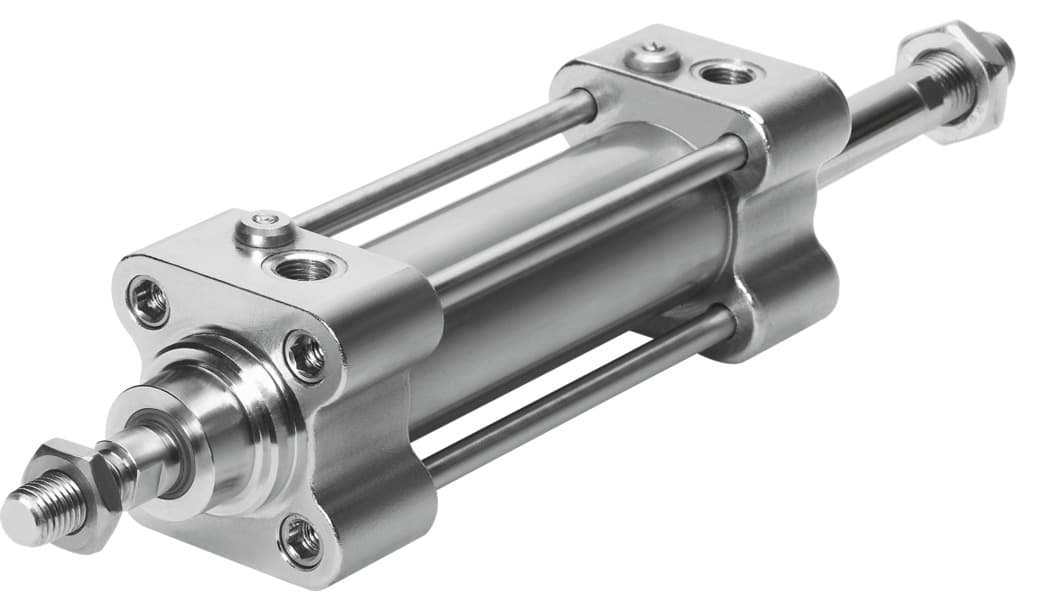

Product Model
crdng-63- -ppv-a-s2
Key Features
- 1The CRDNG-63- -PPV-A-S2 cylinder conforms to the ISO 15552 standard, ensuring reliability and consistency in your automation systems.
- 2Equipped with adjustable pneumatic cushioning at both ends, this cylinder provides optimal control and smooth operation in various applications.
- 3Available in a stroke range of 10 mm to 2000 mm, this cylinder is suitable for a wide variety of tasks, from small-scale to large-scale automation projects.
- 4Designed with a very high corrosion resistance class (CRC 4) and LABS (PWIS) conformity, this cylinder is suitable for use with food and operates in environments with high corrosion stress.
- 5The CRDNG-63- -PPV-A-S2 cylinder supports double-acting operation with an operating pressure range of 0.06 MPa to 1 MPa (0.6 bar to 10 bar), making it adaptable to various industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 10mm 2000mm | Piston diameter | 63 mm |
| Piston rod thread | M16x1.5 | Cushioning | Pneumatic cushioning, adjustable at both ends |
| Mounting position | Any | Conforms to standard | ISO 15552 |
| Piston rod end | External thread | Structural design | Piston Piston rod Tie rod Cylinder barrel |
| Position sensing | For proximity sensor | Symbol | 00991237 |
| Variants | Through piston rod | Operating pressure | 0.6bar 10bar |
| Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 4 - Particularly high corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L | For use in the food industry | See supplementary material information |
| Ambient temperature | -20°C 80°C | Cushioning length | 23mm |
| Theoretical force at 6 bar, retracting | 1682N | Theoretical force at 6 bar, advancing | 1682N |
| Moving mass at 0?mm stroke | 817g | Additional moving mass per 10?mm stroke | 50g |
| Basic weight with 0?mm stroke | 3779g | Additional weight per 10?mm stroke | 85g |
| Type of mounting | Optionally: With internal thread With accessories | Pneumatic connection | G3/8 |
| Cover material | Cast stainless steel | Seals material | TPE-U(PU) |
| Housing material | High-alloy stainless steel | Material of piston | Wrought aluminum alloy |
| Piston rod material | High-alloy stainless steel | Material of cylinder barrel | High-alloy stainless steel |
| Nut material | High-alloy stainless steel | Material of bearing | POM |
| Collar nut material | High-alloy stainless steel | Tie rod material | High-alloy stainless steel |
| Manufacturer ID | 185285 |
Specifications may be subject to change without notice
