Product Model

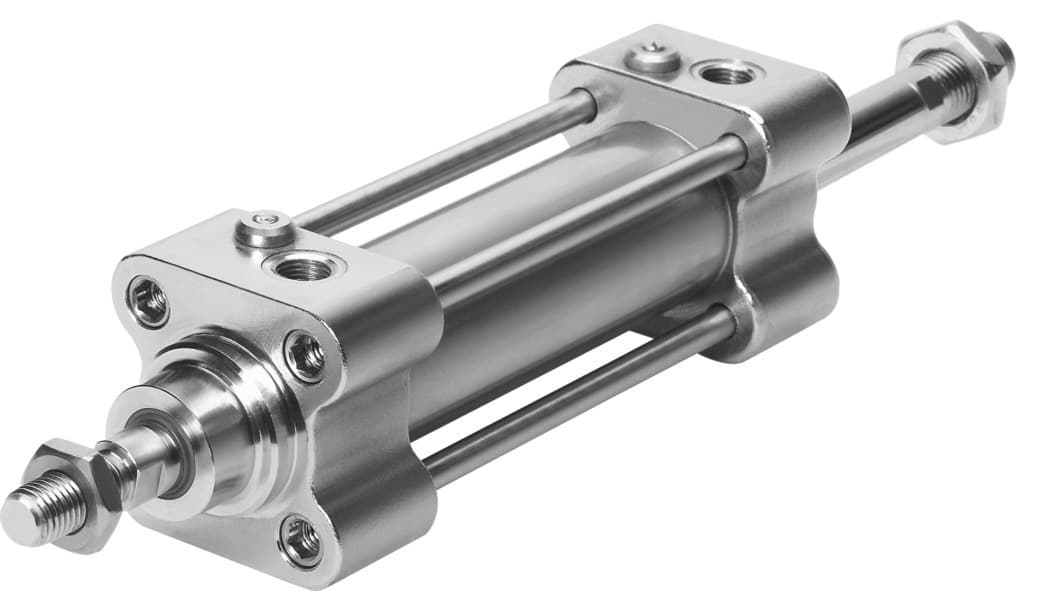

crdng-40- -ppv-a-s2
Key Features
- 1The CRDNG-40- -PPV-A-S2 features a stroke range of 10 mm to 2000 mm, making it versatile for various industrial applications.
- 2Equipped with a 40 mm piston diameter and M12x1.25 piston rod thread, this cylinder ensures precise and reliable operation.
- 3The cylinder includes adjustable pneumatic cushioning at both ends, providing optimal control and reducing wear and tear.
- 4Designed to conform to ISO 15552 standards, the CRDNG-40- -PPV-A-S2 ensures compatibility with a wide range of systems.
- 5Constructed from high-alloy stainless steel, this cylinder offers exceptional corrosion resistance and durability, suitable for use in harsh environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 10mm 2000mm | Piston diameter | 40 mm |
| Piston rod thread | M12x1.25 | Cushioning | Pneumatic cushioning, adjustable at both ends |
| Mounting position | Any | Conforms to standard | ISO 15552 |
| Piston rod end | External thread | Structural design | Piston Piston rod Tie rod Cylinder barrel |
| Position sensing | For proximity sensor | Symbol | 00991237 |
| Variants | Through piston rod | Operating pressure | 0.6bar 10bar |
| Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 4 - Particularly high corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L | For use in the food industry | See supplementary material information |
| Ambient temperature | -20°C 80°C | Cushioning length | 21mm |
| Theoretical force at 6 bar, retracting | 633N | Theoretical force at 6 bar, advancing | 633N |
| Moving mass at 0?mm stroke | 363g | Additional moving mass per 10?mm stroke | 32g |
| Basic weight with 0?mm stroke | 1519g | Additional weight per 10?mm stroke | 49g |
| Type of mounting | Optionally: With internal thread With accessories | Pneumatic connection | G1/4 |
| Cover material | Cast stainless steel | Seals material | TPE-U(PU) |
| Housing material | High-alloy stainless steel | Material of piston | Wrought aluminum alloy |
| Piston rod material | High-alloy stainless steel | Material of cylinder barrel | High-alloy stainless steel |
| Nut material | High-alloy stainless steel | Material of bearing | POM |
| Collar nut material | High-alloy stainless steel | Tie rod material | High-alloy stainless steel |
| Manufacturer ID | 185283 |
Specifications may be subject to change without notice
