Product Model

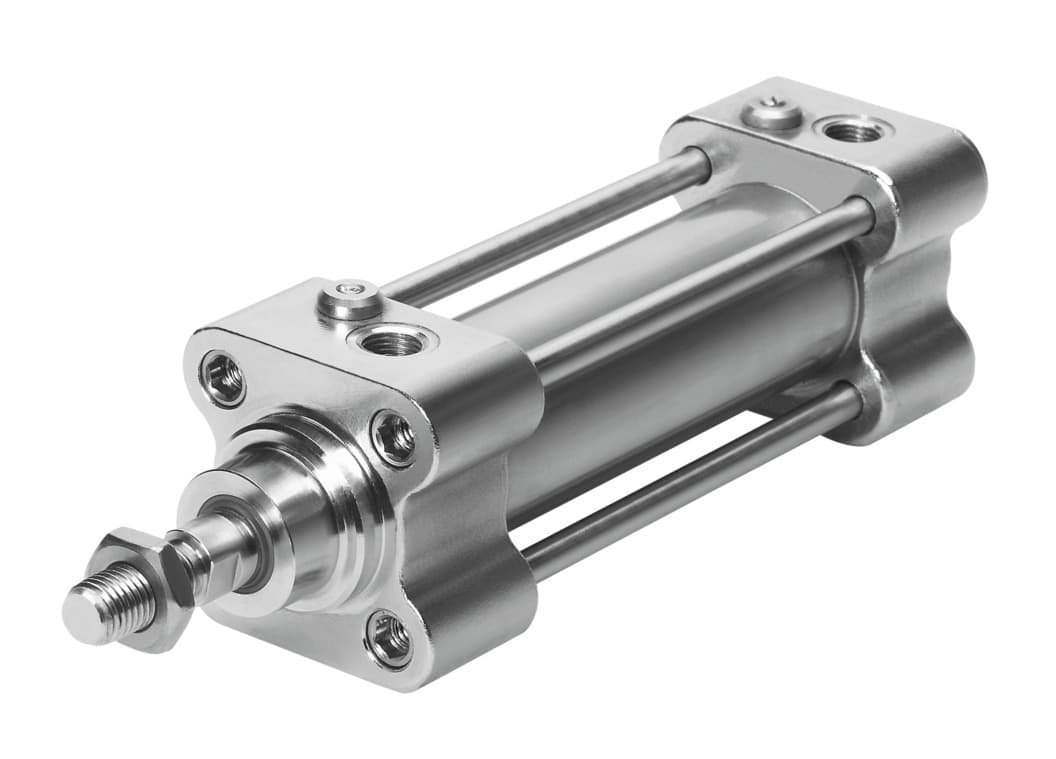

crdng-40- -ppv-a
Key Features
- 1The CRDNG-40- -PPV-A offers adjustable pneumatic cushioning at both ends, ensuring smooth operation and reducing noise and vibration.
- 2This cylinder conforms to the ISO 15552 standard, providing metric mounting dimensions for interchangeability with other hydraulic and pneumatic cylinders.
- 3Constructed with high-alloy stainless steel for the cover, piston rod, and cylinder barrel, ensuring excellent running performance and long service life.
- 4Available in strokes ranging from 10 mm to 2000 mm, making it suitable for a wide range of applications.
- 5Designed for double-acting operation, allowing compressed air to be applied for advancing and retracting the piston rod in a linear motion.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 10mm 2000mm | Piston diameter | 40 mm |
| Piston rod thread | M12x1.25 | Cushioning | Pneumatic cushioning, adjustable at both ends |
| Mounting position | Any | Conforms to standard | ISO 15552 |
| Piston rod end | External thread | Structural design | Piston Piston rod Tie rod Cylinder barrel |
| Position sensing | For proximity sensor | Symbol | 00991235 |
| Operating pressure | 0.6bar 10bar | Mode of operation | Double-acting |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 4 - Particularly high corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
| For use in the food industry | See supplementary material information | Ambient temperature | -20°C 80°C |
| Cushioning length | 21mm | Theoretical force at 6 bar, retracting | 633N |
| Theoretical force at 6 bar, advancing | 754N | Moving mass at 0?mm stroke | 268g |
| Additional moving mass per 10?mm stroke | 16g | Basic weight with 0?mm stroke | 1420g |
| Additional weight per 10?mm stroke | 33g | Type of mounting | Optionally: With internal thread With accessories |
| Pneumatic connection | G1/4 | Cover material | Cast stainless steel |
| Seals material | TPE-U(PU) | Housing material | High-alloy stainless steel |
| Material of piston | Wrought aluminum alloy | Piston rod material | High-alloy stainless steel |
| Material of cylinder barrel | High-alloy stainless steel | Nut material | High-alloy stainless steel |
| Material of bearing | POM | Collar nut material | High-alloy stainless steel |
| Tie rod material | High-alloy stainless steel | Manufacturer ID | 160885 |
Specifications may be subject to change without notice
