Product Model

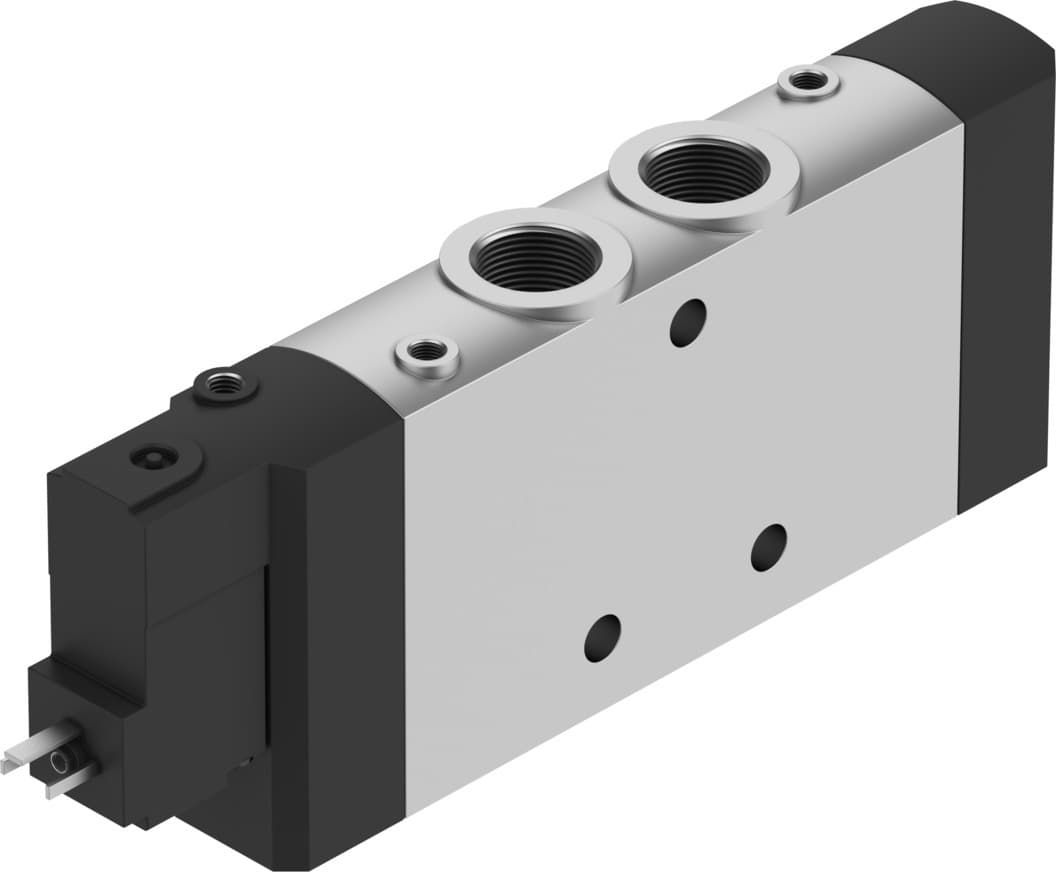

cpe24-m1h-5ls-3/8
Key Features
- 1The CPE24-M1H-5LS-3/8 solenoid valve is designed for high reliability, with a service life of 65 million cycles, making it ideal for demanding applications.
- 2This valve features a 5/2 monostable function, allowing for precise control over pneumatic systems with a nominal flow rate of 2900 l/min.
- 3The valve operates at 24V DC and has a pneumatic working port of G3/8, ensuring compatibility with various pneumatic systems.
- 4The CPE24-M1H-5LS-3/8 solenoid valve is designed with vibration resistance and shock resistance, ensuring it can withstand harsh industrial environments.
- 5This valve is part of Festo's extensive range of pneumatic components, offering a one-stop solution for all your automation needs.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve function | 5/2, monostable | Actuation type | Electrical |
| Width | 24mm | Standard nominal flow rate | 2900l/min |
| Pneumatic working port | G3/8 | Operating voltage | 24V DC |
| Operating pressure | -0.9bar 10bar | Structural design | Piston gate valve |
| Reset method | Pneumatic spring | Certification | c UL us - Recognized (OL) |
| Maritime classification | See certificate | Certificate issuing authority | DNV-TAA000032X UL MH19482 |
| Degree of protection | IP65 With plug socket as per IEC 60529 | Nominal width | 11mm |
| Exhaust air function | With flow control option | Sealing principle | Soft |
| Mounting position | Any | Manual override | Detenting via accessory Non-detenting |
| Type of control | Pilot-controlled | Pilot air supply port | External |
| Flow direction | Reversible | Symbol | 00991026 |
| Valve position ID | Label holder | Lap | Overlap |
| Pilot pressure MPa | 0.25MPa 1MPa | Pilot pressure | 2.5bar 10bar |
| Switching time off | 50ms | On switching time | 40ms |
| Duty cycle | 100% | Max. positive test pulse with 0 signal | 3300μs |
| Max. negative test pulse on 1 signal | 3100μs | Coil characteristics | 24 V DC: 1.5 W |
| Permissible voltage fluctuations | -15 % / +10 % | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
| Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | -5°C 50°C |
| Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Ambient temperature | -5°C 50°C |
| Product weight | 360g | Electrical connection | Form C |
| Type of mounting | With through-hole | Pilot exhaust air port 82 | M5 |
| Pilot exhaust air port 84 | M5 | Pilot air port 12 | M5 |
| Pilot air port 14 | M5 | Pneumatic connection 1 | G3/8 |
| Pneumatic connection 2 | G3/8 | Pneumatic connection 3 | G3/8 |
| Pneumatic connection 4 | G3/8 | Pneumatic connection 5 | G3/8 |
| Note on materials | RoHS-compliant | Seals material | NBR |
| Housing material | Die-cast aluminum | Manufacturer ID | 163170 |
Specifications may be subject to change without notice
