Product Model

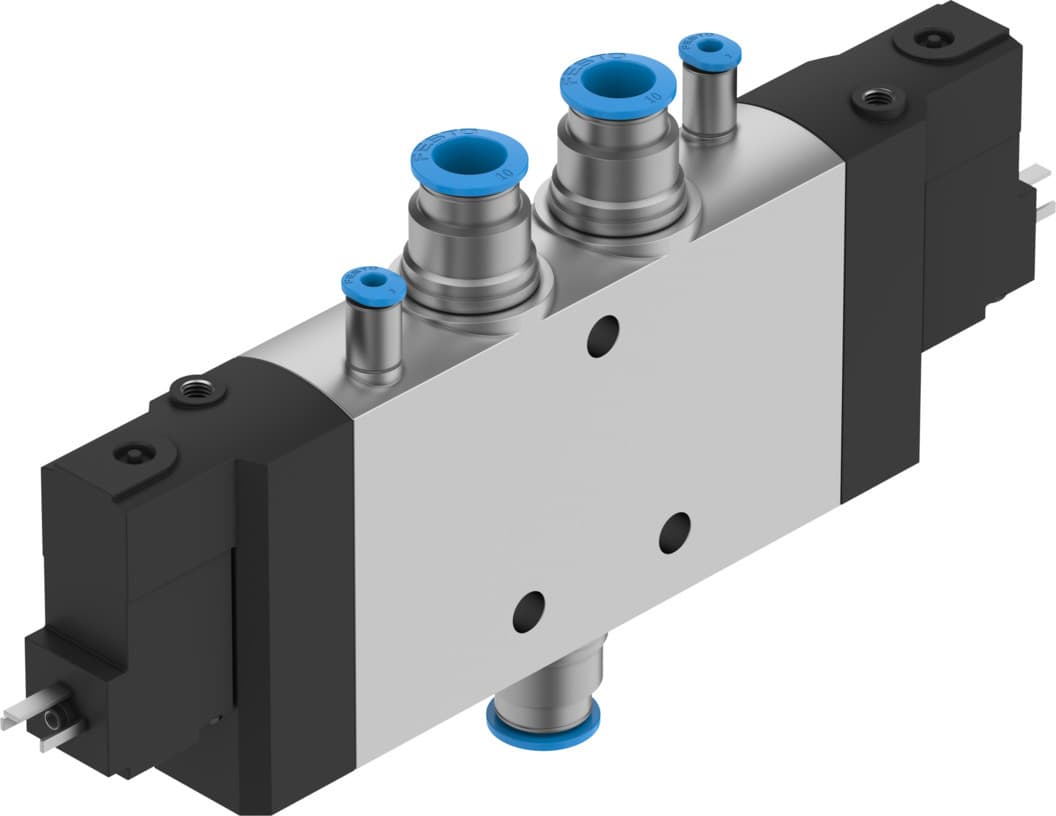

cpe24-m1h-5js-qs-10
Key Features
- 1The Festo CPE24-M1H-5JS-QS-10 solenoid valve features a 5/2 double solenoid actuation, ensuring reliable and efficient operation in various industrial settings.
- 2With a standard nominal flow rate of 1250 l/min, this valve is designed to handle high-pressure applications, making it suitable for demanding industrial processes.
- 3The valve operates at 24V DC and supports operating pressures from -0.09 MPa to 1 MPa, providing flexibility in different pneumatic systems.
- 4The CPE24-M1H-5JS-QS-10 is certified by UL and DNV, ensuring compliance with maritime classification standards and providing a high degree of protection with an IP65 rating.
- 5This valve offers reversible flow direction and a changeover time of 25 ms, making it ideal for applications requiring quick and precise control over pneumatic flows.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve function | 5/2, bistable | Actuation type | Electrical |
| Width | 24mm | Standard nominal flow rate | 1250l/min |
| Pneumatic working port | QS-10 | Operating voltage | 24V DC |
| Operating pressure | -0.9bar 10bar | Structural design | Piston gate valve |
| Certification | c UL us - Recognized (OL) | Maritime classification | See certificate |
| Certificate issuing authority | DNV-TAA000032X UL MH19482 | Degree of protection | IP65 With plug socket as per IEC 60529 |
| Nominal width | 11mm | Exhaust air function | With flow control option |
| Sealing principle | Soft | Mounting position | Any |
| Manual override | Detenting via accessory Non-detenting | Type of control | Pilot-controlled |
| Pilot air supply port | External | Flow direction | Reversible |
| Symbol | 00991016 | Valve position ID | Label holder |
| Lap | Overlap | Pilot pressure MPa | 0.2MPa 1MPa |
| Pilot pressure | 2bar 10bar | Changeover time | 25ms |
| Duty cycle | 100% | Max. positive test pulse with 0 signal | 3300μs |
| Max. negative test pulse on 1 signal | 3100μs | Coil characteristics | 24 V DC: 1.5 W |
| Permissible voltage fluctuations | -15 % / +10 % | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
| Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | -5°C 50°C |
| Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Ambient temperature | -5°C 50°C |
| Electrical connection | Form C | Type of mounting | With through-hole |
| Pilot exhaust air port 82 | M5 | Pilot exhaust air port 84 | M5 |
| Pilot air port 12 | M5 | Pilot air port 14 | M5 |
| Pneumatic connection 1 | QS-10 | Pneumatic connection 2 | QS-10 |
| Pneumatic connection 3 | G3/8 | Pneumatic connection 4 | QS-10 |
| Pneumatic connection 5 | G3/8 | Note on materials | RoHS-compliant |
| Seals material | NBR | Housing material | Die-cast aluminum |
| Manufacturer ID | 163179 |
Specifications may be subject to change without notice
