Product Model

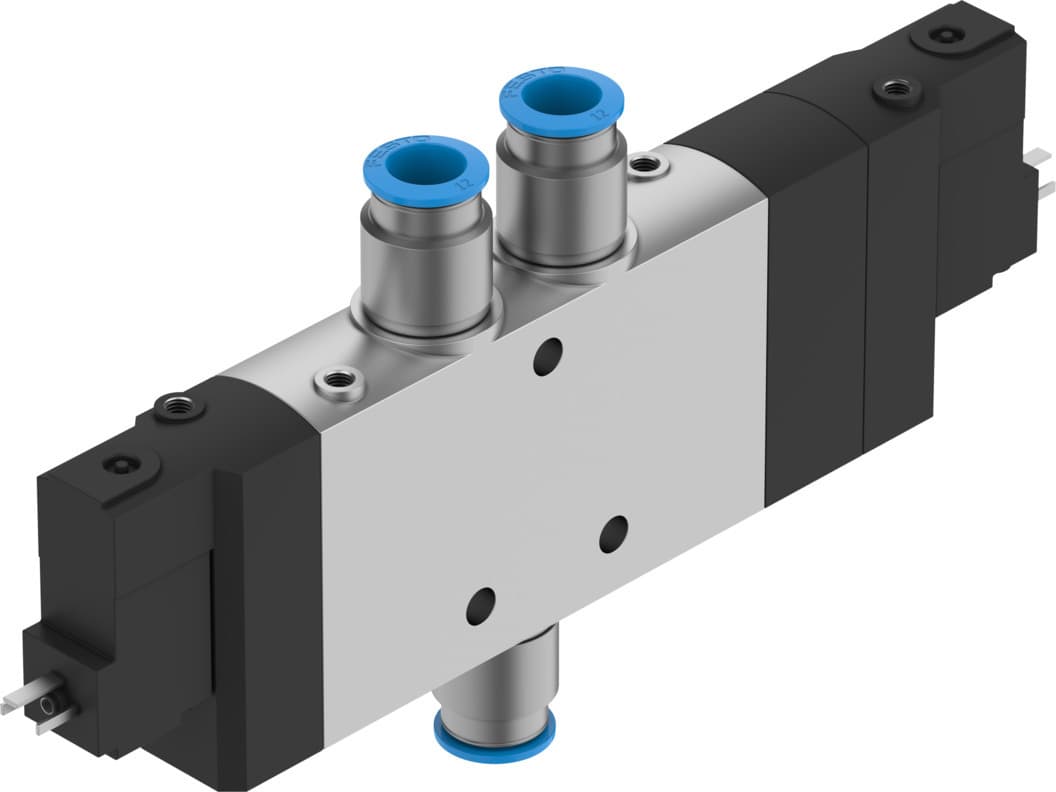

cpe24-m1h-5/3b-qs-12
Key Features
- 1The CPE24-M1H-5/3B-QS-12 solenoid valve boasts a high component density, ensuring compact design and minimal space requirements.
- 2This valve is actuated electrically, providing precise control over fluid flow and pressure.
- 3With a standard nominal flow rate of 1600 l/min and operating pressure range of 2.5 to 10 bar, it is ideal for pressurized applications.
- 4The valve features a mechanical spring reset mechanism, ensuring reliable operation and quick return to its original position.
- 5The CPE24-M1H-5/3B-QS-12 offers an IP65 protection class with a plug socket, making it suitable for harsh environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve function | 5/3, pressurized | Actuation type | Electrical |
| Width | 24mm | Standard nominal flow rate | 1600l/min |
| Pneumatic working port | QS-12 | Operating voltage | 24V DC |
| Operating pressure | 2.5bar 10bar | Structural design | Piston gate valve |
| Reset method | Mechanical spring | Certification | c UL us - Recognized (OL) |
| Maritime classification | See certificate | Certificate issuing authority | DNV-TAA000032X UL MH19482 |
| Degree of protection | IP65 With plug socket as per IEC 60529 | Nominal width | 11mm |
| Exhaust air function | With flow control option | Sealing principle | Soft |
| Mounting position | Any | Manual override | Detenting via accessory Non-detenting |
| Type of control | Pilot-controlled | Pilot air supply port | Internal |
| Flow direction | Non-reversible | Symbol | 00991034 |
| Valve position ID | Label holder | Lap | Overlap |
| Switching time off | 55ms | On switching time | 25ms |
| Duty cycle | 100% | Max. positive test pulse with 0 signal | 3300μs |
| Max. negative test pulse on 1 signal | 3100μs | Coil characteristics | 24 V DC: 1.5 W |
| Permissible voltage fluctuations | -15 % / +10 % | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
| Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | -5°C 50°C |
| Ambient temperature | -5°C 50°C | Electrical connection | Form C |
| Type of mounting | With through-hole | Pilot exhaust air port 82 | M5 |
| Pilot exhaust air port 84 | M5 | Pilot air port 12 | M5 |
| Pilot air port 14 | M5 | Pneumatic connection 1 | QS-12 |
| Pneumatic connection 2 | QS-12 | Pneumatic connection 3 | G3/8 |
| Pneumatic connection 4 | QS-12 | Pneumatic connection 5 | G3/8 |
| Note on materials | RoHS-compliant | Seals material | NBR |
| Housing material | Die-cast aluminum | Manufacturer ID | 170281 |
Specifications may be subject to change without notice
