Product Model

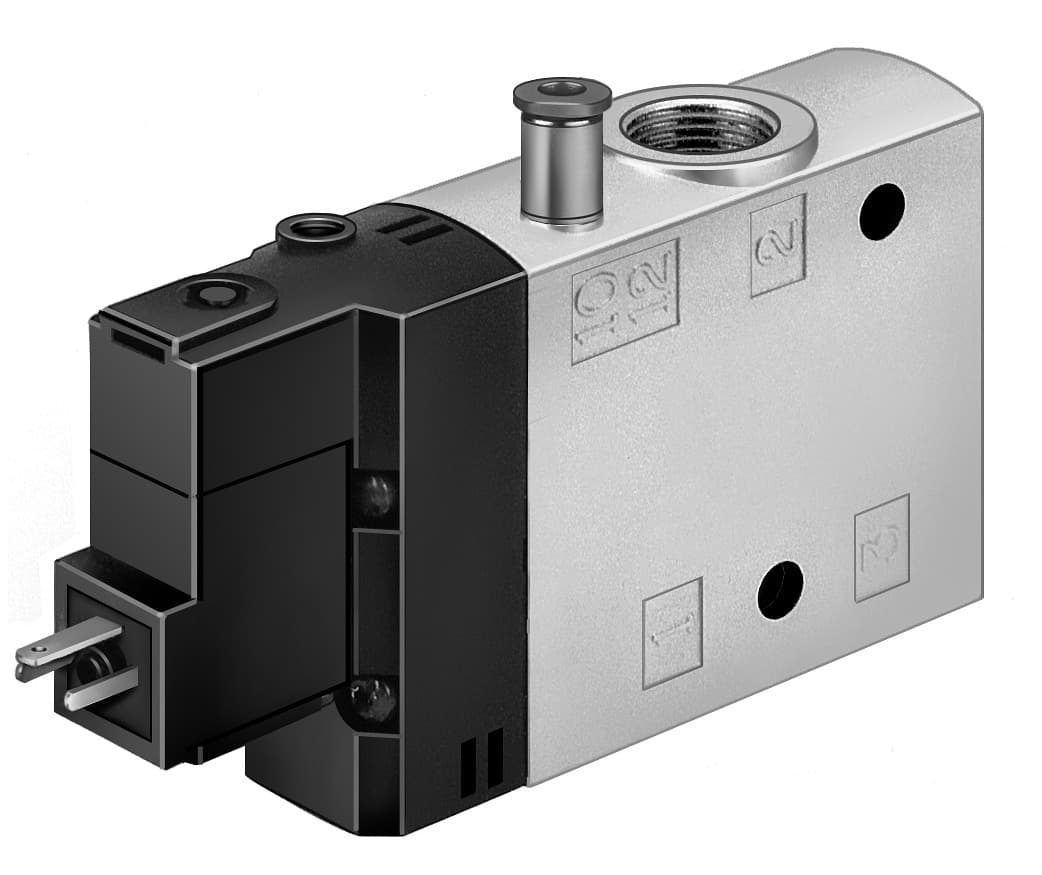

cpe24-m1h-3ols-3/8
Key Features
- 1High Flow Rate: The CPE24-M1H-3OLS-3/8 solenoid valve offers a standard nominal flow rate of 3000 liters per minute, making it suitable for high-demand applications.
- 2Durable Design: Constructed with a 24 mm width and made from die-cast aluminum, this valve ensures robust performance and long-lasting operation.
- 3Reliable Operation: Equipped with a pneumatic spring reset and soft sealing principle, the valve provides consistent and reliable operation under various conditions.
- 4Wide Operating Range: The valve operates within a pressure range of -0.9 to 10 bar and can handle temperatures from -5°C to 50°C, making it versatile for different industrial settings.
- 5IP65 Protection: With an IP65 protection rating, the valve is designed to withstand harsh environments and ensure reliable performance in demanding applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve function | 3/2, open, monostable | Actuation type | Electrical |
| Width | 24mm | Standard nominal flow rate | 3000l/min |
| Pneumatic working port | G3/8 | Operating voltage | 24V DC |
| Operating pressure | -0.9bar 10bar | Structural design | Piston gate valve |
| Reset method | Pneumatic spring | Certification | c UL us - Recognized (OL) |
| Maritime classification | See certificate | Certificate issuing authority | DNV-TAA000032X UL MH19482 |
| Degree of protection | IP65 With plug socket as per IEC 60529 | Nominal width | 11mm |
| Sealing principle | Soft | Mounting position | Any |
| Manual override | Detenting via accessory Non-detenting | Type of control | Pilot-controlled |
| Pilot air supply port | External | Flow direction | Non-reversible |
| Symbol | 00991402 | Valve position ID | Label holder |
| Lap | Overlap | Pilot pressure MPa | 0.25MPa 1MPa |
| Pilot pressure | 2.5bar 10bar | Switching time off | 33ms |
| On switching time | 50ms | Duty cycle | 100% |
| Max. positive test pulse with 0 signal | 3300μs | Max. negative test pulse on 1 signal | 3100μs |
| Coil characteristics | 24 V DC: 1.5 W | Permissible voltage fluctuations | -15 % / +10 % |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 | Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Temperature of medium | -5°C 50°C | Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Ambient temperature | -5°C 50°C | Product weight | 220g |
| Electrical connection | Form C | Type of mounting | With through-hole |
| Pilot exhaust air port 82 | M5 | Pilot air port 12 | M5 |
| Pneumatic connection 1 | G3/8 | Pneumatic connection 2 | G3/8 |
| Pneumatic connection 3 | G3/8 | Note on materials | RoHS-compliant |
| Seals material | NBR | Housing material | Die-cast aluminum |
| Manufacturer ID | 163168 |
Specifications may be subject to change without notice
