Product Model

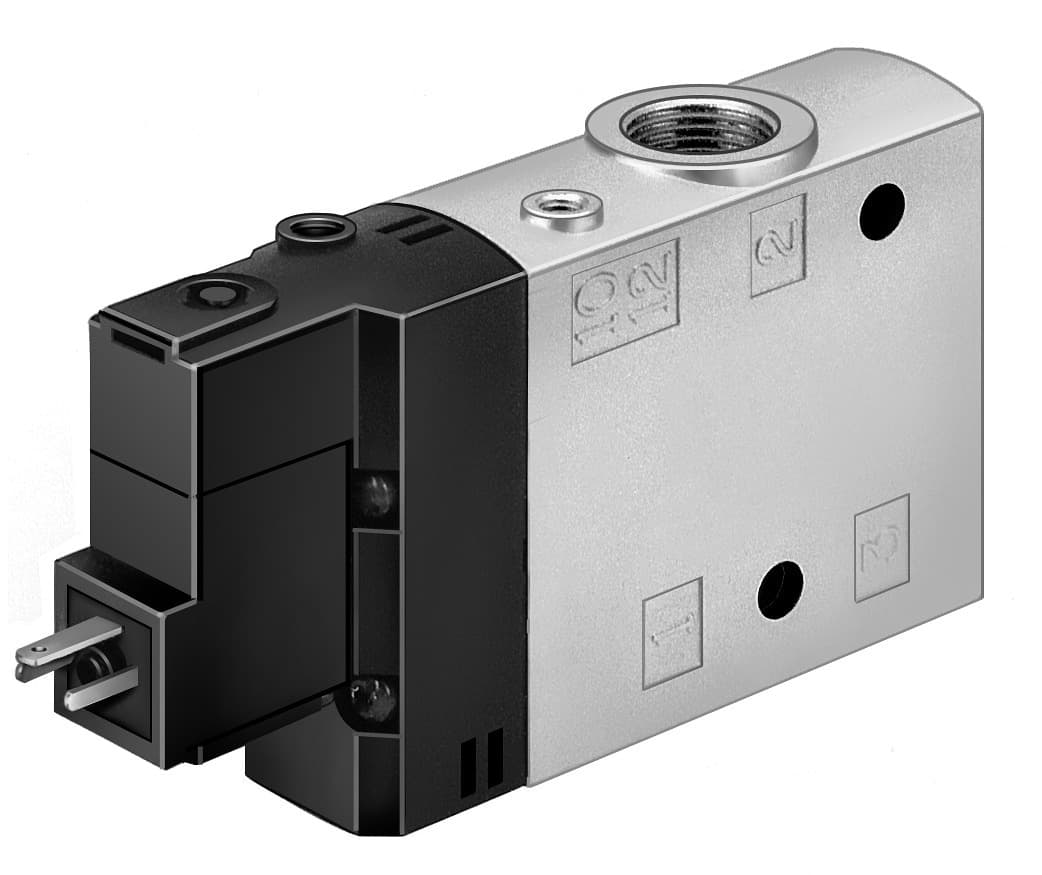

cpe24-m1h-3ol-3/8
Key Features
- 1Precise Control: The Festo CPE24-M1H-3OL-3/8 solenoid valve offers 3/2 open, single solenoid functionality for precise control in industrial automation applications.
- 2High Flow Rate: With a standard nominal flow rate of 3000 l/min, this valve ensures efficient operation in various pneumatic systems.
- 3Durable Construction: Built with a 24 mm construction width and made from die-cast aluminum, the valve provides robust and reliable performance.
- 4Versatile Operation: Compatible with compressed air to ISO 8573-1:2010, this valve supports lubricated operation and can handle operating pressures from 2.5 to 10 bar.
- 5Enhanced Safety Features: Equipped with a pneumatic spring reset and IP65 protection, the valve ensures safe and reliable operation in various environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve function | 3/2, open, monostable | Actuation type | Electrical |
| Width | 24mm | Standard nominal flow rate | 3000l/min |
| Pneumatic working port | G3/8 | Operating voltage | 24V DC |
| Operating pressure | 2.5bar 10bar | Structural design | Piston gate valve |
| Reset method | Pneumatic spring | Certification | c UL us - Recognized (OL) |
| Maritime classification | See certificate | Certificate issuing authority | DNV-TAA000032X UL MH19482 |
| Degree of protection | IP65 With plug socket as per IEC 60529 | Nominal width | 11mm |
| Sealing principle | Soft | Mounting position | Any |
| Manual override | Detenting via accessory Non-detenting | Type of control | Pilot-controlled |
| Pilot air supply port | Internal | Flow direction | Non-reversible |
| Symbol | 00991656 | Valve position ID | Label holder |
| Lap | Overlap | Switching time off | 33ms |
| On switching time | 50ms | Duty cycle | 100% |
| Max. positive test pulse with 0 signal | 3300μs | Max. negative test pulse on 1 signal | 3100μs |
| Coil characteristics | 24 V DC: 1.5 W | Permissible voltage fluctuations | -15 % / +10 % |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 | Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Temperature of medium | -5°C 50°C | Ambient temperature | -5°C 50°C |
| Product weight | 220g | Electrical connection | Form C |
| Type of mounting | With through-hole | Pilot exhaust air port 82 | M5 |
| Pilot air port 12 | M5 | Pneumatic connection 1 | G3/8 |
| Pneumatic connection 2 | G3/8 | Pneumatic connection 3 | G3/8 |
| Note on materials | RoHS-compliant | Seals material | NBR |
| Housing material | Die-cast aluminum | Manufacturer ID | 163164 |
Specifications may be subject to change without notice
