Product Model

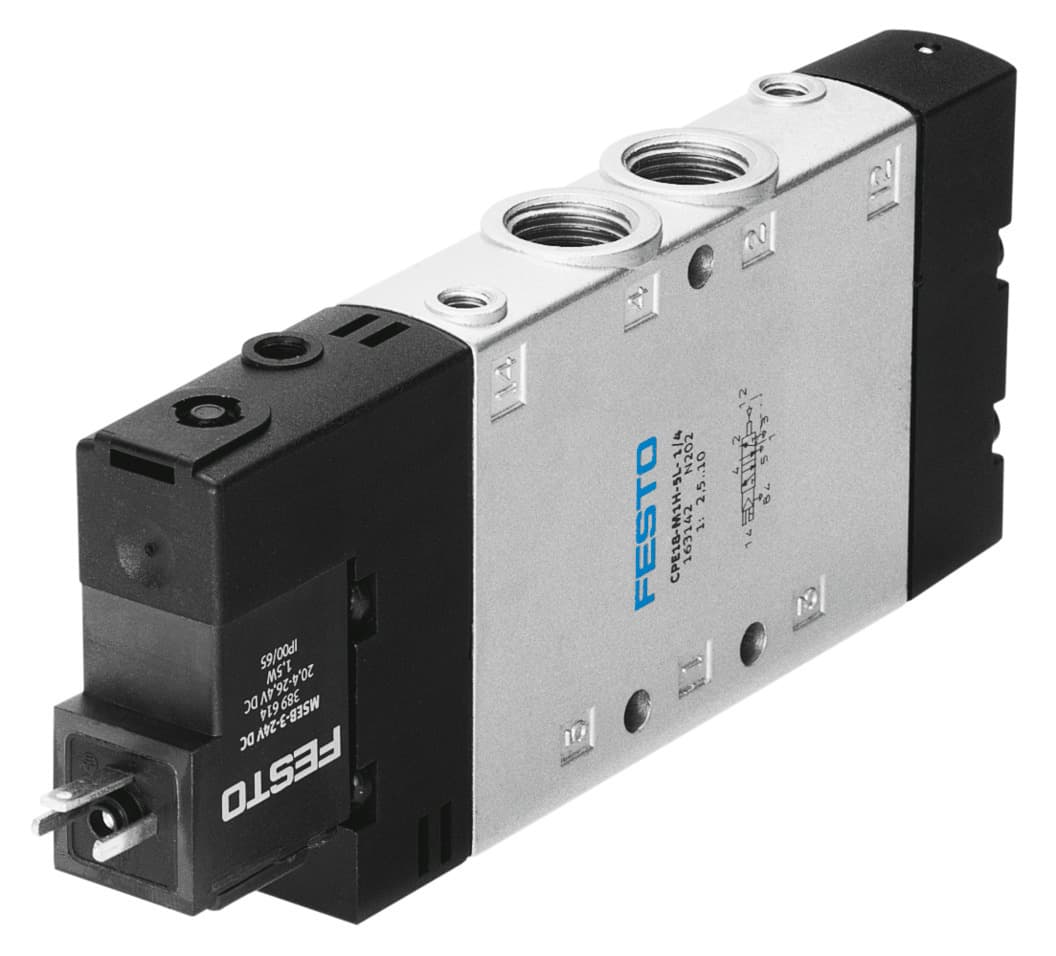

cpe18-m2h-5l-1/4
Key Features
- 1The Festo CPE18-M2H-5L-1/4 pneumatic cylinder offers exceptional durability and reliability, ensuring consistent performance in demanding industrial environments.
- 2This high-performance cylinder features a robust design with a 5-liter capacity, making it ideal for applications requiring significant force and motion control.
- 3The CPE18-M2H-5L-1/4 is engineered with advanced materials and precision manufacturing techniques, guaranteeing smooth operation and long service life.
- 4With its compact size and lightweight construction, the Festo CPE18-M2H-5L-1/4 is perfect for space-constrained applications where mobility and flexibility are crucial.
- 5The Festo CPE18-M2H-5L-1/4 pneumatic cylinder is designed to integrate seamlessly with Festo's comprehensive range of pneumatic components, enhancing system efficiency and performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve function | 5/2, monostable | Actuation type | Electrical |
| Width | 18mm | Standard nominal flow rate | 1500l/min |
| Pneumatic working port | G1/4 | Operating voltage | 110V AC |
| Operating pressure | 2.5bar 10bar | Structural design | Piston gate valve |
| Reset method | Pneumatic spring | Certification | c UL us - Recognized (OL) |
| Maritime classification | See certificate | CE marking (see declaration of conformity) | As per EU low voltage directive |
| UKCA marking (see declaration of conformity) | To UK instructions for electrical equipment | Certificate issuing authority | DNV-TAA000032X UL MH19482 |
| Degree of protection | IP65 With plug socket as per IEC 60529 | Nominal width | 8mm |
| Exhaust air function | With flow control option | Sealing principle | Soft |
| Mounting position | Any | Manual override | Detenting via accessory Non-detenting |
| Type of control | Pilot-controlled | Pilot air supply port | Internal |
| Flow direction | Non-reversible | Symbol | 00991023 |
| Valve position ID | Label holder | Lap | Overlap |
| Switching time off | 20ms | On switching time | 26ms |
| Duty cycle | 100% | Max. positive test pulse with 0 signal | 3300μs |
| Max. negative test pulse on 1 signal | 3100μs | Coil characteristics | 110 V AC: 50/60 Hz, initial power 3.0 VA, holding power 2.4 VA |
| Permissible voltage fluctuations | -15 % / +10 % | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
| Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | -5°C 50°C |
| Ambient temperature | -5°C 50°C | Product weight | 220g |
| Electrical connection | Form C | Type of mounting | With through-hole |
| Pilot exhaust air port 82 | M5 | Pilot exhaust air port 84 | M5 |
| Pilot air port 12 | M5 | Pilot air port 14 | M5 |
| Pneumatic connection 1 | G1/4 | Pneumatic connection 2 | G? |
| Pneumatic connection 3 | G1/4 | Pneumatic connection 4 | G1/4 |
| Pneumatic connection 5 | G1/4 | Note on materials | RoHS-compliant |
| Seals material | NBR | Housing material | Die-cast aluminum |
| Manufacturer ID | 163762 |
Specifications may be subject to change without notice
