Product Model

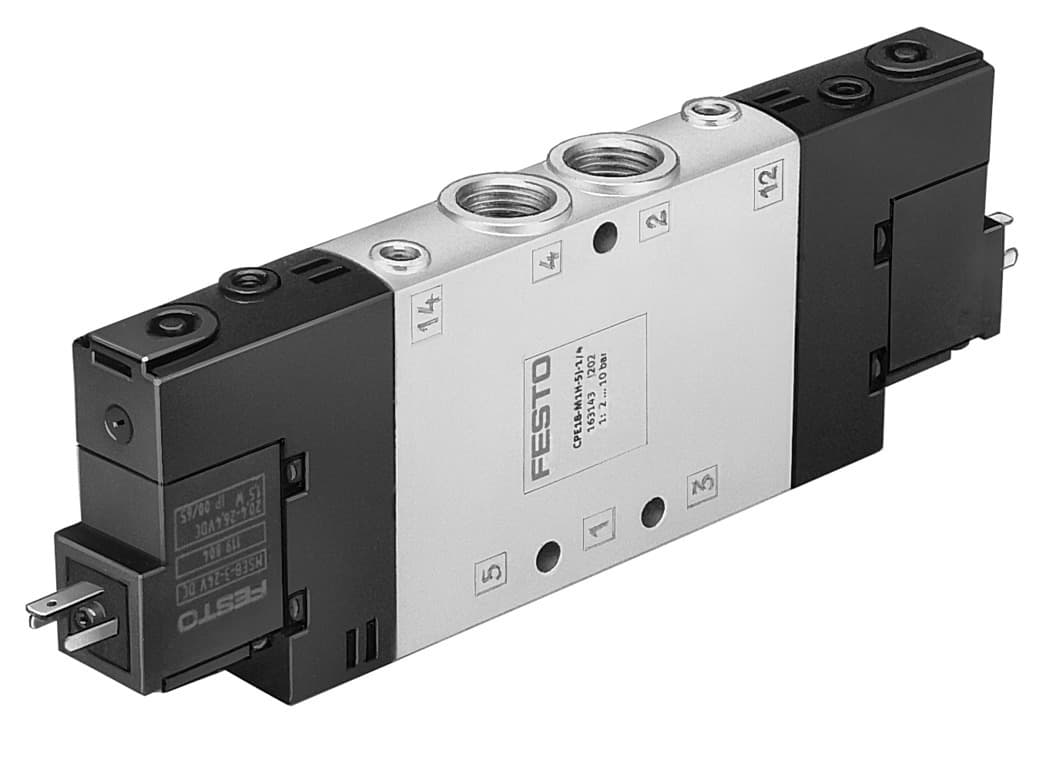

cpe18-m2h-5js-1/4
Key Features
- 1The CPE18-M2H-5J-1/4 solenoid valve offers a standard nominal flow rate of 1500 l/min, ensuring efficient operation in various industrial applications.
- 2With a product weight of 270 g and a robust design, this valve is built to withstand the demands of industrial environments, including moderate corrosion stress.
- 3Equipped with internal pilot air supply and non-reversible flow direction, this valve provides precise control over pneumatic systems, enhancing overall system efficiency.
- 4The valve features an optional manual override and detenting via accessory, allowing for flexible mounting positions and easy maintenance.
- 5Meets EU Low Voltage Directive and UK regulations for electrical equipment, ensuring compliance with international standards. Also, certified by DNV-TAA000032X and UL MH19482.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve function | 5/2, bistable | Actuation type | Electrical |
| Width | 18mm | Standard nominal flow rate | 1500l/min |
| Pneumatic working port | G1/4 | Operating voltage | 110V AC |
| Operating pressure | -0.9bar 10bar | Structural design | Piston gate valve |
| Certification | c UL us - Recognized (OL) | Maritime classification | See certificate |
| CE marking (see declaration of conformity) | As per EU low voltage directive | UKCA marking (see declaration of conformity) | To UK instructions for electrical equipment |
| Certificate issuing authority | DNV-TAA000032X UL MH19482 | Degree of protection | IP65 With plug socket as per IEC 60529 |
| Nominal width | 8mm | Exhaust air function | With flow control option |
| Sealing principle | Soft | Mounting position | Any |
| Manual override | Detenting via accessory Non-detenting | Type of control | Pilot-controlled |
| Pilot air supply port | External | Flow direction | Reversible |
| Symbol | 00991016 | Valve position ID | Label holder |
| Lap | Overlap | Pilot pressure MPa | 0.2MPa 1MPa |
| Pilot pressure | 2bar 10bar | Changeover time | 13ms |
| Duty cycle | 100% | Max. positive test pulse with 0 signal | 3300μs |
| Max. negative test pulse on 1 signal | 3100μs | Coil characteristics | 110 V AC: 50/60 Hz, initial power 3.0 VA, holding power 2.4 VA |
| Permissible voltage fluctuations | -15 % / +10 % | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
| Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | -5°C 50°C |
| Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Ambient temperature | -5°C 50°C |
| Product weight | 270g | Electrical connection | Form C |
| Type of mounting | With through-hole | Pilot exhaust air port 82 | M5 |
| Pilot exhaust air port 84 | M5 | Pilot air port 12 | M5 |
| Pilot air port 14 | M5 | Pneumatic connection 1 | G1/4 |
| Pneumatic connection 2 | G? | Pneumatic connection 3 | G1/4 |
| Pneumatic connection 4 | G1/4 | Pneumatic connection 5 | G1/4 |
| Note on materials | RoHS-compliant | Seals material | NBR |
| Housing material | Die-cast aluminum | Manufacturer ID | 163767 |
Specifications may be subject to change without notice
