Product Model

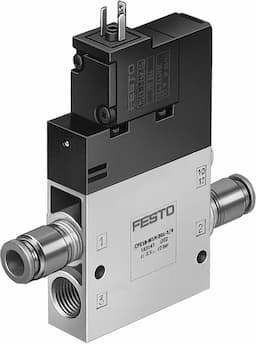

cpe18-m2h-3ol-qs-8
Key Features
- 1The Festo CPE18-M2H-3OL-QS-8 is a 5/2 monostable air spray valve designed for precise control in industrial automation systems. It features a G1/4 connection and operates at 110VAC, making it versatile for various applications.
- 2This valve offers a flow rate of 1500L/min, ensuring efficient air supply and distribution in pneumatic systems. Its internal pilot design enhances reliability and stability.
- 3The CPE18-M2H-3OL-QS-8 is built with high-quality materials, ensuring durability and resistance to moderate corrosion stress. It meets international standards for safety and performance, including CE marking and UL recognition.
- 4This valve is designed for operating pressures between 2.5 to 10 bar, making it suitable for a wide range of industrial applications. Its compact size (18 mm construction width) allows for easy integration into various systems.
- 5The Festo CPE18-M2H-3OL-QS-8 is part of Festo's extensive range of pneumatic components, offering a one-stop solution for factory automation needs. It can be easily integrated with other Festo products for seamless operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve function | 3/2, open, monostable | Actuation type | Electrical |
| Width | 18mm | Standard nominal flow rate | 850l/min |
| Pneumatic working port | QS-8 | Operating voltage | 110V AC |
| Operating pressure | 2.5bar 10bar | Structural design | Piston gate valve |
| Reset method | Pneumatic spring | Certification | c UL us - Recognized (OL) |
| Maritime classification | See certificate | CE marking (see declaration of conformity) | As per EU low voltage directive |
| UKCA marking (see declaration of conformity) | To UK instructions for electrical equipment | Certificate issuing authority | DNV-TAA000032X UL MH19482 |
| Degree of protection | IP65 With plug socket as per IEC 60529 | Nominal width | 8mm |
| Sealing principle | Soft | Mounting position | Any |
| Manual override | Detenting via accessory Non-detenting | Type of control | Pilot-controlled |
| Pilot air supply port | Internal | Flow direction | Non-reversible |
| Symbol | 00991656 | Valve position ID | Label holder |
| Lap | Overlap | Switching time off | 18ms |
| On switching time | 28ms | Duty cycle | 100% |
| Max. positive test pulse with 0 signal | 3300μs | Max. negative test pulse on 1 signal | 3100μs |
| Coil characteristics | 110 V AC: 50/60 Hz, initial power 3.0 VA, holding power 2.4 VA | Permissible voltage fluctuations | -15 % / +10 % |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 | Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Temperature of medium | -5°C 50°C | Ambient temperature | -5°C 50°C |
| Electrical connection | Form C | Type of mounting | With through-hole |
| Pilot exhaust air port 82 | M5 | Pilot air port 12 | M5 |
| Pneumatic connection 1 | QS-8 | Pneumatic connection 2 | QS-8 |
| Pneumatic connection 3 | G1/4 | Note on materials | RoHS-compliant |
| Seals material | NBR | Housing material | Die-cast aluminum |
| Manufacturer ID | 163768 |
Specifications may be subject to change without notice
