Product Model

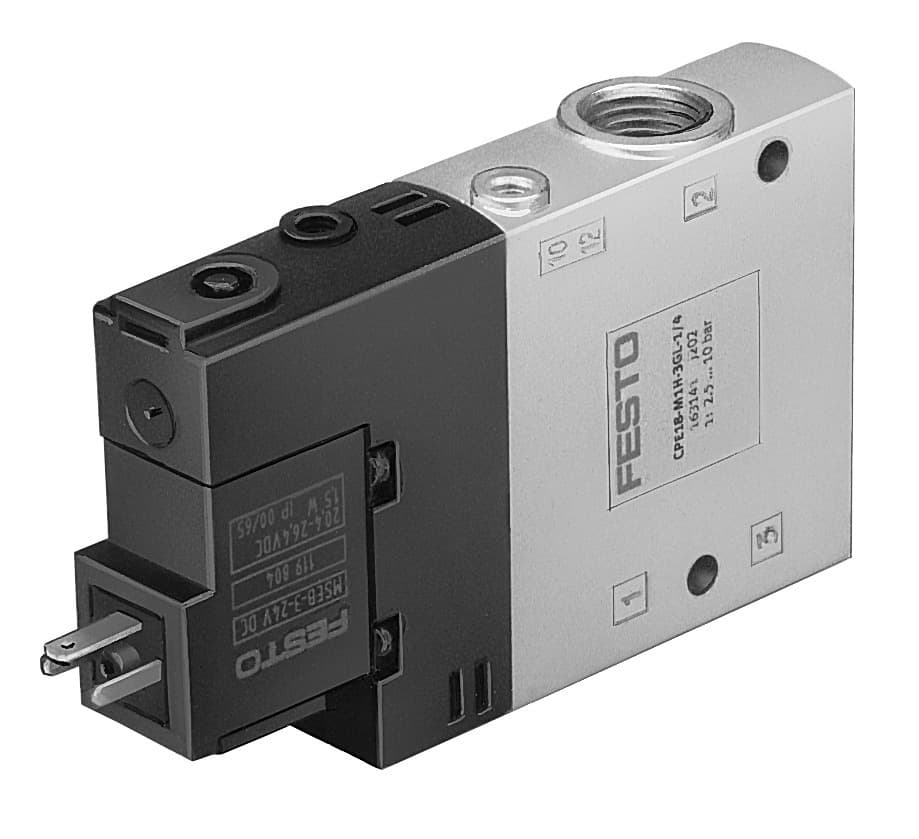

cpe18-m2h-3gl-1/4
Key Features
- 1The CPE18-M2H-3GL-1/4 solenoid valve features a compact design with high component density, making it ideal for space-constrained applications.
- 2With a nominal flow rate of 1300 l/min, this valve ensures efficient operation and reliable performance in various industrial settings.
- 3The valve is actuated electrically, providing precise control and minimizing the need for manual intervention.
- 4Suitable for 3/2-way closed, monostable operation, this valve can be used in a wide range of applications, including industrial automation and process control.
- 5Built with die-cast aluminum housing and nitrile seals, the CPE18-M2H-3GL-1/4 solenoid valve offers durability and resistance to high working pressures and temperatures.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve function | 3/2, closed, monostable | Actuation type | Electrical |
| Width | 18mm | Standard nominal flow rate | 1300l/min |
| Pneumatic working port | G1/4 | Operating voltage | 110V AC |
| Operating pressure | 2.5bar 10bar | Structural design | Piston gate valve |
| Reset method | Pneumatic spring | Certification | c UL us - Recognized (OL) |
| Maritime classification | See certificate | CE marking (see declaration of conformity) | As per EU low voltage directive |
| UKCA marking (see declaration of conformity) | To UK instructions for electrical equipment | Certificate issuing authority | DNV-TAA000032X UL MH19482 |
| Degree of protection | IP65 With plug socket as per IEC 60529 | Nominal width | 8mm |
| Sealing principle | Soft | Mounting position | Any |
| Manual override | Detenting via accessory Non-detenting | Type of control | Pilot-controlled |
| Pilot air supply port | Internal | Flow direction | Non-reversible |
| Symbol | 00991655 | Valve position ID | Label holder |
| Lap | Overlap | Switching time off | 18ms |
| On switching time | 28ms | Duty cycle | 100% |
| Max. positive test pulse with 0 signal | 3300μs | Max. negative test pulse on 1 signal | 3100μs |
| Coil characteristics | 110 V AC: 50/60 Hz, initial power 3.0 VA, holding power 2.4 VA | Permissible voltage fluctuations | -15 % / +10 % |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 | Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Temperature of medium | -5°C 50°C | Ambient temperature | -5°C 50°C |
| Product weight | 150g | Electrical connection | Form C |
| Type of mounting | With through-hole | Pilot exhaust air port 82 | M5 |
| Pilot air port 12 | M5 | Pneumatic connection 1 | G1/4 |
| Pneumatic connection 2 | G? | Pneumatic connection 3 | G1/4 |
| Note on materials | RoHS-compliant | Seals material | NBR |
| Housing material | Die-cast aluminum | Manufacturer ID | 163761 |
Specifications may be subject to change without notice
