Product Model

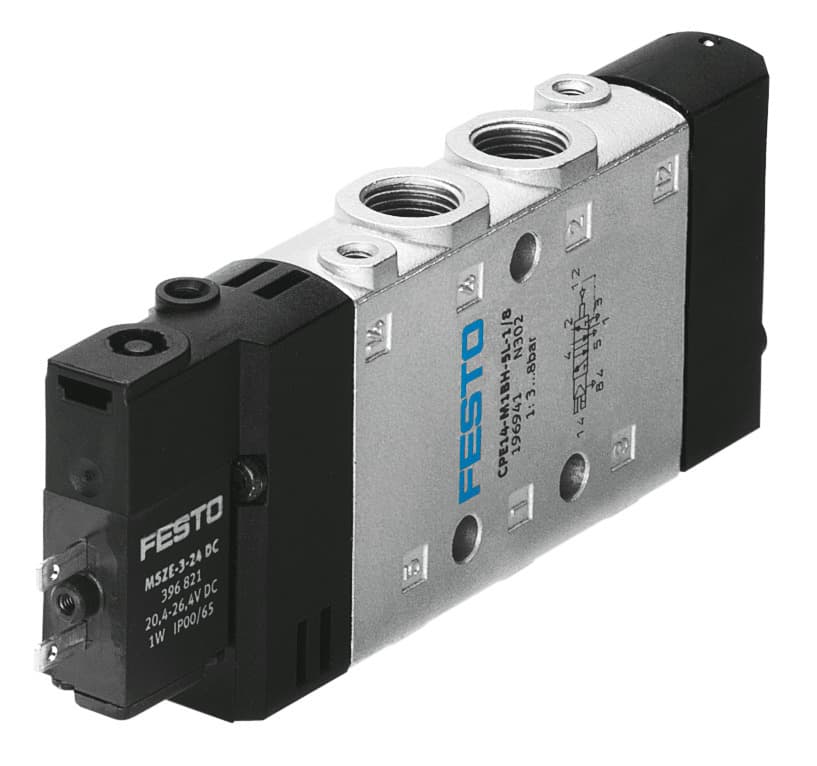

cpe14-m1bh-5ls-1/8
Key Features
- 1The Festo CPE14-M1BH-5LS-1/8 solenoid valve features a 5/2 monostable function, ensuring reliable and precise control in various industrial applications.
- 2With an electrical actuation type, this valve offers efficient and easy operation, making it a versatile choice for pneumatic systems.
- 3The valve has a standard nominal flow rate of 800 l/min and operates within a pressure range of -0.9 to 10 bar, making it suitable for diverse pneumatic needs.
- 4The CPE14-M1BH-5LS-1/8 is designed with a piston slide structure and features an air spring reset method, ensuring reliable operation and easy maintenance.
- 5This solenoid valve is certified to IP65 protection class and meets maritime classification standards, ensuring durability and reliability in harsh environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve function | 5/2, monostable | Actuation type | Electrical |
| Width | 14mm | Standard nominal flow rate | 800l/min |
| Pneumatic working port | G1/8 | Operating voltage | 24V DC |
| Operating pressure | -0.9bar 10bar | Structural design | Piston gate valve |
| Reset method | Pneumatic spring | Certification | c UL us - Recognized (OL) |
| Maritime classification | See certificate | Certificate issuing authority | DNV-TAA000032X UL MH19482 |
| Degree of protection | IP65 With plug socket as per IEC 60529 | Nominal width | 6mm |
| Exhaust air function | With flow control option | Sealing principle | Soft |
| Mounting position | Any | Manual override | Detenting via accessory Non-detenting |
| Type of control | Pilot-controlled | Pilot air supply port | External |
| Flow direction | Reversible | Symbol | 00991026 |
| Valve position ID | Label holder | Lap | Overlap |
| Pilot pressure MPa | 0.3MPa 0.8MPa | Pilot pressure | 3bar 8bar |
| Switching time off | 32ms | On switching time | 24ms |
| Duty cycle | 100% in combination with holding current reduction | Max. positive test pulse with 0 signal | 1200μs |
| Max. negative test pulse on 1 signal | 900μs | Coil characteristics | 24 V DC: 1.28 W |
| Permissible voltage fluctuations | -15 % / +10 % | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
| Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | -5°C 50°C |
| Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Ambient temperature | -5°C 50°C |
| Product weight | 95g | Electrical connection | 2-pin |
| Type of mounting | With through-hole | Pilot exhaust air port 82 | M3 |
| Pilot exhaust air port 84 | M3 | Pilot air port 12 | M3 |
| Pilot air port 14 | M3 | Pneumatic connection 1 | G1/8 |
| Pneumatic connection 2 | G1/8 | Pneumatic connection 3 | G1/8 |
| Pneumatic connection 4 | G1/8 | Pneumatic connection 5 | G1/8 |
| Note on materials | RoHS-compliant | Seals material | NBR |
| Housing material | Die-cast aluminum | Manufacturer ID | 196942 |
Specifications may be subject to change without notice
