Product Model
cpe14-m1bh-5js-qs-6
Key Features

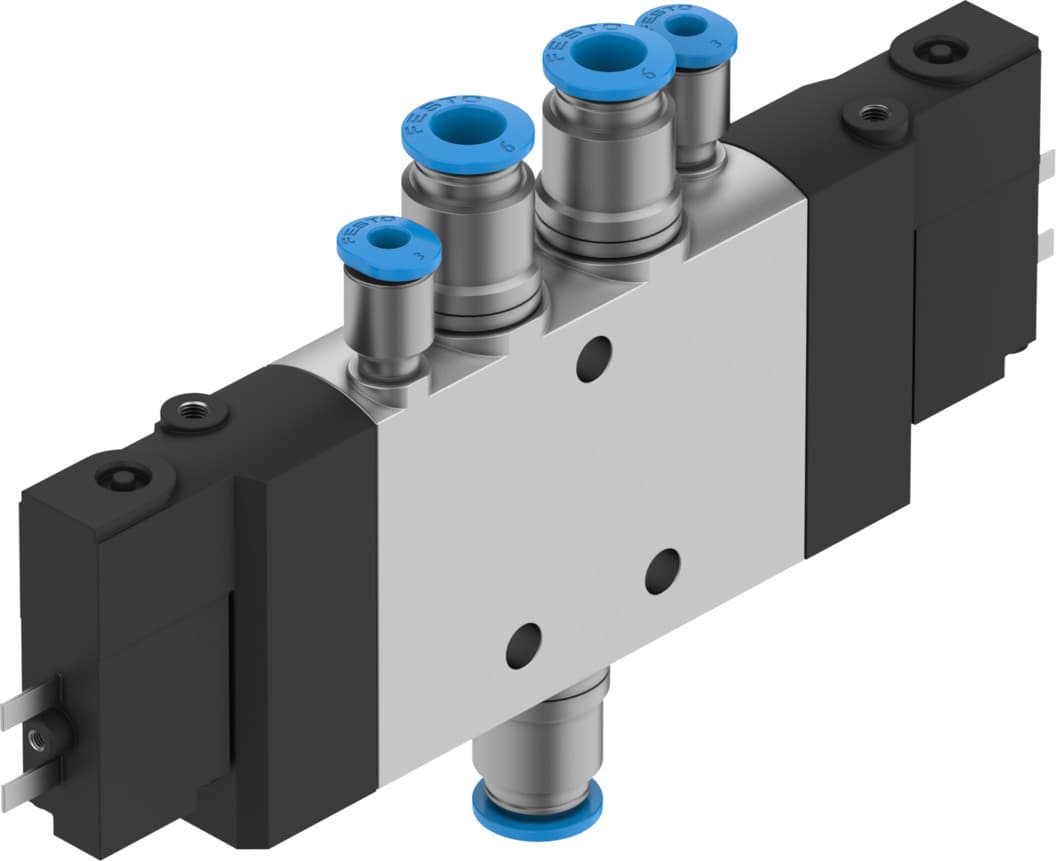

- 1The Festo CPE14-M1BH-5J-QS-6 solenoid valve offers a standard nominal flow rate of 400 l/min, making it suitable for demanding industrial applications.
- 2With a soft sealing principle and optional manual override, this valve ensures reliable operation and easy maintenance.
- 3The valve can be mounted in any position, providing flexibility in system design and installation.
- 4Equipped with flow control options and detenting via accessory, this valve offers advanced control capabilities for precise system management.
- 5The CPE14-M1BH-5J-QS-6 is c UL us - Recognized (OL) and meets maritime classification standards, ensuring compliance with various industrial regulations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve function | 5/2, bistable | Actuation type | Electrical |
| Width | 14mm | Standard nominal flow rate | 400l/min |
| Pneumatic working port | QS-6 | Operating voltage | 24V DC |
| Operating pressure | -0.9bar 10bar | Structural design | Piston gate valve |
| Certification | c UL us - Recognized (OL) | Maritime classification | See certificate |
| Certificate issuing authority | DNV-TAA000032X UL MH19482 | Degree of protection | IP65 With plug socket as per IEC 60529 |
| Nominal width | 6mm | Exhaust air function | With flow control option |
| Sealing principle | Soft | Mounting position | Any |
| Manual override | Detenting via accessory Non-detenting | Type of control | Pilot-controlled |
| Pilot air supply port | External | Flow direction | Reversible |
| Symbol | 00991016 | Valve position ID | Label holder |
| Lap | Overlap | Pilot pressure MPa | 0.2MPa 0.8MPa |
| Pilot pressure | 2bar 8bar | Changeover time | 13ms |
| Duty cycle | 100% in combination with holding current reduction | Max. positive test pulse with 0 signal | 1200μs |
| Max. negative test pulse on 1 signal | 900μs | Coil characteristics | 24 V DC: 1.28 W |
| Permissible voltage fluctuations | -15 % / +10 % | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
| Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | -5°C 50°C |
| Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Ambient temperature | -5°C 50°C |
| Electrical connection | 2-pin | Type of mounting | With through-hole |
| Pilot exhaust air port 82 | M3 | Pilot exhaust air port 84 | M3 |
| Pilot air port 12 | M3 | Pilot air port 14 | M3 |
| Pneumatic connection 1 | QS-6 | Pneumatic connection 2 | QS-6 |
| Pneumatic connection 3 | G1/8 | Pneumatic connection 4 | QS-6 |
| Pneumatic connection 5 | G1/8 | Note on materials | RoHS-compliant |
| Seals material | NBR | Housing material | Die-cast aluminum |
| Manufacturer ID | 196909 |
Specifications may be subject to change without notice
