Product Model

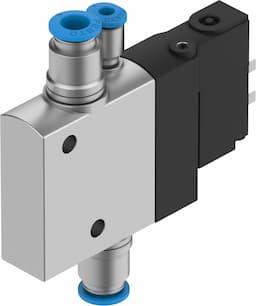

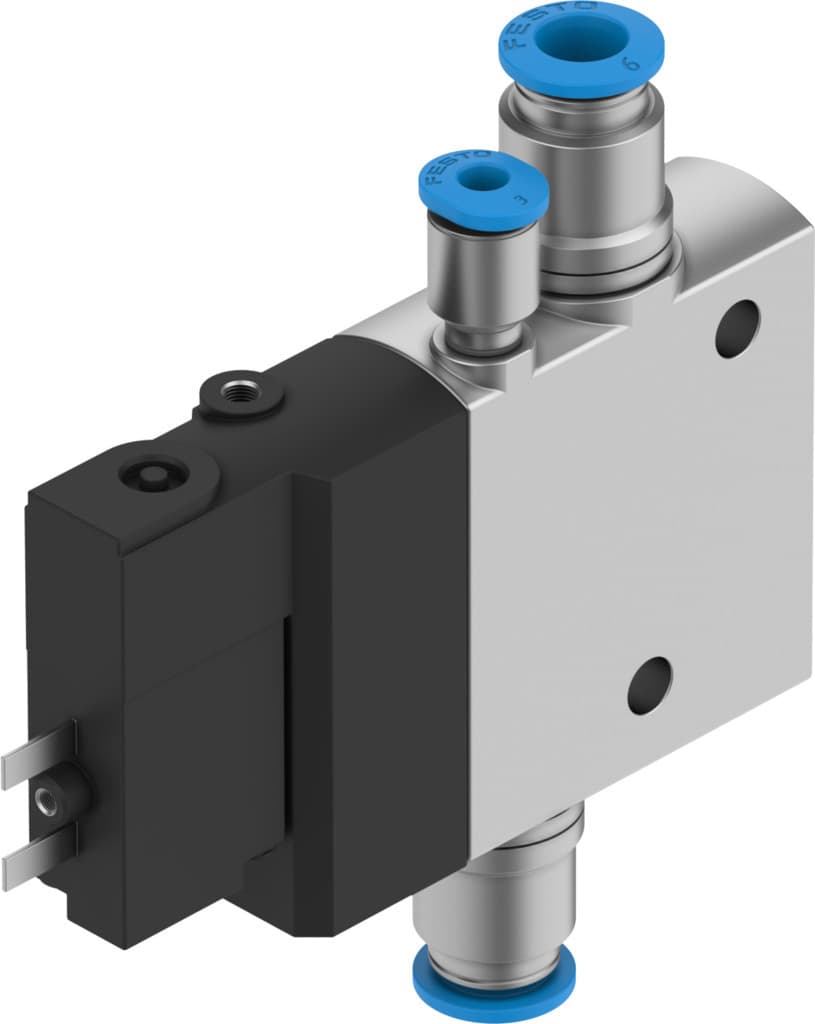

cpe14-m1bh-3gls-qs-6
Key Features
- 1The Festo CPE14-M1BH-3GL-QS-6 solenoid valve offers a flow rate of 510 liters per minute, making it suitable for demanding industrial applications.
- 2Equipped with an electric actuation system and a soft-sealing principle, this valve ensures reliable operation and minimal leakage.
- 3Constructed from die-cast aluminum with NBR seals, the valve provides robustness and durability in various operating conditions.
- 4The valve features a through-hole type of mounting, allowing for easy integration into various industrial automation systems.
- 5The Festo CPE14-M1BH-3GL-QS-6 meets international standards, including c UL us recognition and compliance with IP65 protection class.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve function | 3/2, closed, monostable | Actuation type | Electrical |
| Width | 14mm | Standard nominal flow rate | 510l/min |
| Pneumatic working port | QS-6 | Operating voltage | 24V DC |
| Operating pressure | -0.9bar 10bar | Structural design | Piston gate valve |
| Reset method | Pneumatic spring | Certification | c UL us - Recognized (OL) |
| Maritime classification | See certificate | Certificate issuing authority | DNV-TAA000032X UL MH19482 |
| Degree of protection | IP65 With plug socket as per IEC 60529 | Nominal width | 6mm |
| Sealing principle | Soft | Mounting position | Any |
| Manual override | Detenting via accessory Non-detenting | Type of control | Pilot-controlled |
| Pilot air supply port | External | Flow direction | Non-reversible |
| Symbol | 00991405 | Valve position ID | Label holder |
| Lap | Overlap | Pilot pressure MPa | 0.25MPa 0.8MPa |
| Pilot pressure | 2.5bar 8bar | Switching time off | 27ms |
| On switching time | 16ms | Duty cycle | 100% in combination with holding current reduction |
| Max. positive test pulse with 0 signal | 1200μs | Max. negative test pulse on 1 signal | 900μs |
| Coil characteristics | 24 V DC: 1.28 W | Permissible voltage fluctuations | -15 % / +10 % |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 | Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Temperature of medium | -5°C 50°C | Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Ambient temperature | -5°C 50°C | Electrical connection | 2-pin |
| Type of mounting | With through-hole | Pilot exhaust air port 82 | M3 |
| Pilot air port 12 | M3 | Pneumatic connection 1 | QS-6 |
| Pneumatic connection 2 | QS-6 | Pneumatic connection 3 | G1/8 |
| Note on materials | RoHS-compliant | Seals material | NBR |
| Housing material | Die-cast aluminum | Manufacturer ID | 196889 |
Specifications may be subject to change without notice
