Product Model
cpe10-rp3
Key Features

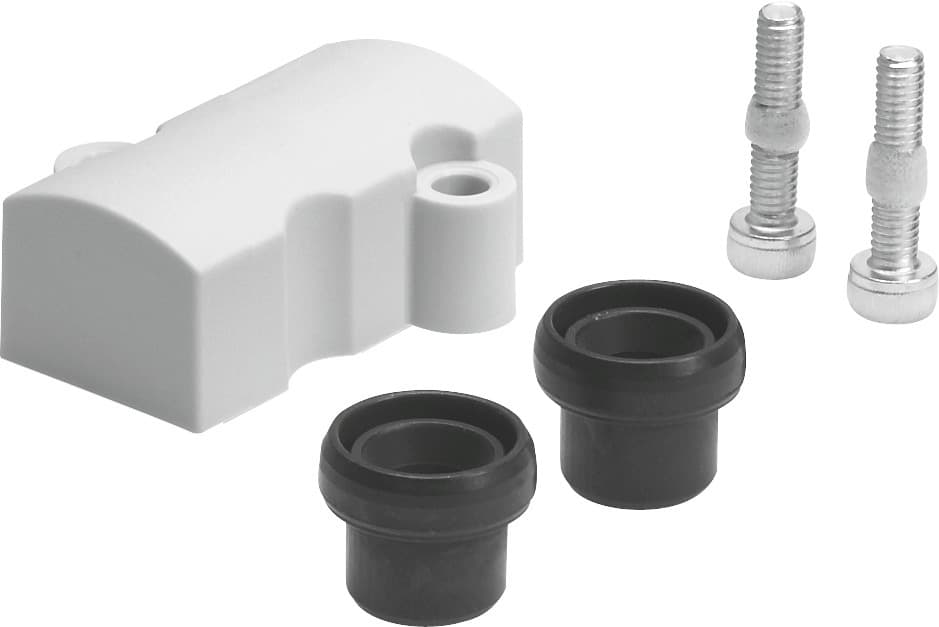

- 1The CPE10-RP3 retaining bracket set is made from high-alloy stainless steel, ensuring high durability and resistance to corrosion.
- 2The set includes galvanized steel screws for added strength and stability in various industrial applications.
- 3The retaining bracket set features NBR seals, guaranteeing leak-free assembly and optimal performance in pneumatic systems.
- 4The CPE10-RP3 is RoHS-compliant, meeting environmental regulations for safe and sustainable use.
- 5Designed for use with Festo's Compact Performance (CP10) series valves, this retaining bracket set provides a secure and reliable mounting solution.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Max. tightening torque | 1.2Nm | Product weight | 7g |
| Type of mounting | Screw-in | Note on materials | RoHS-compliant |
| Cover plate material | PA | Seals material | NBR |
| Material of screws | Steel Galvanized | Manufacturer ID | 550580 |
Specifications may be subject to change without notice
