Product Model
cpe10-m1ch-5js-m7
Key Features

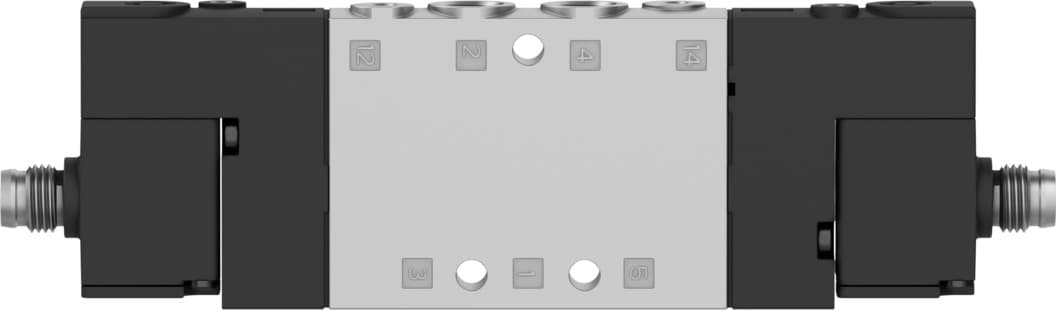

- 1The Festo CPE10-M1CH-5JS-M7 is a 5/2-way bistable solenoid valve designed for high-performance applications, ensuring reliable operation in various pneumatic systems.
- 2This valve features electrical actuation, making it easy to control and integrate into your automation setup. It operates at 24V DC with a power consumption of 1.28W.
- 3With a width of 10mm, the CPE10-M1CH-5JS-M7 is compact and versatile, fitting into a variety of pneumatic systems without taking up too much space.
- 4The valve has a standard nominal flow rate of 350 l/min, making it suitable for applications requiring high airflow rates. It also supports lubricated operation for enhanced performance.
- 5Built with robust materials, this valve can withstand operating pressures from -0.09 MPa to 1 MPa and temperatures ranging from -5°C to 50°C. It also meets stringent vibration and shock resistance standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve function | 5/2, bistable | Actuation type | Electrical |
| Width | 10mm | Standard nominal flow rate | 350l/min |
| Pneumatic working port | M7 | Operating voltage | 24V DC |
| Operating pressure | -0.9bar 10bar | Structural design | Piston gate valve |
| Certification | c UL us - Recognized (OL) | Maritime classification | See certificate |
| Certificate issuing authority | DNV-TAA000032X UL MH19482 | Degree of protection | IP65 IP67 With plug socket as per IEC 60529 |
| Nominal width | 4mm | Exhaust air function | With flow control option |
| Sealing principle | Soft | Mounting position | Any |
| Manual override | Detenting via accessory Non-detenting | Type of control | Pilot-controlled |
| Pilot air supply port | External | Flow direction | Reversible |
| Symbol | 00991016 | Valve position ID | Label holder |
| Lap | Overlap | Pilot pressure MPa | 0.25MPa 0.8MPa |
| Pilot pressure | 2.5bar 8bar | Changeover time | 8ms |
| Duty cycle | 100% | Max. positive test pulse with 0 signal | 1200μs |
| Max. negative test pulse on 1 signal | 900μs | Coil characteristics | 24 V DC: 1.28 W |
| Permissible voltage fluctuations | -15 % / +10 % | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
| Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | -5°C 50°C |
| Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Ambient temperature | -5°C 50°C |
| Max. tightening torque plug | 0.4Nm | Product weight | 68g |
| Electrical connection | 4-pin M8x1 | Type of mounting | With through-hole |
| Pilot exhaust air port 82 | M3 | Pilot exhaust air port 84 | M3 |
| Pilot air port 12 | M3 | Pilot air port 14 | M3 |
| Pneumatic connection 1 | M7 | Pneumatic connection 2 | M7 |
| Pneumatic connection 3 | M7 | Pneumatic connection 4 | M7 |
| Pneumatic connection 5 | M7 | Note on materials | RoHS-compliant |
| Seals material | NBR | Housing material | Die-cast aluminum |
| Manufacturer ID | 550226 |
Specifications may be subject to change without notice
