Product Model
cpe10-m1ch-3ols-m7
Key Features

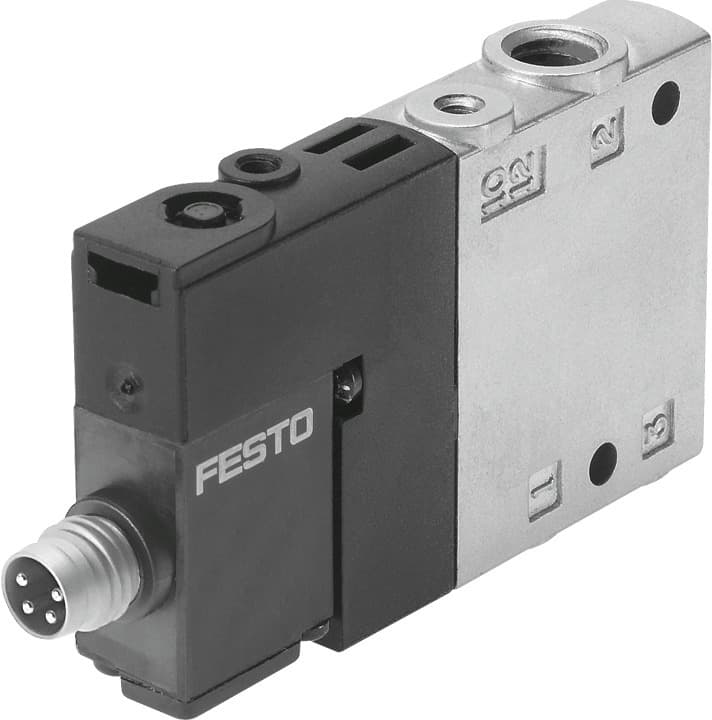

- 1The Festo CPE10-M1CH-3OLS-M7 is an electrically actuated 3/2-way solenoid valve, ideal for various pneumatic applications with a standard nominal flow rate of 400 l/min.
- 2This valve features a compact design with a width of 10 mm, making it suitable for space-constrained environments. It operates within a wide operating pressure range of -0.09 MPa to 1 MPa.
- 3The CPE10-M1CH-3OLS-M7 is certified for maritime use and meets IP65 and IP67 protection standards, ensuring reliability in harsh environments. It also supports lubricated operation for extended service life.
- 4With a switching time of 14 ms and a duty cycle of 100%, this valve provides fast and efficient operation. It is compatible with compressed air as per ISO 8573-1:2010 and operates within an ambient temperature range of -5 °C to 50 °C.
- 5The Festo CPE10-M1CH-3OLS-M7 is designed with a soft mounting principle, allowing for easy installation and minimal vibration. It also features a non-detenting type of control, ensuring consistent performance in various applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve function | 3/2, open, monostable | Actuation type | Electrical |
| Width | 10mm | Standard nominal flow rate | 400l/min |
| Pneumatic working port | M7 | Operating voltage | 24V DC |
| Operating pressure | -0.9bar 10bar | Structural design | Piston gate valve |
| Reset method | Pneumatic spring | Certification | c UL us - Recognized (OL) |
| Maritime classification | See certificate | Certificate issuing authority | DNV-TAA000032X UL MH19482 |
| Degree of protection | IP65 IP67 With plug socket as per IEC 60529 | Nominal width | 4mm |
| Sealing principle | Soft | Mounting position | Any |
| Manual override | Detenting via accessory Non-detenting | Type of control | Pilot-controlled |
| Pilot air supply port | External | Flow direction | Non-reversible |
| Symbol | 00991402 | Valve position ID | Label holder |
| Lap | Overlap | Pilot pressure MPa | 0.25MPa 0.8MPa |
| Pilot pressure | 2.5bar 8bar | Switching time off | 14ms |
| On switching time | 14ms | Duty cycle | 100% |
| Max. positive test pulse with 0 signal | 1200μs | Max. negative test pulse on 1 signal | 900μs |
| Coil characteristics | 24 V DC: 1.28 W | Permissible voltage fluctuations | -15 % / +10 % |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 | Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Temperature of medium | -5°C 50°C | Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Ambient temperature | -5°C 50°C | Max. tightening torque plug | 0.4Nm |
| Product weight | 40g | Electrical connection | 4-pin M8x1 |
| Type of mounting | With through-hole | Pilot exhaust air port 82 | M3 |
| Pilot air port 12 | M3 | Pneumatic connection 1 | M7 |
| Pneumatic connection 2 | M7 | Pneumatic connection 3 | M7 |
| Note on materials | RoHS-compliant | Seals material | NBR |
| Housing material | Die-cast aluminum | Manufacturer ID | 550236 |
Specifications may be subject to change without notice
