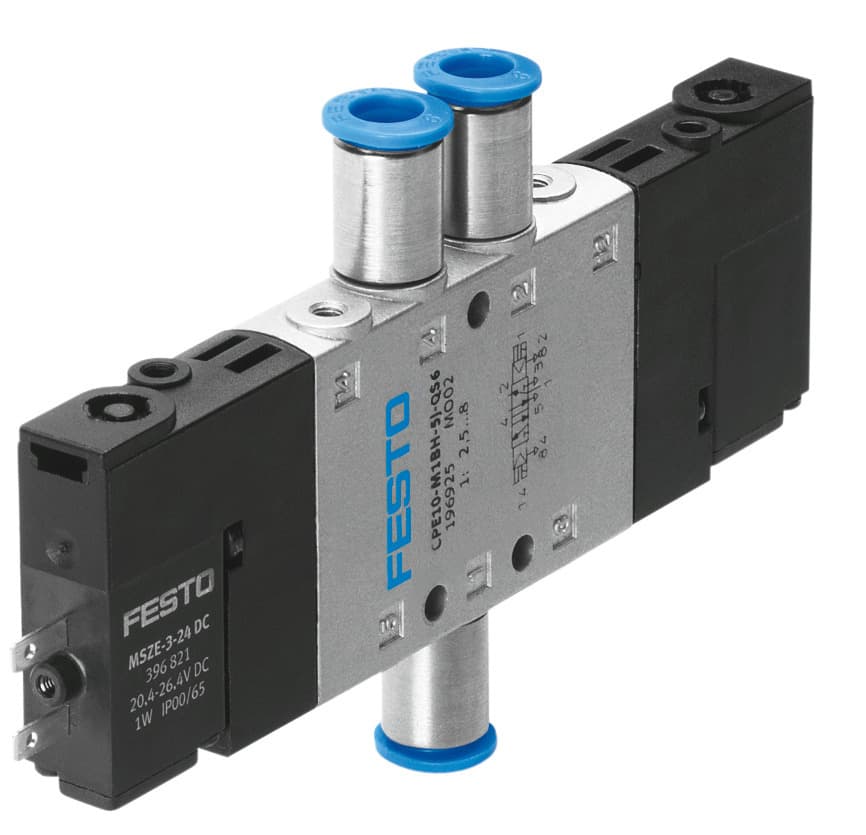

Product Model
cpe10-m1bh-5j-qs-6
Key Features
- 1The Festo CPE10-M1BH-5J-QS-6 solenoid valve is a 5/2 bistable valve designed for high-performance pneumatic applications, ensuring reliable operation in various industrial settings.
- 2With a standard nominal flow rate of 320 l/min, this valve is capable of handling significant air flow, making it suitable for demanding automation tasks.
- 3Constructed with a robust design and a width of 10 mm, the CPE10-M1BH-5J-QS-6 offers compactness and durability, fitting seamlessly into modern industrial automation systems.
- 4The valve operates within a pressure range of 2.5 to 8 bar, providing flexibility in various pneumatic applications and ensuring it can handle diverse operating conditions.
- 5Featuring an IP65 protection class and compliance with UL and maritime classification standards, the CPE10-M1BH-5J-QS-6 ensures high reliability and safety in harsh environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve function | 5/2, bistable | Actuation type | Electrical |
| Width | 10mm | Standard nominal flow rate | 320l/min |
| Pneumatic working port | QS-6 | Operating voltage | 24V DC |
| Operating pressure | 2.5bar 8bar | Structural design | Piston gate valve |
| Certification | c UL us - Recognized (OL) | Maritime classification | See certificate |
| Certificate issuing authority | DNV-TAA000032X UL MH19482 | Degree of protection | IP65 With plug socket as per IEC 60529 |
| Nominal width | 4mm | Exhaust air function | With flow control option |
| Sealing principle | Soft | Mounting position | Any |
| Manual override | Detenting via accessory Non-detenting | Type of control | Pilot-controlled |
| Pilot air supply port | Internal | Flow direction | Non-reversible |
| Symbol | 00991013 | Valve position ID | Label holder |
| Lap | Overlap | Changeover time | 8ms |
| Duty cycle | 100% in combination with holding current reduction | Max. positive test pulse with 0 signal | 1200μs |
| Max. negative test pulse on 1 signal | 900μs | Coil characteristics | 24 V DC: 1.28 W |
| Permissible voltage fluctuations | -15 % / +10 % | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
| Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | -5°C 50°C |
| Ambient temperature | -5°C 50°C | Electrical connection | 2-pin |
| Type of mounting | With through-hole | Pilot exhaust air port 82 | M3 |
| Pilot exhaust air port 84 | M3 | Pilot air port 12 | M3 |
| Pilot air port 14 | M3 | Pneumatic connection 1 | QS-6 |
| Pneumatic connection 2 | QS-6 | Pneumatic connection 3 | M7 |
| Pneumatic connection 4 | QS-6 | Pneumatic connection 5 | M7 |
| Note on materials | RoHS-compliant | Seals material | NBR |
| Housing material | Die-cast aluminum | Manufacturer ID | 196877 |
Specifications may be subject to change without notice
