Product Model

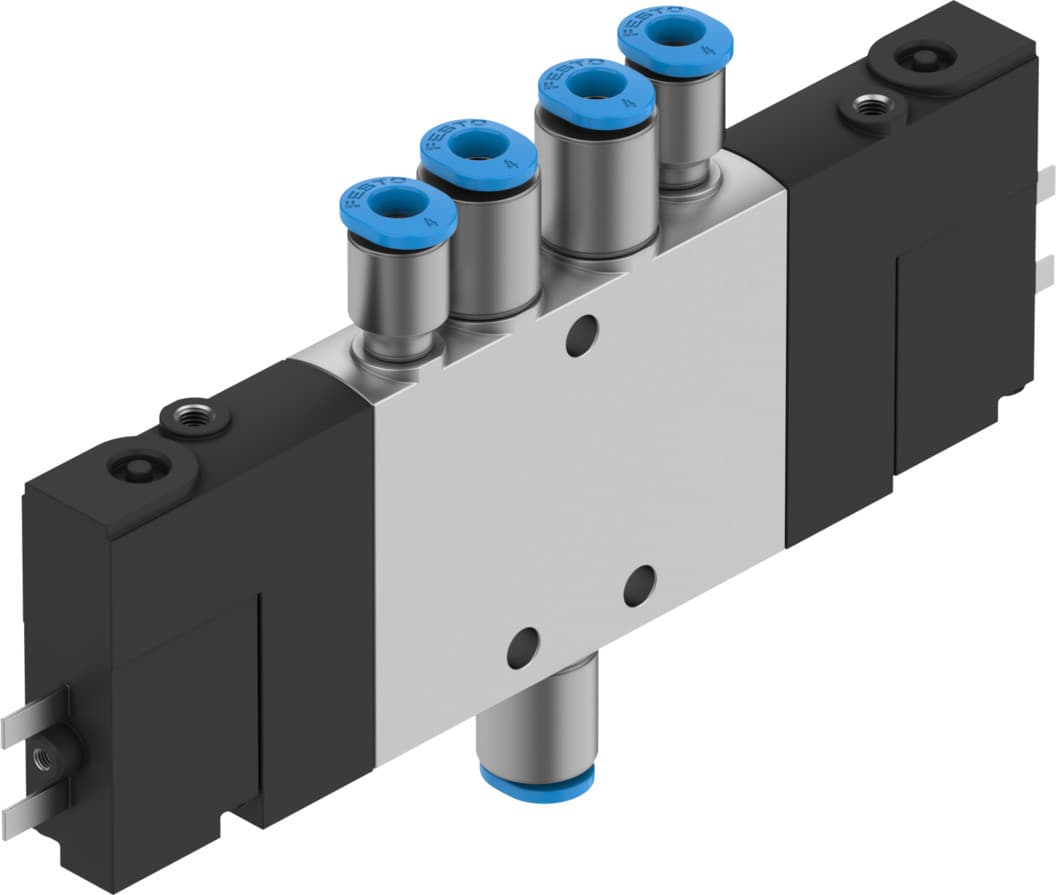

cpe10-m1bh-5/3es-qs4-b
Key Features
- 1The CPE10-M1BH-5/3ES-QS4-B solenoid valve features a compact design with high component density, making it suitable for space-constrained applications.
- 2This valve is designed for 5/3 exhausted operations, providing precise control over flow and exhaust air functions.
- 3The valve is electrically actuated, ensuring reliable and efficient operation with a standard nominal flow rate of 180 l/min.
- 4The CPE10-M1BH-5/3ES-QS4-B uses a soft sealing principle, which enhances its durability and reduces the risk of leakage.
- 5The valve is designed with an IP65 protection class, ensuring it can withstand harsh industrial environments and maintain its performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve function | 5/3, exhausted | Actuation type | Electrical |
| Width | 10mm | Standard nominal flow rate | 180l/min |
| Pneumatic working port | QS-4 | Operating voltage | 24V DC |
| Operating pressure | -0.9bar 10bar | Structural design | Piston gate valve |
| Reset method | Mechanical spring | Certification | c UL us - Recognized (OL) |
| Maritime classification | See certificate | Certificate issuing authority | DNV-TAA000032X UL MH19482 |
| Degree of protection | IP65 With plug socket as per IEC 60529 | Nominal width | 4mm |
| Exhaust air function | With flow control option | Sealing principle | Soft |
| Mounting position | Any | Manual override | Detenting via accessory Non-detenting |
| Type of control | Pilot-controlled | Pilot air supply port | External |
| Flow direction | Reversible | Symbol | 00991032 |
| Valve position ID | Label holder | Lap | Overlap |
| Pilot pressure MPa | 0.3MPa 0.8MPa | Pilot pressure | 3bar 8bar |
| Switching time off | 20ms | On switching time | 16ms |
| Duty cycle | 100% in combination with holding current reduction | Max. positive test pulse with 0 signal | 1200μs |
| Max. negative test pulse on 1 signal | 900μs | Coil characteristics | 24 V DC: 1.28 W |
| Permissible voltage fluctuations | -15 % / +10 % | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
| Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | -5°C 50°C |
| Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Ambient temperature | -5°C 50°C |
| Electrical connection | 2-pin | Type of mounting | With through-hole |
| Pilot exhaust air port 82 | M3 | Pilot exhaust air port 84 | M3 |
| Pilot air port 12 | M3 | Pilot air port 14 | M3 |
| Pneumatic connection 1 | QS-4 | Pneumatic connection 2 | QS-4 |
| Pneumatic connection 3 | M7 | Pneumatic connection 4 | QS-4 |
| Pneumatic connection 5 | M7 | Note on materials | RoHS-compliant |
| Seals material | NBR | Housing material | Die-cast aluminum |
| Manufacturer ID | 533150 |
Specifications may be subject to change without notice
