Product Model
amte-m-lh-g38
Key Features

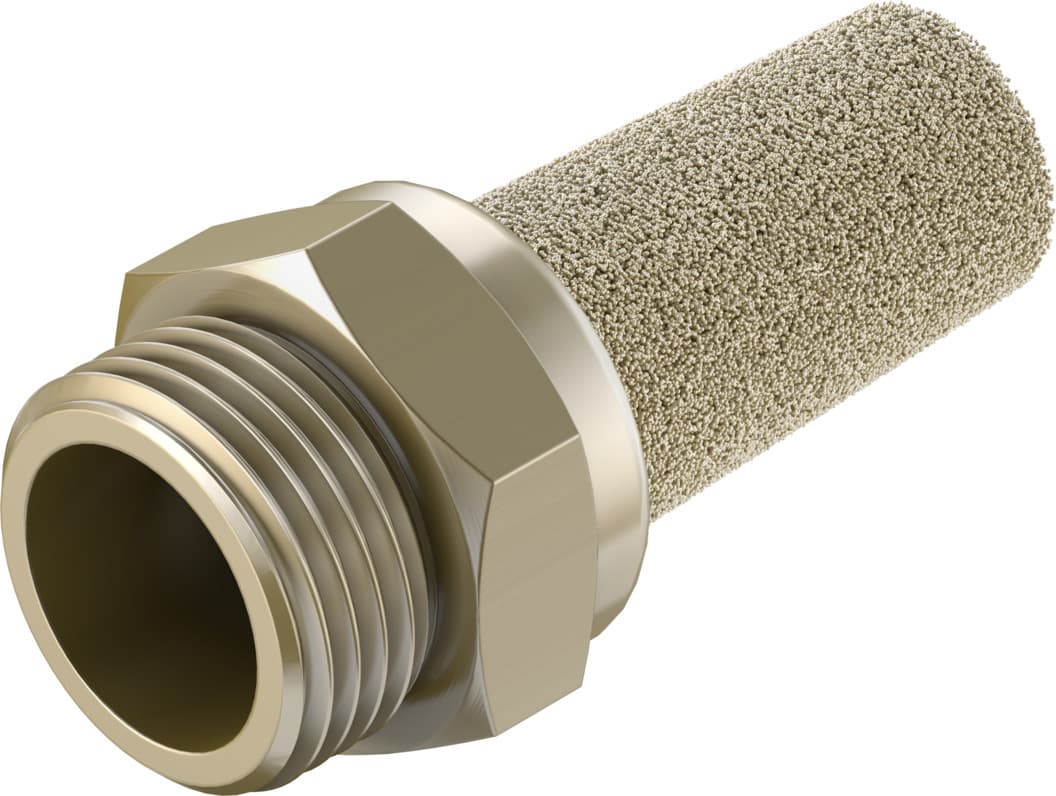

- 1The AMTE-M-LH-G38 pneumatic silencer effectively reduces noise levels in pneumatic systems, ensuring a quieter working environment.
- 2With a flow rate of 5430 l/min, this silencer is ideal for applications requiring significant airflow while maintaining noise control.
- 3Designed for use in ATEX Zones 1, 2, 21, and 22, making it suitable for hazardous environments.
- 4Built with a bronze silencer insert and brass threaded plug, ensuring durability and resistance to corrosion.
- 5Can be mounted in any position, offering flexibility in system design and installation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Mounting position | Any | Pack size | 10 |
| Symbol | 00991473 | Operating pressure | 0bar 10bar |
| Flow rate with respect to atmosphere | 5430l/min | Explosion prevention and protection | Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX) |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Information on operating and pilot media | Operation with oil lubrication possible |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Noise level | 82dB(A) | Ambient temperature | -40°C 80°C |
| Product weight | 26g | Pneumatic connection | G3/8 |
| Cushioning insert material | Bronze | Material of screwed plug | Brass |
| Note on materials | RoHS-compliant | Manufacturer ID | 1205862 |
Specifications may be subject to change without notice
