Product Model
amte-m-h-g38
Key Features

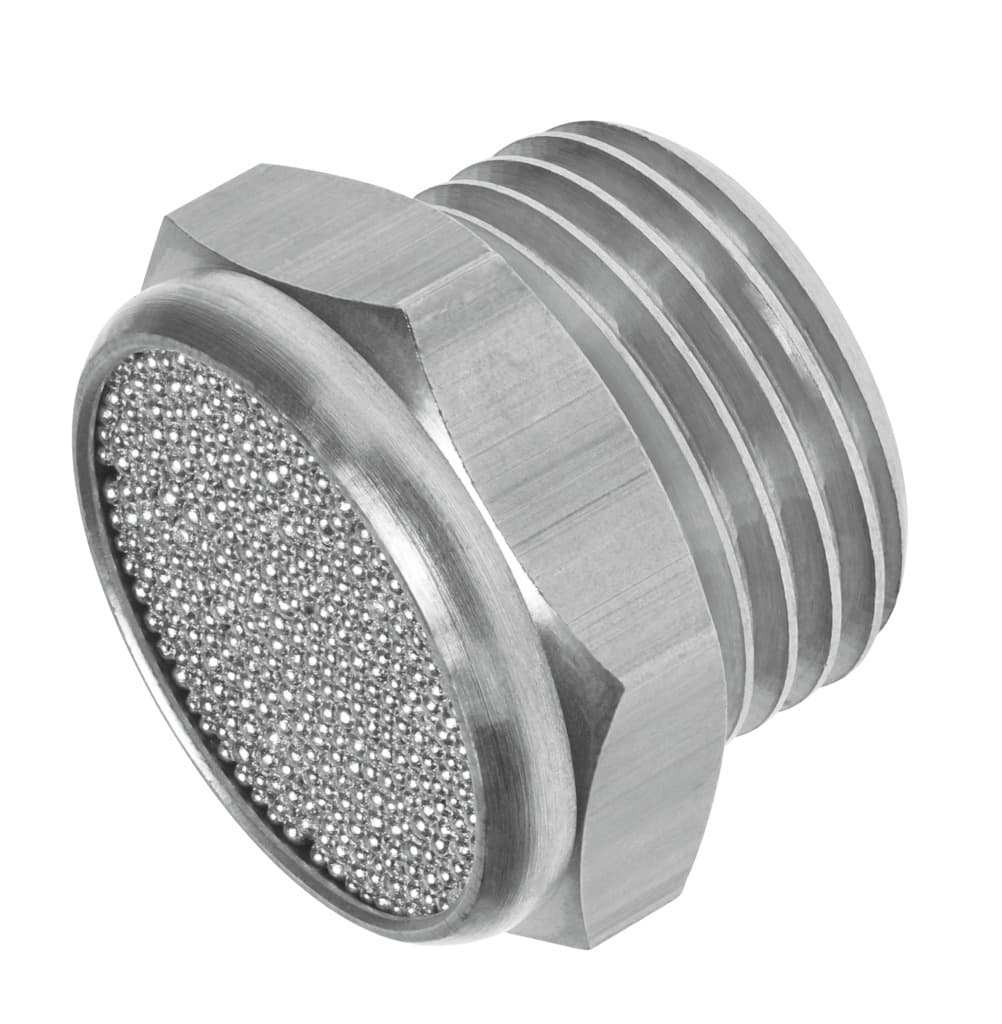

- 1The Festo AMTE-M-H-G38 pneumatic silencer is designed to reduce noise levels in pneumatic systems, making it ideal for applications where sound reduction is crucial.
- 2This silencer features a brass threaded body and a bronze silencer insert, ensuring durability and effective noise reduction.
- 3The AMTE-M-H-G38 operates within a pressure range of 0 to 10 bar, making it versatile for various pneumatic system applications.
- 4The silencer is compatible with compressed air as per ISO 8573-1:2010 and can be used in lubricated pneumatic systems, enhancing its operational flexibility.
- 5The Festo AMTE-M-H-G38 pneumatic silencer meets ATEX Zone 1, 2, 21, and 22 standards for explosion protection, ensuring safe operation in hazardous environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Mounting position | Any | Pack size | 10 |
| Symbol | 00991473 | Operating pressure | 0bar 10bar |
| Flow rate with respect to atmosphere | 1545l/min | Explosion prevention and protection | Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX) |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Information on operating and pilot media | Operation with oil lubrication possible |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Noise level | 92dB(A) | Ambient temperature | -40°C 80°C |
| Product weight | 17g | Pneumatic connection | G3/8 |
| Cushioning insert material | Bronze | Material of screwed plug | Brass |
| Note on materials | RoHS-compliant | Manufacturer ID | 1206624 |
Specifications may be subject to change without notice
