Product Model
aevulq-50- -a-p-a-s2
Key Features

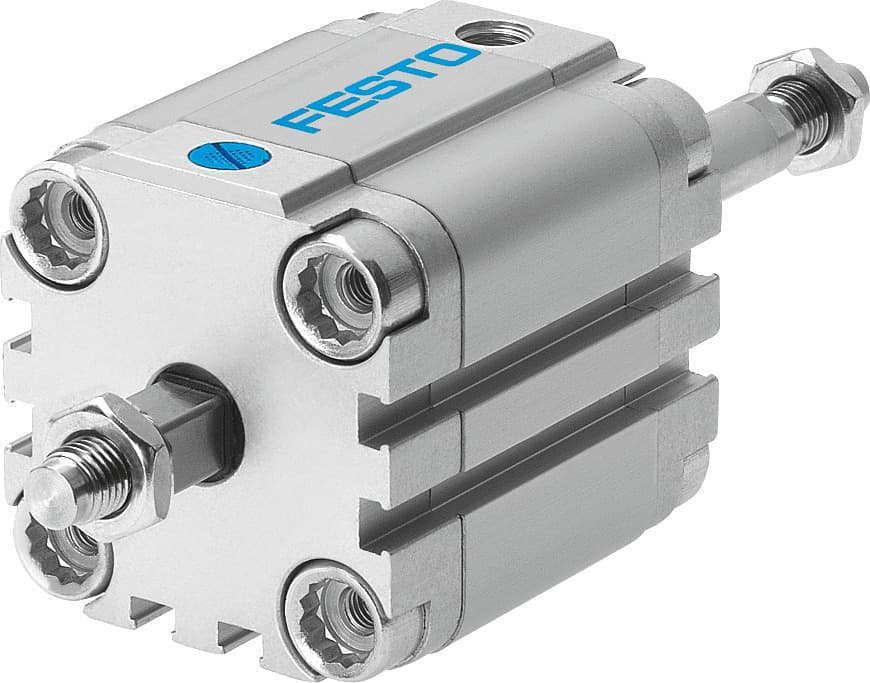

- 1The Festo AEVULQ-50-25-A-P-A pneumatic cylinder offers a stroke length of 25 mm, making it suitable for precise and controlled movements in industrial settings.
- 2Equipped with flexible cushioning rings/plates at both ends, this cylinder provides smooth operation and reduces wear and tear on the components.
- 3Designed for single-acting pushing action, the AEVULQ-50-25-A-P-A is ideal for applications requiring a one-way motion, such as in assembly lines or material handling.
- 4Compatible with compressed air according to ISO 8573-1:2010 [7:4:4], this cylinder ensures reliable operation in various industrial environments.
- 5Featuring a square piston rod for protection against torque and guide, the AEVULQ-50-25-A-P-A ensures stable and secure operation in demanding applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 1mm 25mm | Piston diameter | 50 mm |
| Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
| Mode of operation | Single-acting | Piston rod end | External thread |
| Structural design | Piston Piston rod | Position sensing | For proximity sensor |
| Symbol | 00991202 | Variants | Through piston rod |
| Protection against torsion/guide | Square piston rod | Operating pressure | 17.4psi 145psi |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20°C 80°C | Impact energy in the end positions | 0.64J |
| Theoretical force at 6 bar, advancing | 999N | Type of mounting | Optionally: With through-hole With accessories |
| Pneumatic connection | G1/8 | Flange screws material | Steel, galvanized |
| Cover material | Wrought aluminum alloy | Material of dynamic seals | NBR TPE-U(PU) |
| Piston rod material | High-alloy steel | Material of cylinder barrel | Wrought aluminum alloy |
| Manufacturer ID | 156376 |
Specifications may be subject to change without notice
