Product Model
aevulq-50- -a-p-a
Key Features

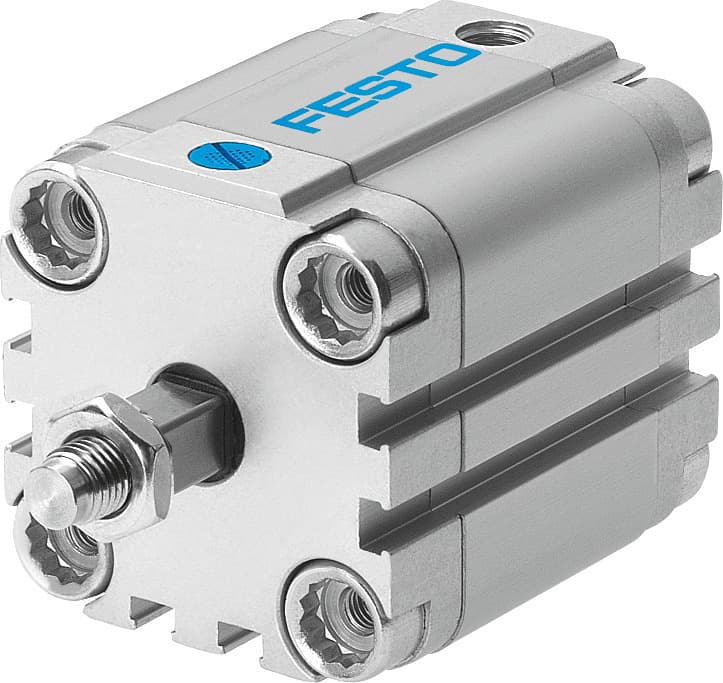

- 1The Festo AEVULQ-50-20-P-A pneumatic cylinder offers precise control and reliable operation, making it ideal for various industrial applications.
- 2Equipped with flexible cushioning rings/plates at both ends, this cylinder ensures smooth operation and reduces wear and tear.
- 3The AEVULQ-50-20-P-A can be assembled in any position, providing flexibility in system design and installation.
- 4Designed for single-acting pushing action, this cylinder is perfect for applications requiring a straightforward, efficient motion.
- 5With a moderate corrosion stress classification (CRC 2), the AEVULQ-50-20-P-A is suitable for use in environments where some corrosion may be present.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 1mm 25mm | Piston diameter | 50 mm |
| Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
| Mode of operation | Pushing Single-acting | Piston rod end | External thread |
| Structural design | Piston Piston rod | Position sensing | For proximity sensor |
| Symbol | 00991729 | Variants | Piston rod at one end |
| Protection against torsion/guide | Square piston rod | Operating pressure | 14.5psi 145psi |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20°C 80°C | Impact energy in the end positions | 0.64J |
| Theoretical force at 6 bar, advancing | 1121N | Moving mass at 0?mm stroke | 112g |
| Additional moving mass per 10?mm stroke | 16g | Basic weight with 0?mm stroke | 560g |
| Additional weight per 10?mm stroke | 72g | Type of mounting | Optionally: With through-hole With accessories |
| Pneumatic connection | G1/8 | Flange screws material | Steel, galvanized |
| Cover material | Wrought aluminum alloy | Material of dynamic seals | NBR TPE-U(PU) |
| Piston rod material | High-alloy steel | Material of cylinder barrel | Wrought aluminum alloy |
| Manufacturer ID | 156366 |
Specifications may be subject to change without notice
