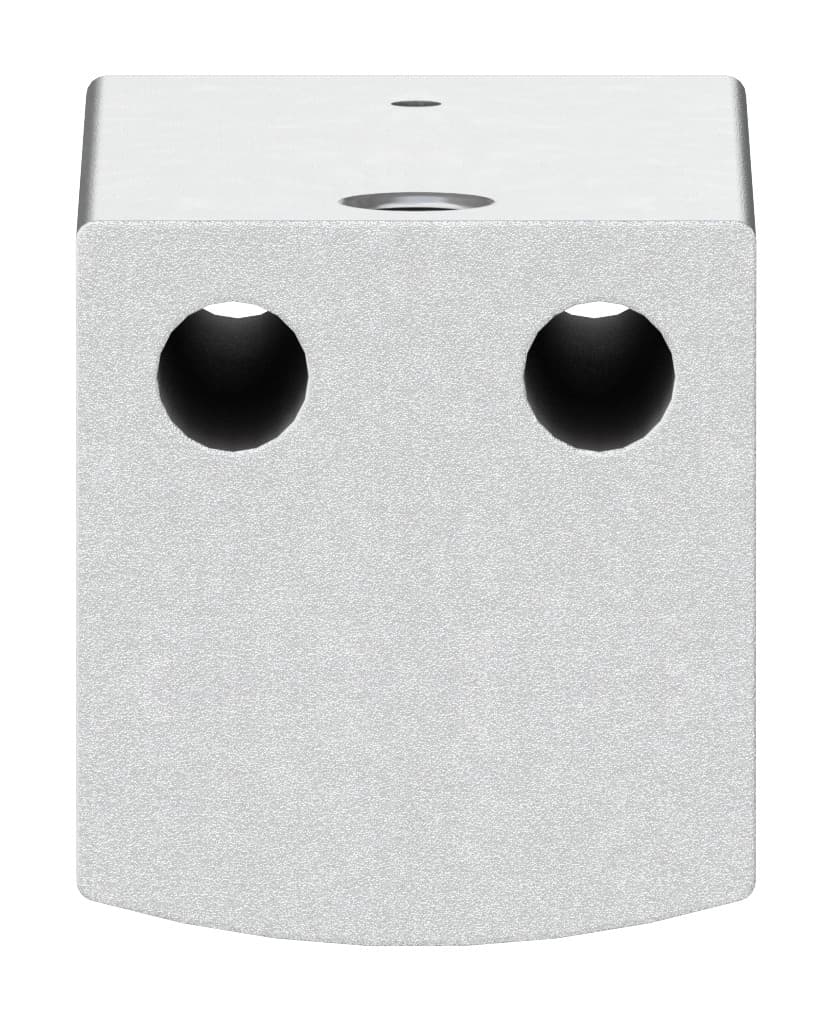

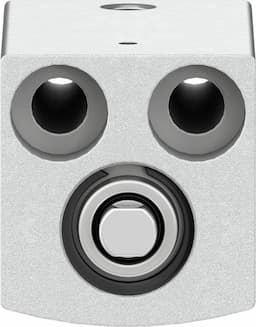

Product Model
aevc-6-10-p
Key Features
- 1The AEVC-6-10-P features a 10mm stroke and 6mm piston diameter, ensuring precise and reliable pneumatic actuation in various industrial applications.
- 2Equipped with elastic cushioning rings/plates at both ends, this cylinder provides smooth operation and reduces wear and tear.
- 3With a corrosion resistance class of CRC 1, the AEVC-6-10-P is designed to withstand low corrosion stress, making it suitable for a wide range of environments.
- 4Available for mounting via through-hole or with accessories, this cylinder offers flexibility in installation, catering to different application needs.
- 5Compatible with compressed air as per ISO 8573-1:2010 [7:4:4], this cylinder ensures efficient operation in various pneumatic systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 10mm | Piston diameter | 6 mm |
| Spring resetting force with piston rod in retracted position | 3N | Cushioning | Elastic cushioning rings/pads at both ends |
| Mounting position | Any | Mode of operation | Pushing Single-acting |
| Structural design | Piston Piston rod | Position sensing | None |
| Symbol | 00991730 | Operating pressure | 36.25psi 116psi |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20°C 80°C | Theoretical force at 6 bar, advancing | 11N |
| Moving mass | 1.4g | Product weight | 11g |
| Type of mounting | Optionally: With through-hole With accessories | Pneumatic connection | M3 |
| Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy Anodized |
| Seals material | NBR TPE-U(PU) | Housing material | Wrought aluminum alloy Anodized |
| Piston rod material | High-alloy steel | Manufacturer ID | 188059 |
Specifications may be subject to change without notice
