Product Model
aevc-4-5-p
Key Features

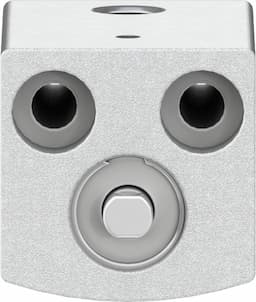

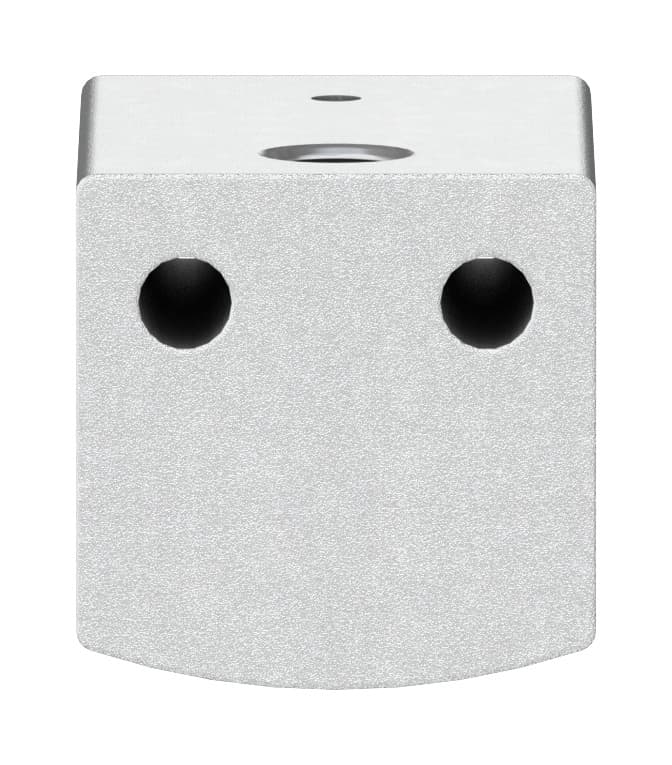

- 1The AEVC-4-5-P short-stroke cylinder from Festo features a piston diameter of 4 mm and a stroke length of 5 mm, making it ideal for applications requiring precise movement.
- 2This cylinder offers flexible cushioning rings/plates at both ends, ensuring smooth operation and reducing wear on the system.
- 3With a spring return force of 1 N, the AEVC-4-5-P is designed for single-acting pushing action, providing consistent and reliable performance.
- 4The cylinder operates within a pressure range of 2.5 to 8 bar, using compressed air in accordance with ISO8573-1:2010 standards, ensuring compatibility with various pneumatic systems.
- 5The AEVC-4-5-P is constructed with corrosion-resistant materials, classified as CRC 1, making it suitable for applications in environments with low corrosion stress.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 5mm | Piston diameter | 4 mm |
| Spring resetting force with piston rod in retracted position | 1N | Cushioning | Elastic cushioning rings/pads at both ends |
| Mounting position | Any | Mode of operation | Pushing Single-acting |
| Structural design | Piston Piston rod | Position sensing | None |
| Symbol | 00991730 | Operating pressure | 36.25psi 116psi |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20°C 80°C | Theoretical force at 6 bar, advancing | 4.9N |
| Moving mass | 0.2g | Product weight | 4g |
| Type of mounting | Optionally: With through-hole With accessories | Pneumatic connection | M3 |
| Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy Anodized |
| Seals material | HNBR NBR | Housing material | Wrought aluminum alloy Anodized |
| Piston rod material | Wrought aluminum alloy Anodized | Manufacturer ID | 188051 |
Specifications may be subject to change without notice
