Product Model
aevc-4-2,5-a-p
Key Features

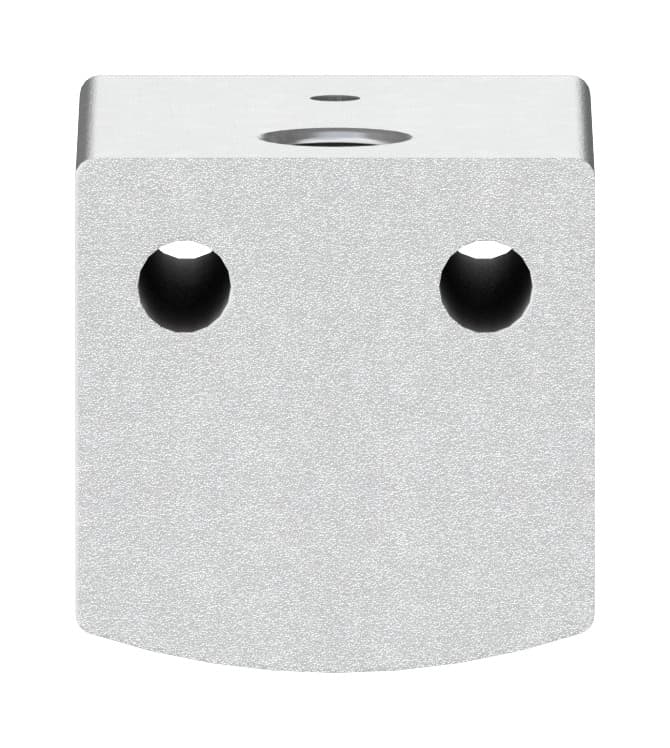

- 1The Festo AEVC-4-2,5-A-P short-stroke cylinder offers a stroke length of 2.5 mm, making it ideal for applications requiring precise and controlled movements.
- 2With a piston diameter of 4 mm, this cylinder provides a robust and reliable performance in various industrial settings.
- 3The spring return force with the retracted piston rod is 1 N, ensuring smooth and consistent operation without the need for external power.
- 4The cylinder features elastic cushioning rings/plates at both ends, providing enhanced cushioning and reducing the impact of piston movement.
- 5Designed for use with compressed air to ISO 8573-1:2010, this cylinder ensures reliable operation in a wide range of pneumatic systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 2.5mm | Piston diameter | 4 mm |
| Spring resetting force with piston rod in retracted position | 1N | Cushioning | Elastic cushioning rings/pads at both ends |
| Mounting position | Any | Mode of operation | Pushing Single-acting |
| Structural design | Piston Piston rod | Position sensing | None |
| Symbol | 00991730 | Operating pressure | 36.25psi 116psi |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20°C 80°C | Theoretical force at 6 bar, advancing | 4.9N |
| Moving mass | 0.15g | Product weight | 3g |
| Type of mounting | Optionally: With through-hole With accessories | Pneumatic connection | M3 |
| Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy Anodized |
| Seals material | HNBR NBR | Housing material | Wrought aluminum alloy Anodized |
| Piston rod material | Wrought aluminum alloy Anodized | Manufacturer ID | 188052 |
Specifications may be subject to change without notice
