Product Model

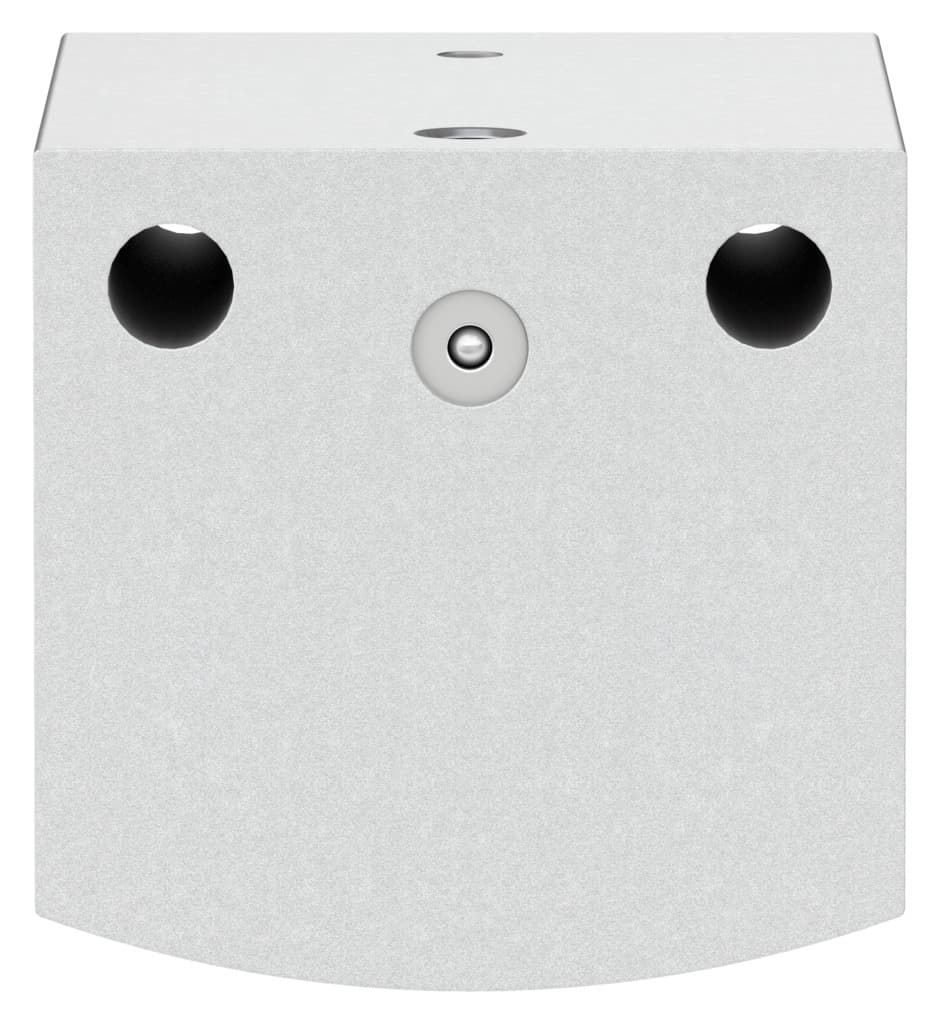

aevc-25-25-i-p
Key Features
- 1High-Quality Pneumatic Solution: Designed for reliable operation with compressed air.
- 2Elastic Cushioning: Features elastic cushioning rings/pads at both ends for smooth operation.
- 3Low Corrosion Stress: Corrosion resistance class (CRC) 1 ensures durability in various environments.
- 4Versatile Mounting: Can be mounted via through-hole or accessories, allowing for flexible installation.
- 5Wide Operating Range: Operates at ambient temperatures from -20°C to +80°C and pressures from 1.5 to 10 bar.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 25mm | Piston diameter | 25 mm |
| Spring resetting force with piston rod in retracted position | 15N | Cushioning | Elastic cushioning rings/pads at both ends |
| Mounting position | Any | Mode of operation | Pushing Single-acting |
| Structural design | Piston Piston rod | Position sensing | None |
| Symbol | 00991730 | Operating pressure | 21.75psi 145psi |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20°C 80°C | Theoretical force at 6 bar, advancing | 268N |
| Moving mass | 37g | Product weight | 162g |
| Type of mounting | Optionally: With through-hole With accessories | Pneumatic connection | M5 |
| Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy Anodized |
| Seals material | NBR TPE-U(PU) | Housing material | Wrought aluminum alloy Anodized |
| Piston rod material | High-alloy steel | Manufacturer ID | 188165 |
Specifications may be subject to change without notice
