Product Model

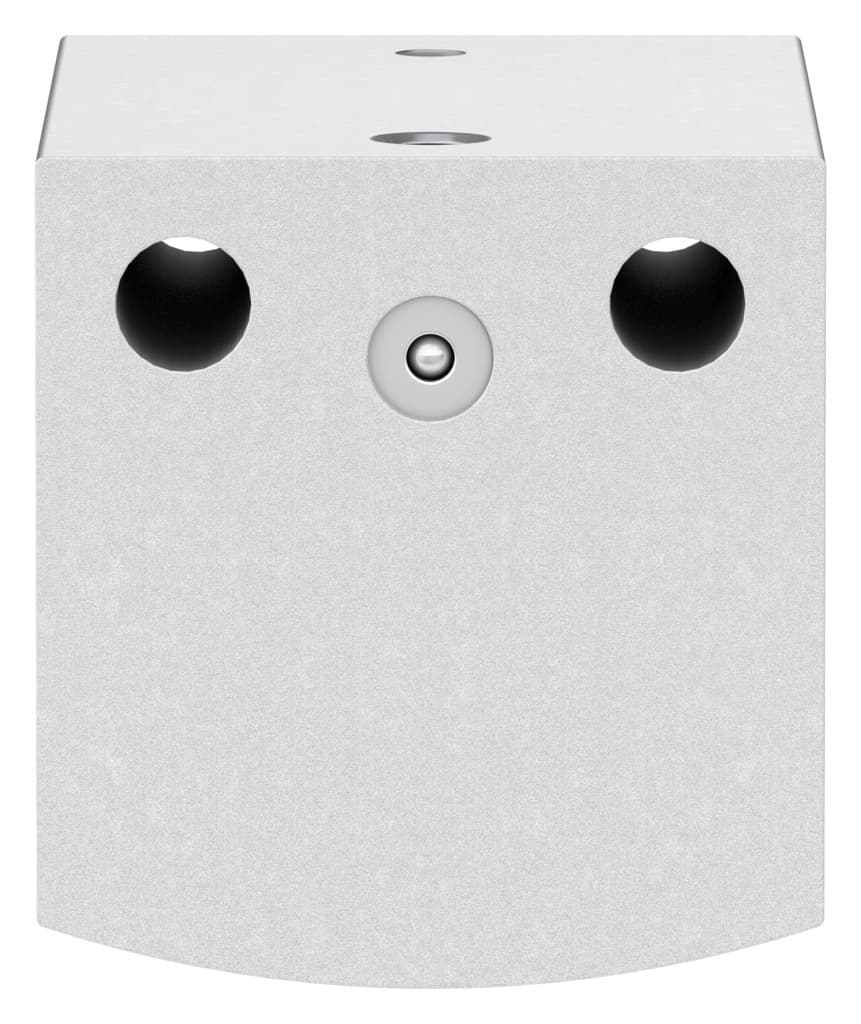

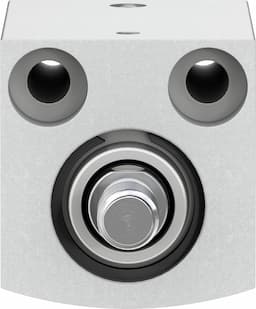

aevc-20-25-a-p
Key Features
- 1Compact Design: Ideal for space-constrained applications with a stroke length of 25 mm.
- 2Elastic Cushioning: Ensures smooth operation and reduces wear on the cylinder.
- 3Robust Construction: Made from durable materials like wrought aluminum alloy and high-alloy steel for long-lasting performance.
- 4Low Corrosion Stress: Meets CRC class 1 standards, suitable for applications with low corrosion stress.
- 5Versatile Mounting Options: Can be mounted via through-hole or accessories, offering flexibility in installation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 25mm | Piston diameter | 20 mm |
| Spring resetting force with piston rod in retracted position | 10N | Cushioning | Elastic cushioning rings/pads at both ends |
| Mounting position | Any | Mode of operation | Pushing Single-acting |
| Structural design | Piston Piston rod | Position sensing | None |
| Symbol | 00991730 | Operating pressure | 21.75psi 145psi |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20°C 80°C | Theoretical force at 6 bar, advancing | 170N |
| Moving mass | 32g | Product weight | 132g |
| Type of mounting | Optionally: With through-hole With accessories | Pneumatic connection | M5 |
| Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy Anodized |
| Seals material | NBR TPE-U(PU) | Housing material | Wrought aluminum alloy Anodized |
| Piston rod material | High-alloy steel | Manufacturer ID | 188139 |
Specifications may be subject to change without notice
