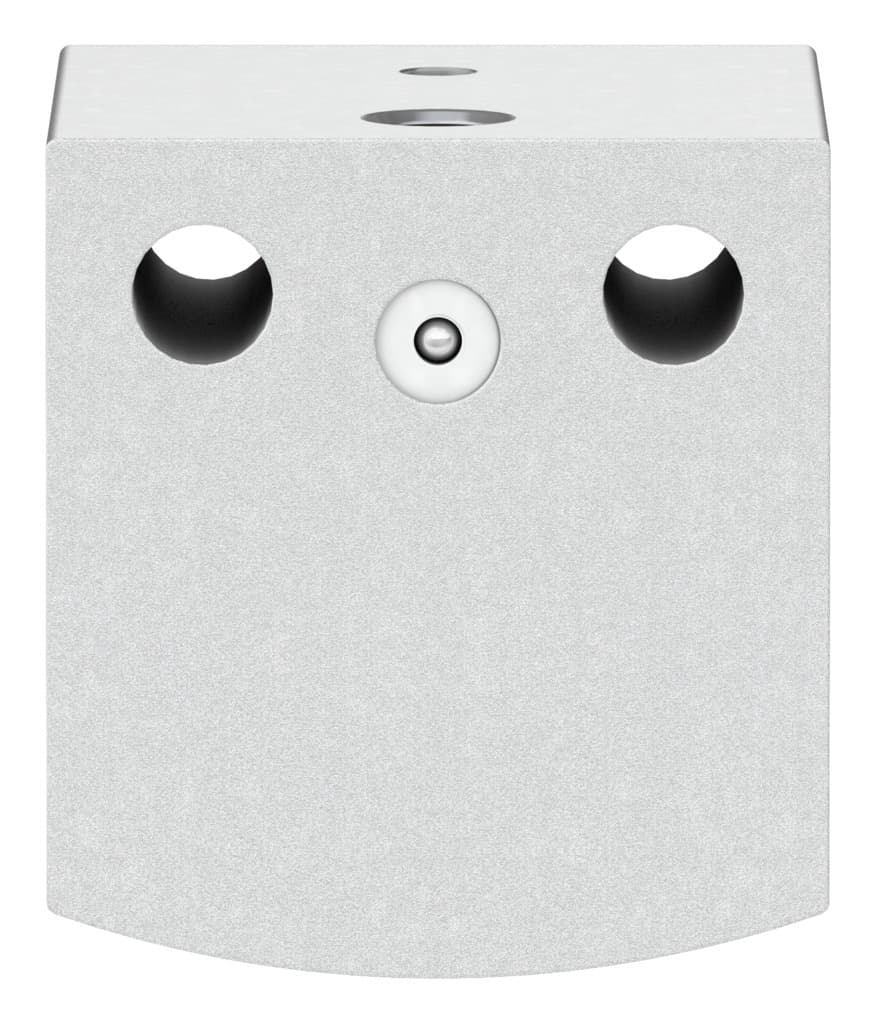

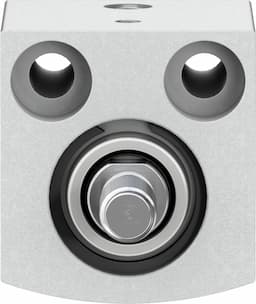

Product Model
aevc-16-10-a-p
Key Features
- 1The AEVC-16-10-A-P delivers a strong theoretical force at 6 bar, advancing with 112 N, ideal for demanding tasks.
- 2Equipped with flexible cushioning rings/plates at both ends for smooth operation and reduced wear.
- 3Can be mounted via through-holes or accessories, allowing for flexible installation in various applications.
- 4Features a corrosion resistance class of 1, suitable for components requiring low corrosion resistance.
- 5Operates within a wide temperature range of -20 to +80°C and pressure range of 2 to 8 bar.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 10mm | Piston diameter | 16 mm |
| Spring resetting force with piston rod in retracted position | 5N | Cushioning | Elastic cushioning rings/pads at both ends |
| Mounting position | Any | Mode of operation | Pushing Single-acting |
| Structural design | Piston Piston rod | Position sensing | None |
| Symbol | 00991730 | Operating pressure | 21.75psi 145psi |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20°C 80°C | Theoretical force at 6 bar, advancing | 112N |
| Moving mass | 11g | Product weight | 49g |
| Type of mounting | Optionally: With through-hole With accessories | Pneumatic connection | M5 |
| Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy Anodized |
| Seals material | NBR TPE-U(PU) | Housing material | Wrought aluminum alloy Anodized |
| Piston rod material | High-alloy steel | Manufacturer ID | 188106 |
Specifications may be subject to change without notice
