Product Model

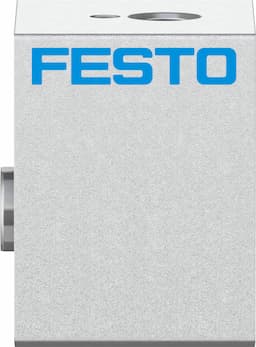

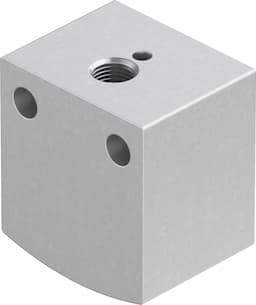

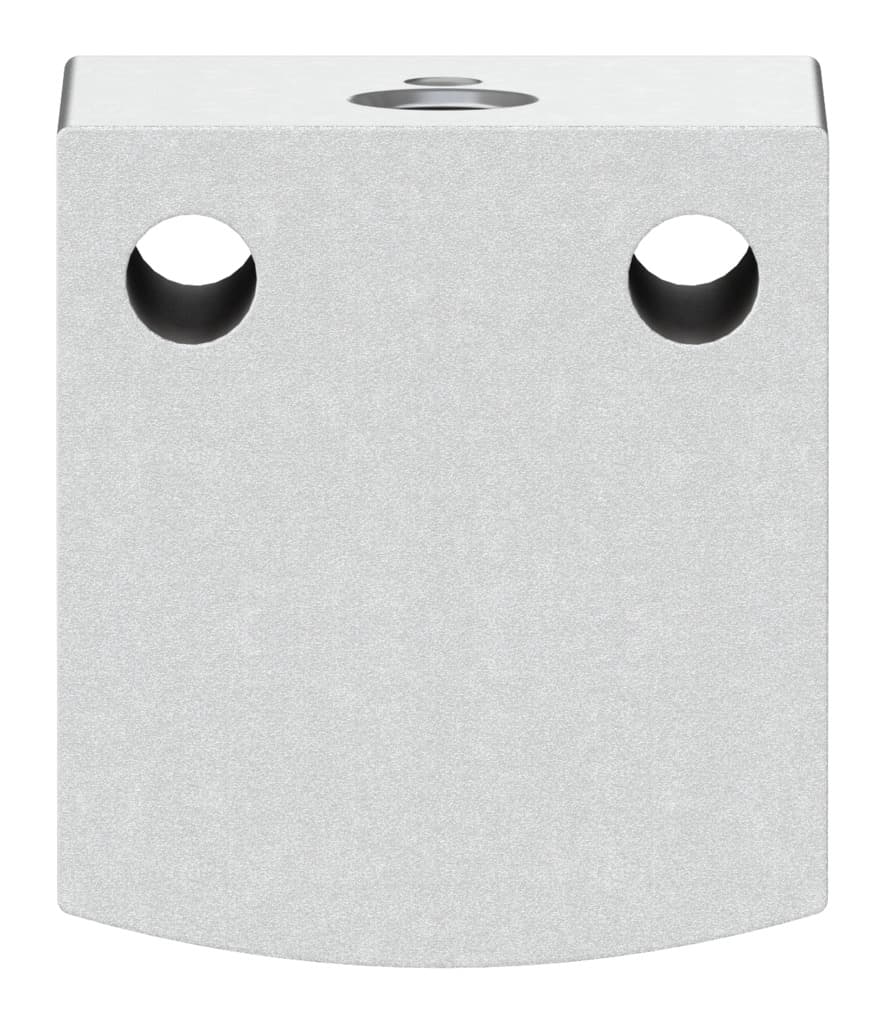

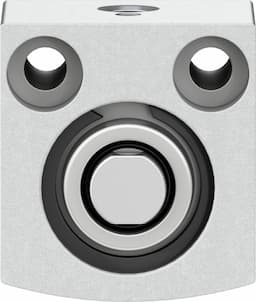

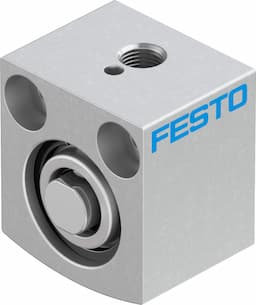

aevc-12-5-p
Key Features
- 1The Festo AEVC-12-5-P short-stroke cylinder delivers high forces in a compact size, making it ideal for applications where space is limited.
- 2This cylinder can be installed in any position, offering flexibility in system design and integration.
- 3Equipped with elastic silencer rings for double-sided dampening, reducing noise and vibration during operation.
- 4Designed to operate with compressed air to ISO 8573-1:2010 [7:4:4], ensuring reliable performance in various environments.
- 5Constructed with corrosion-resistant materials, including anodized aluminum and high-alloyed steel, to withstand harsh conditions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 5mm | Piston diameter | 12 mm |
| Spring resetting force with piston rod in retracted position | 4N | Cushioning | Elastic cushioning rings/pads at both ends |
| Mounting position | Any | Mode of operation | Pushing Single-acting |
| Structural design | Piston Piston rod | Position sensing | None |
| Symbol | 00991730 | Operating pressure | 21.75psi 145psi |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20°C 80°C | Theoretical force at 6 bar, advancing | 61.5N |
| Moving mass | 4.4g | Product weight | 19g |
| Type of mounting | Optionally: With through-hole With accessories | Pneumatic connection | M5 |
| Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy Anodized |
| Seals material | NBR TPE-U(PU) | Housing material | Wrought aluminum alloy Anodized |
| Piston rod material | High-alloy steel | Manufacturer ID | 530566 |
Specifications may be subject to change without notice
