Product Model
aevc-12-5-i-p

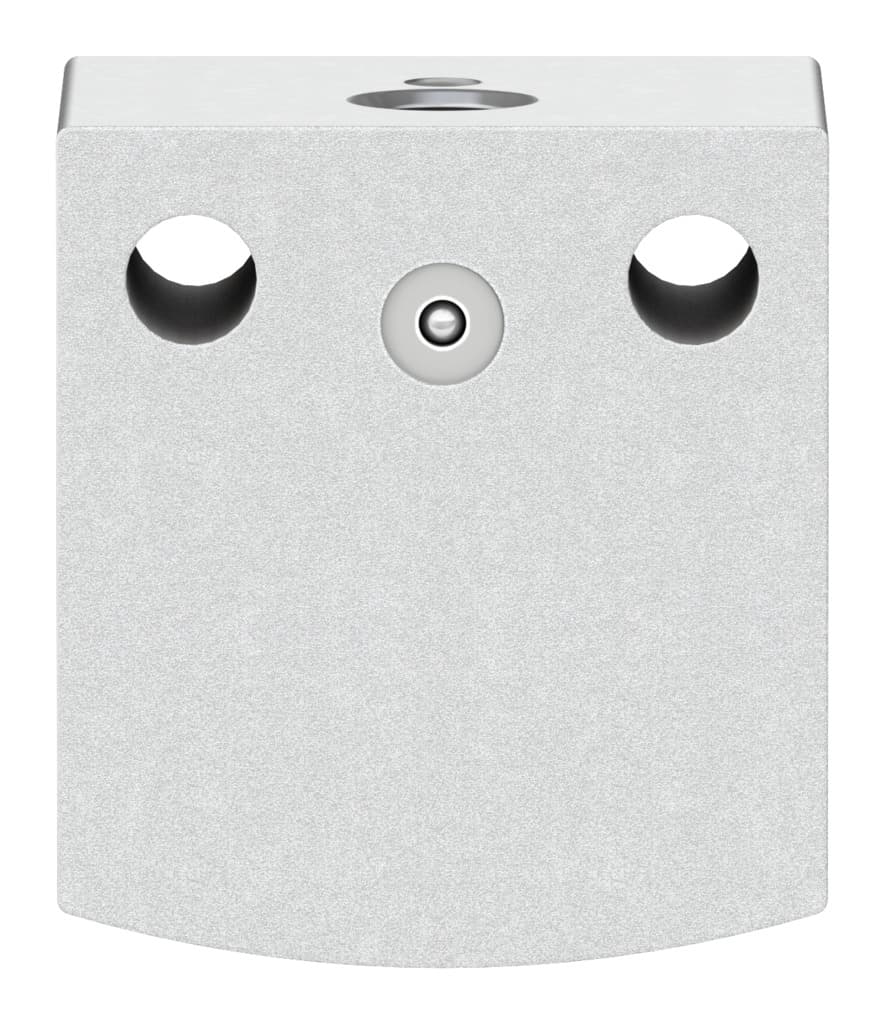

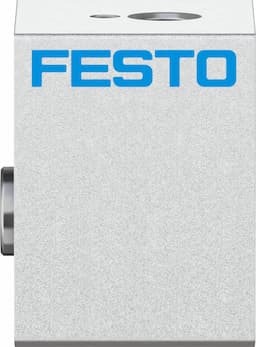

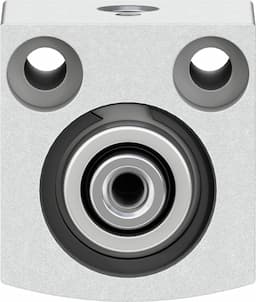

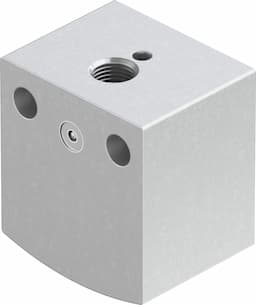

Key Features

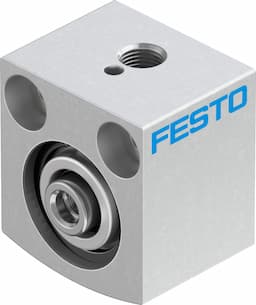

- 1The Festo AEVC-12-5-I-P short-stroke cylinder offers a precise stroke length of 5 mm, making it ideal for applications requiring minimal movement.
- 2With a piston diameter of 12 mm, this cylinder provides a robust and reliable operation, ensuring consistent performance in various environments.
- 3The cylinder features elastic cushioning rings/plates at both ends, providing smooth and controlled movement, reducing wear and tear on the system.
- 4Designed for single-acting pushing action, the AEVC-12-5-I-P is versatile and can be mounted in any position, offering flexibility in system design.
- 5Operating within a pressure range of 1.5 to 10 bar, this cylinder is compatible with compressed air according to ISO 8573-1:2010 [7:4:4], ensuring reliable operation in a variety of pneumatic systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 5mm | Piston diameter | 12 mm |
| Spring resetting force with piston rod in retracted position | 4N | Cushioning | Elastic cushioning rings/pads at both ends |
| Mounting position | Any | Mode of operation | Pushing Single-acting |
| Structural design | Piston Piston rod | Position sensing | None |
| Symbol | 00991730 | Operating pressure | 21.75psi 145psi |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20°C 80°C | Theoretical force at 6 bar, advancing | 61N |
| Moving mass | 4.4g | Product weight | 19g |
| Type of mounting | Optionally: With through-hole With accessories | Pneumatic connection | M5 |
| Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy Anodized |
| Seals material | NBR TPE-U(PU) | Housing material | Wrought aluminum alloy Anodized |
| Piston rod material | High-alloy steel | Manufacturer ID | 188082 |
Specifications may be subject to change without notice
