Product Model
aevc-10-5-p
Key Features

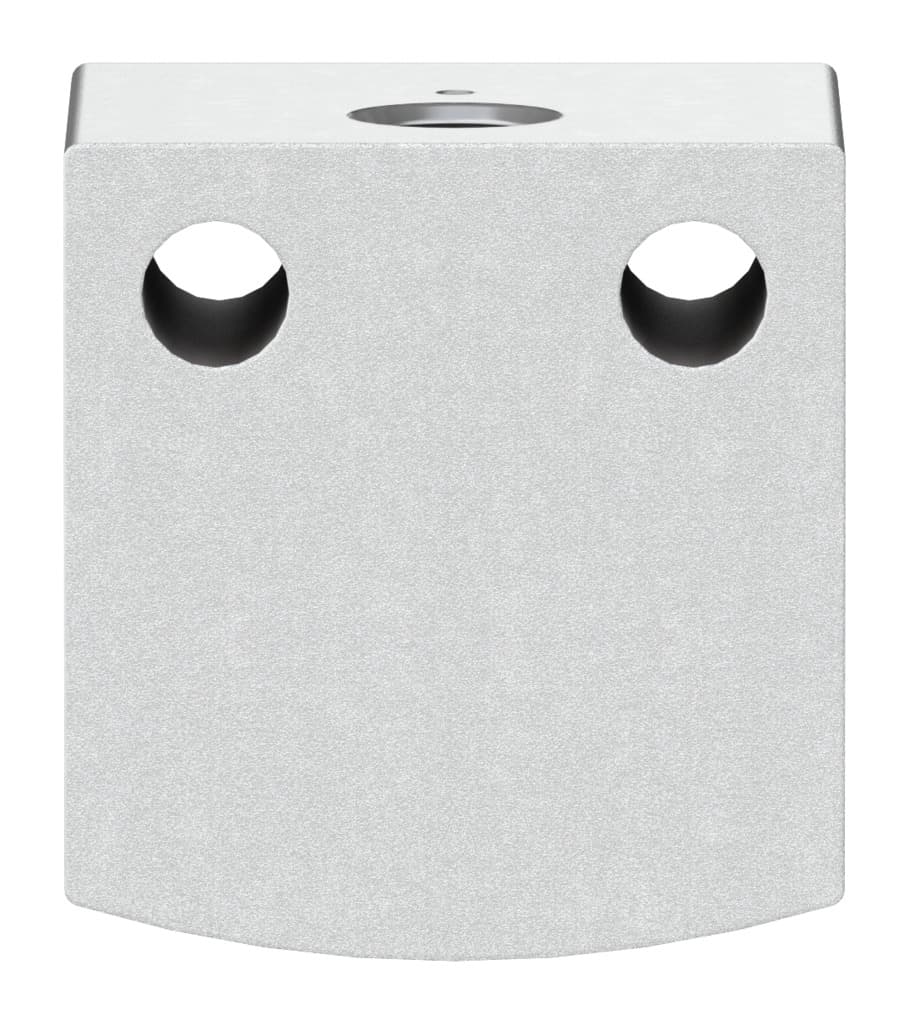

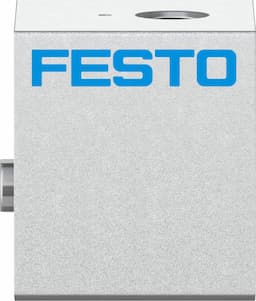

- 1The Festo AEVC-10-5-P short stroke cylinder is designed for precise and reliable pneumatic operations, making it ideal for various industrial applications.
- 2This cylinder features flexible cushioning rings/plates at both ends, ensuring smooth and controlled movement.
- 3With a piston diameter of 10 mm and a stroke length of 5 mm, the AEVC-10-5-P offers compact design and high precision.
- 4The cylinder operates within a temperature range of -20°C to +80°C and supports operating pressures from 1.5 to 8 bar.
- 5The AEVC-10-5-P is constructed with high-quality materials, including wrought aluminum alloy for the housing and high-alloy steel for the piston rod, ensuring durability and corrosion resistance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 5mm | Piston diameter | 10 mm |
| Spring resetting force with piston rod in retracted position | 3N | Cushioning | Elastic cushioning rings/pads at both ends |
| Mounting position | Any | Mode of operation | Pushing Single-acting |
| Structural design | Piston Piston rod | Position sensing | None |
| Symbol | 00991730 | Operating pressure | 21.75psi 116psi |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20°C 80°C | Theoretical force at 6 bar, advancing | 43N |
| Moving mass | 2g | Product weight | 14g |
| Type of mounting | Optionally: With through-hole With accessories | Pneumatic connection | M5 |
| Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy Anodized |
| Seals material | NBR TPE-U(PU) | Housing material | Wrought aluminum alloy Anodized |
| Piston rod material | High-alloy steel | Manufacturer ID | 188070 |
Specifications may be subject to change without notice
