Product Model
aevc-10-10-p
Key Features

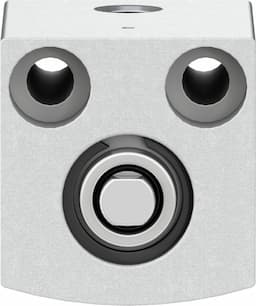

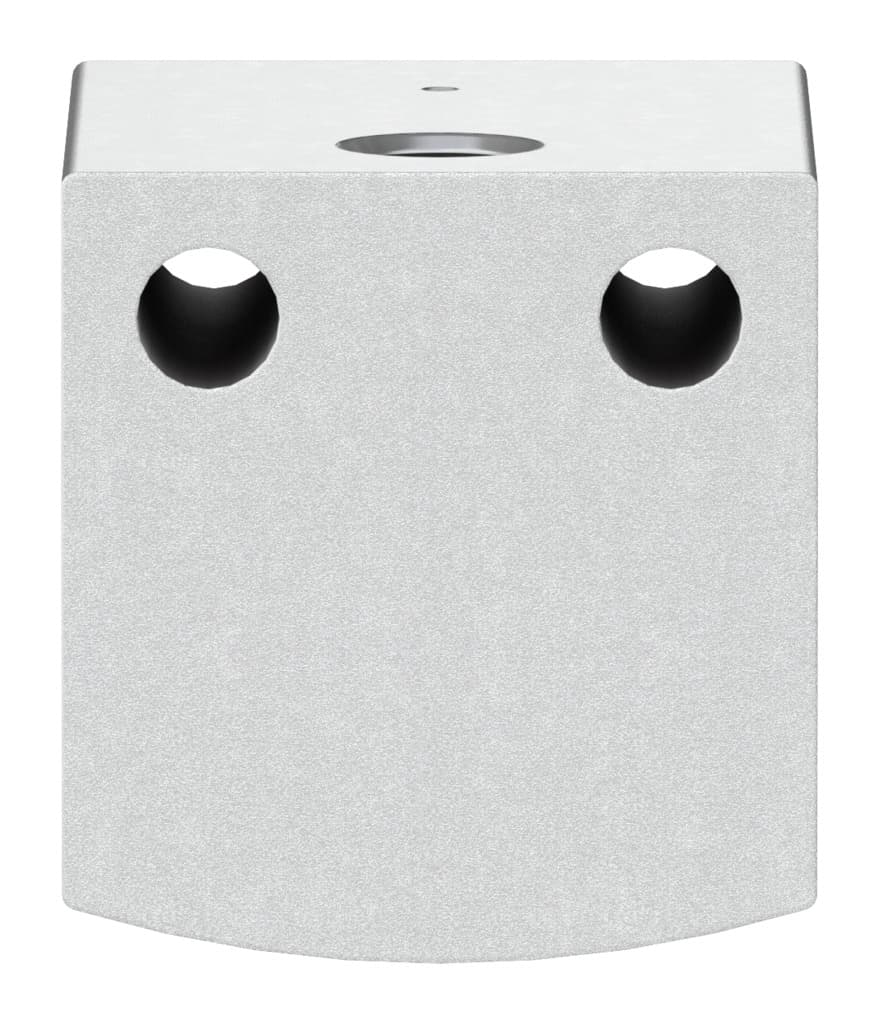

- 1The Festo AEVC-10-10-P short-stroke cylinder is engineered for precise and reliable operation, ensuring consistent performance in various pneumatic applications.
- 2With a stroke length of 10 mm, this cylinder offers a compact design that fits seamlessly into tight spaces, making it ideal for space-constrained environments.
- 3Equipped with elastic cushioning rings/pads at both ends, the AEVC-10-10-P provides smooth operation and reduces wear and tear on the cylinder.
- 4Available for mounting via through-hole or accessories, the AEVC-10-10-P offers flexibility in installation, allowing for easy integration into different systems.
- 5Classified as CRC 1, the AEVC-10-10-P exhibits low corrosion stress, ensuring durability and longevity in various operating conditions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 10mm | Piston diameter | 10 mm |
| Spring resetting force with piston rod in retracted position | 3N | Cushioning | Elastic cushioning rings/pads at both ends |
| Mounting position | Any | Mode of operation | Pushing Single-acting |
| Structural design | Piston Piston rod | Position sensing | None |
| Symbol | 00991730 | Operating pressure | 21.75psi 116psi |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20°C 80°C | Theoretical force at 6 bar, advancing | 41N |
| Moving mass | 2.6g | Product weight | 21g |
| Type of mounting | Optionally: With through-hole With accessories | Pneumatic connection | M5 |
| Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy Anodized |
| Seals material | NBR TPE-U(PU) | Housing material | Wrought aluminum alloy Anodized |
| Piston rod material | High-alloy steel | Manufacturer ID | 188071 |
Specifications may be subject to change without notice
