Product Model

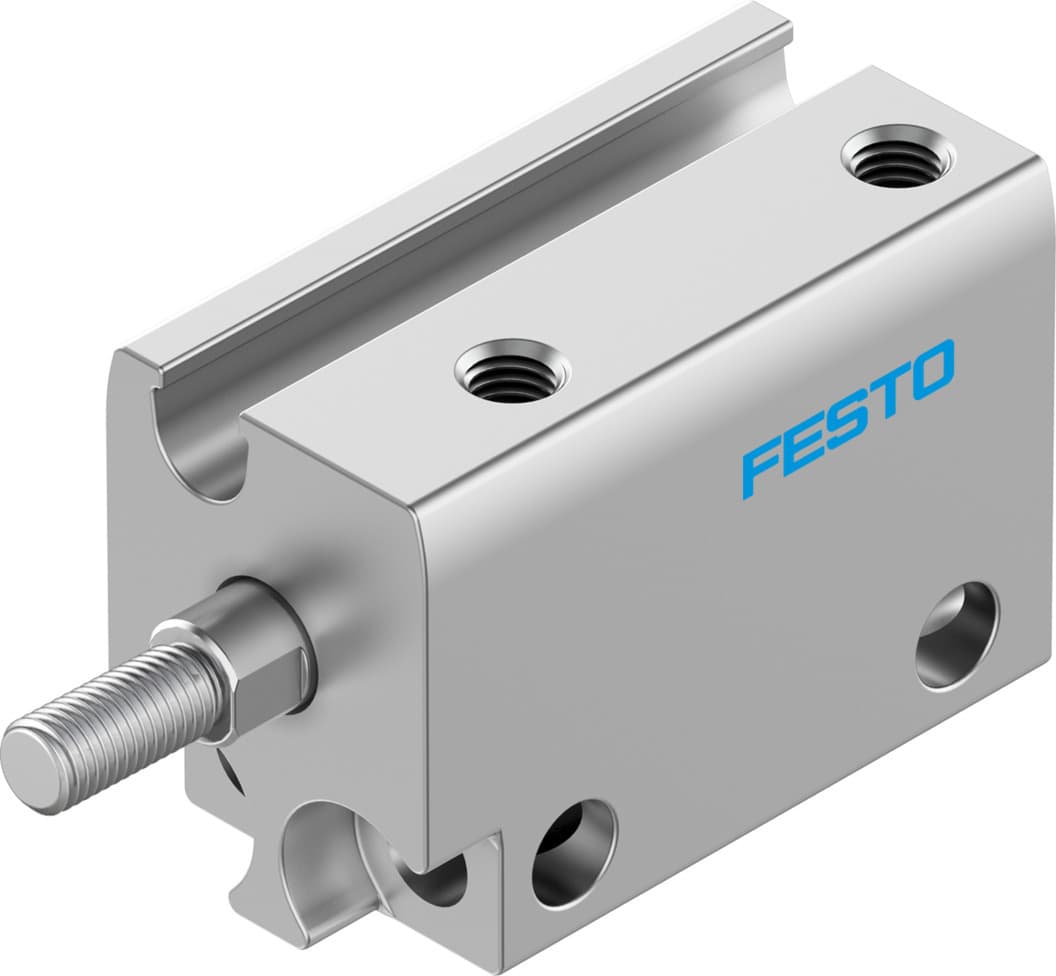

aen-s-6-10-a-a
Key Features
- 1Designed for precise control with a 10mm stroke and 6mm piston diameter.
- 2Classified as CRC 1, ensuring durability in various environments.
- 3Operates between -10°C to 60°C, making it versatile for different applications.
- 4Compatible with compressed air according to ISO 8573-1:2010, with lubricated operation possible.
- 5Mounts via through-hole with M3 pneumatic connection, simplifying installation processes.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 10mm | Piston diameter | 6 mm |
| Cushioning | No cushioning | Mounting position | Any |
| Mode of operation | Pushing | Piston rod end | External thread |
| Structural design | Piston Piston rod | Position sensing | For proximity sensor |
| Symbol | 00991201 | Variants | Piston rod at one end |
| Operating pressure | 2.5bar 8bar | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | -10°C 60°C |
| Impact energy in the end positions | 0.006J | Theoretical force at 6 bar, retracting | 4N |
| Theoretical force at 6 bar, advancing | 13N | Moving mass | 2.4g |
| Product weight | 15g | Type of mounting | With through-hole |
| Pneumatic connection | M3 | Note on materials | RoHS-compliant |
| Cover material | Wrought aluminum alloy | Material of dynamic seals | NBR TPE-U(PU) |
| Housing material | Wrought aluminum alloy Anodized | Piston rod material | High-alloy stainless steel |
| Manufacturer ID | 8080592 |
Specifications may be subject to change without notice
