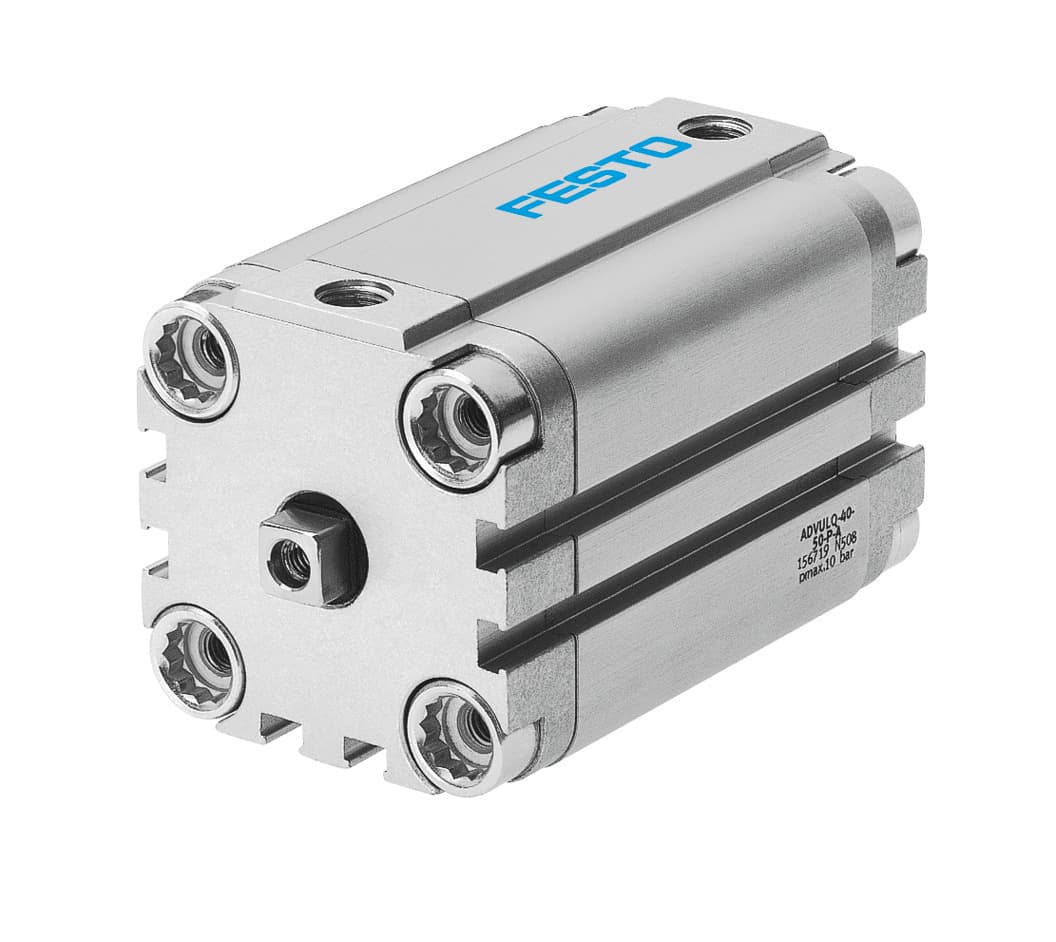

Product Model
advulq-80- -p-a
Key Features
- 1The Festo ADVULQ-80-80-A-P-A features a compact design, making it suitable for a variety of industrial applications where space is limited.
- 2This cylinder operates double-acting, allowing for both extension and retraction strokes, enhancing its versatility in different operational scenarios.
- 3Equipped with flexible cushioning rings/plates at both ends, it provides smooth operation and reduces wear and tear on the cylinder.
- 4Designed for proximity sensing, this cylinder ensures precise position detection, enhancing the accuracy of your industrial processes.
- 5Constructed from high-alloy steel for the piston rod and wrought aluminum alloy for the cylinder barrel, it offers durability and resistance to corrosion.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 1mm 400mm | Piston diameter | 80 mm |
| Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
| Mode of operation | Double-acting | Piston rod end | Internal thread |
| Structural design | Piston Piston rod | Position sensing | For proximity sensor |
| Symbol | 00991217 | Variants | Piston rod at one end |
| Protection against torsion/guide | Square piston rod | Operating pressure | 14.5psi 145psi |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20°C 80°C | Impact energy in the end positions | 0.75J |
| Theoretical force at 6 bar, retracting | 2827N | Theoretical force at 6 bar, advancing | 3016N |
| Moving mass at 0?mm stroke | 307g | Additional moving mass per 10?mm stroke | 25g |
| Basic weight with 0?mm stroke | 1772g | Additional weight per 10?mm stroke | 168g |
| Type of mounting | Optionally: With through-hole With accessories | Pneumatic connection | G1/8 |
| Flange screws material | Steel, galvanized | Cover material | Wrought aluminum alloy |
| Material of dynamic seals | NBR TPE-U(PU) | Piston rod material | High-alloy steel |
| Material of cylinder barrel | Wrought aluminum alloy | Manufacturer ID | 156108 |
Specifications may be subject to change without notice
