Product Model

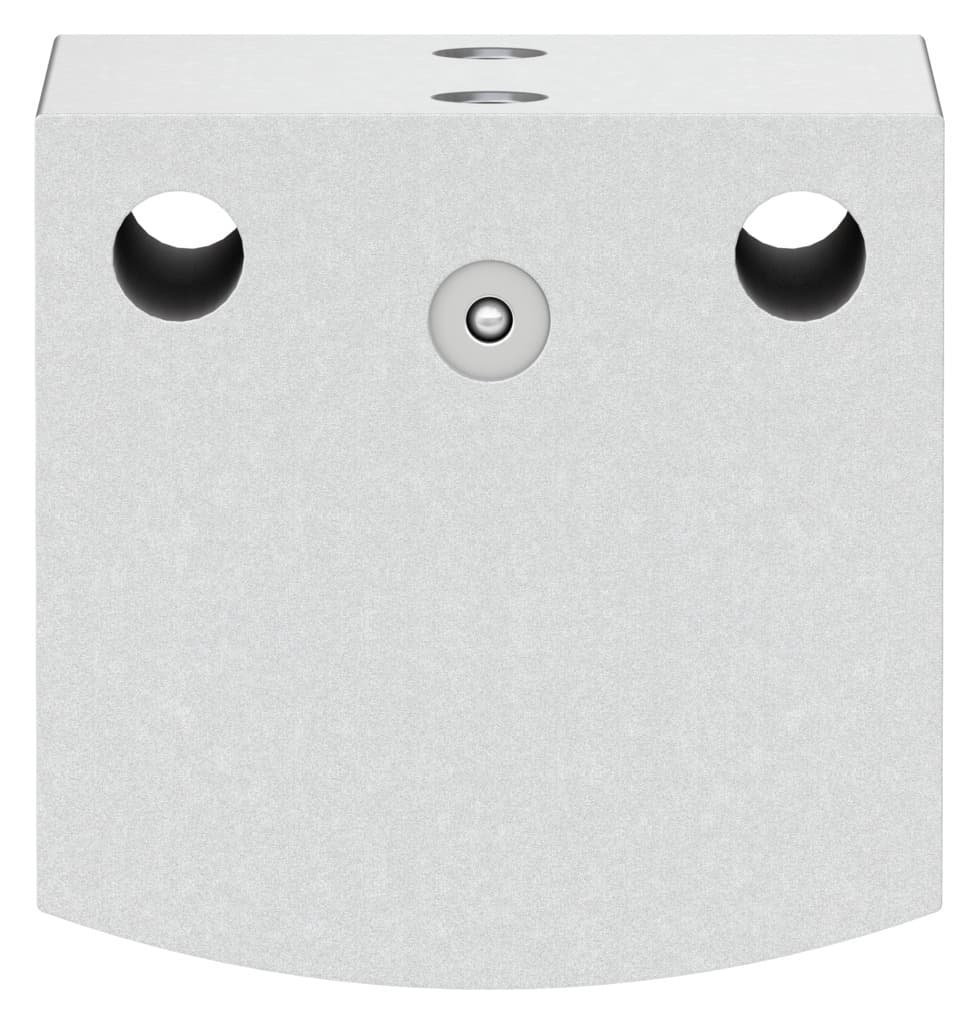

advc-25-10-a-p
Key Features
- 110 mm stroke and 25 mm piston diameter for efficient space utilization.
- 2Enables both extension and retraction strokes, enhancing versatility.
- 3Elastic cushioning rings/plates at both ends for smooth operation.
- 4Low corrosion stress (CRC 1) ensures durability in various environments.
- 5Compatible with compressed air (1-10 bar) and ambient temperatures (-20°C to 80°C).
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 10mm | Piston diameter | 25 mm |
| Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
| Mode of operation | Double-acting | Structural design | Piston Piston rod |
| Position sensing | None | Symbol | 00991227 |
| Operating pressure | 14.5psi 145psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 80°C |
| Theoretical force at 6 bar, retracting | 247N | Theoretical force at 6 bar, advancing | 295N |
| Moving mass | 30g | Moving mass at 0?mm stroke | 24g |
| Additional moving mass per 10?mm stroke | 6g | Product weight | 116g |
| Basic weight with 0?mm stroke | 88g | Additional weight per 10?mm stroke | 28g |
| Type of mounting | Optionally: With through-hole With accessories | Pneumatic connection | M5 |
| Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy Anodized |
| Seals material | NBR TPE-U(PU) | Housing material | Wrought aluminum alloy Anodized |
| Piston rod material | High-alloy steel | Manufacturer ID | 188188 |
Specifications may be subject to change without notice
